| Country of Origin | India |
|---|---|
| Diameter | 1.59mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT41FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT41 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 100mA |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100nA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 750mA |
| Maximum Forward Voltage Vf | 1V |

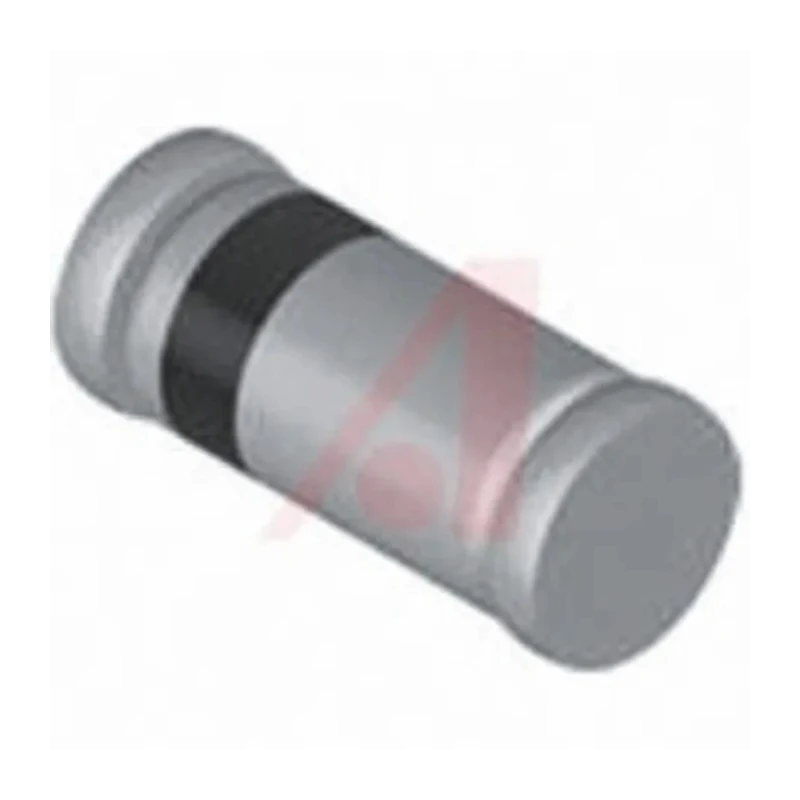

STMicroelectronics TMMBAT41FILM is a surface mount Schottky diode designed for efficient power rectification with a maximum continuous forward current of 100 mA and maximum repetitive reverse voltage of 100 V. It utilizes a MiniMELF package that offers a compact form factor suitable for modern PCB layouts.
This diode features a low typical forward voltage drop of 1 V which contributes to lower power dissipation and improved energy efficiency in circuits. Its wide operating temperature range from -65°C to 125°C allows it to be used in demanding industrial and automotive environments. The component is configured as a single diode with two pins, maintaining a minimal footprint.
The TMMBAT41FILM diode offers excellent surge tolerance with a peak non-repetitive forward surge current rating of 750 mA. It also demonstrates extremely low leakage current with a peak reverse current of only 100 nA, enhancing system reliability in sensitive electronic designs.
Physical dimensions include a length of 3.4 mm, height of 1.62 mm, diameter of 1.59 mm, and width of 1.62 mm, making it compatible with automated handling and placement equipment. Compact MiniMELF package suitable for surface mounting.
Continuous forward current rating of 100 mA. Low forward voltage drop of 1 V for high efficiency. Peak reverse repetitive voltage of 100 V ensuring blocking capability. Operating temperature range from -65°C to 125°C. Peak non-repetitive forward surge current of 750 mA.
Single diode configuration with 2 pins. Minimal leakage current of 100 nA peak reverse current. Compact physical dimensions for PCB integration. Suitable for power and efficiency sensitive electronic applications in industrial and automotive fields.
This Schottky diode is widely used in electronic components, power supply circuits, rectifiers, and general semiconductor applications where efficient and reliable diode operation is critical. Its rugged design and thermal tolerance make it an excellent choice for both commercial and industrial electronic assembly.
