| Country of Origin | India |
|---|---|
| Diameter | 1.5mm |
| Brand | STMicroelectronics |
| Height | 1.62mm |
| Length | 3.4mm |
| Model | TMMBAT48FILM |
| Width | 1.62mm |
| Mount Type | Surface |
| Series | TMMBAT48 |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniMELF |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 350mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 25μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 7.5A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 10ns |

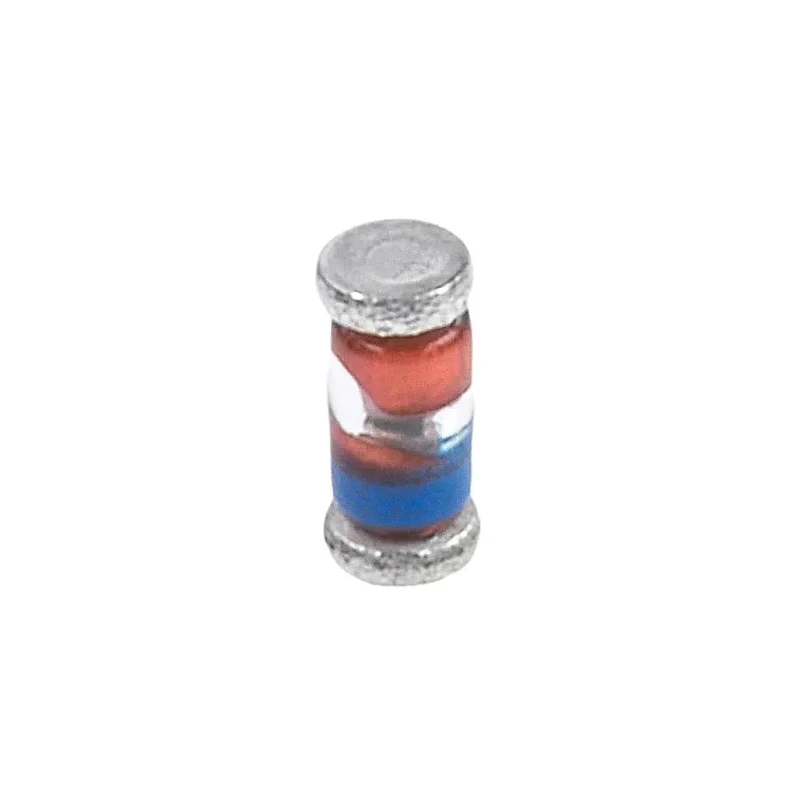

STMicroelectronics TMMBAT48FILM is a high-efficiency Schottky diode with a maximum continuous forward current of 350 mA and peak reverse voltage rating of 40 V, provided in a compact 2-pin MiniMELF surface mount package. This diode offers excellent electrical characteristics including a low forward voltage drop of 1 V and fast switching with a peak reverse recovery time of 10 ns, making it suitable for high-speed rectification tasks.
The diode supports transient surge currents up to 7.5 A, ensuring robustness under surge conditions while maintaining reliable operation over a broad temperature range from -65°C to 125°C. Its compact dimensions (3.4 mm length, 1.62 mm width and height, and 1.5 mm diameter) allow for dense PCB layouts in industrial, consumer electronics, and power supply applications.
STMicroelectronics TMMBAT48FILM complies with RoHS environmental standards, emphasizing sustainability alongside superior electronic performance. Its single diode configuration and MiniMELF package type optimize installation convenience and circuit efficiency.
The diode is ideal for use in power rectification, voltage clamping, and high-frequency switching circuits in industrial and electronic manufacturing sectors. Well suited for applications requiring efficient conversion and low power loss, such as power adapters, DC-DC converters, and solar inverters.
Compact form factor supports miniaturized electronic devices and high-density PCB designs. Robust electrical ratings guarantee reliability in harsh electrical and thermal conditions. RoHS compliance ensures environmentally responsible manufacturing and disposal.
Explore more semiconductor components like this Schottky diode at EnvMart for your professional electronics design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
