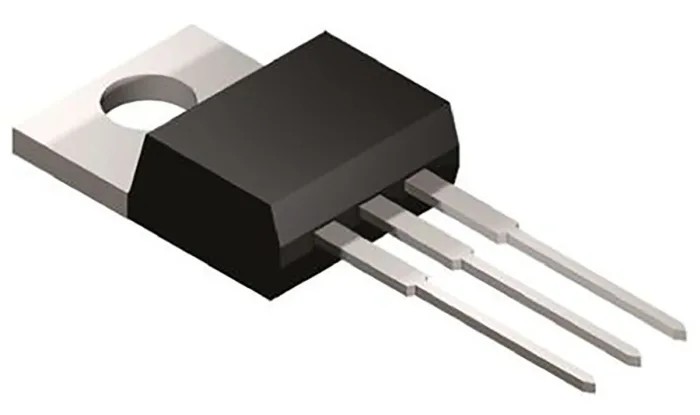

STMicroelectronics 600 V 8 A Diode Switching 3-Pin TO-220AB STTH806TTI

STMicroelectronics STTH806TTI is a high-performance switching diode housed in a 3-pin TO-220AB package, suitable for discrete semiconductor applications requiring fast switching capabilities and durable operation.

This device sustains a maximum continuous forward current of 8 A and features a peak reverse repetitive voltage rating of 600 V, making it ideal for power rectification and voltage regulation in high-efficiency circuits.

The diode provides a swift peak reverse recovery time of just 30 nanoseconds, which minimizes switching losses and enhances circuit responsiveness, critical in power management, automation, and electronic manufacturing fields.

With an impressive peak non-repetitive forward surge current of 80 A, the STTH806TTI handles sudden surges effectively, protecting sensitive electronics from transient conditions.

Operating reliably across a broad temperature range from -65°C to 150°C, it supports diverse industrial applications including automotive electronics, power supplies, and embedded controllers.

The compact physical footprint (9.15 mm height, 4.6 mm width, 10.4 mm length) ensures efficient PCB space utilization and facilitates straightforward integration into complex assemblies.

Its low peak reverse leakage current of 10μA contributes to energy efficiency and stable operation over extended use. This diode is an essential component for engineers and designers working across electronics, industrial automation, manufacturing, and HVAC control systems.

This diode features a 3-pin TO-220AB package ensuring robust mechanical mounting. It supports a maximum continuous forward current of 8 amperes for reliable operation. Peak reverse repetitive voltage is rated at 600 volts providing strong voltage resistance.

The peak non-repetitive forward surge current of 80 amperes ensures transient load handling. It offers a fast peak reverse recovery time of 30 nanoseconds enhancing switching efficiency. Operating temperature range spans from -65°C up to a maximum of 150°C for durability under extremes.

The device has a maximum forward voltage drop of 3.6 volts during conduction. Physical dimensions are compact with a height of 9.15 mm, width of 4.6 mm, length of 10.4 mm, and diameter of 3.75 mm. It has a low peak reverse leakage current of 10 microamperes minimizing power losses.
