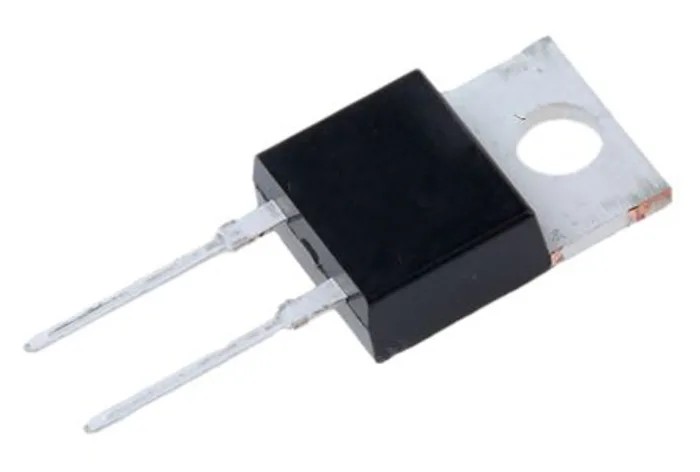

STMicroelectronics 200 V 20 A Through Hole Switching Diode TO-220AC STTH2002DI
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 9.02mm |
| Length | 10.45mm |
| Model | STTH2002DI |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | STTH2002 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 175A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 40ns |
| Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand | Infineon |
Key Features
- Designed for high continuous forward current of 20 amperes.
- Supports peak reverse repetitive voltage of 200 volts.
- Features a single diode configuration with 2 pins for through hole mounting.
- Maximum forward voltage drop is 1.15 volts for efficient switching.
- Peak non-repetitive forward surge current can handle up to 175 amperes.
- Fast peak reverse recovery time of 40 nanoseconds ensures quick switching performance.
- Operates reliably over temperatures from -65°C to 175°C.
- Compact TO-220AC package with dimensions suitable for PCB mounting.
Product Description
STMicroelectronics STTH2002DI is a high-performance switching diode designed for demanding electronic applications requiring reliable rectification and switching at elevated currents and voltages.
Featuring a maximum continuous forward current of 20 amperes and peak repetitive reverse voltage of 200 volts, this diode is suitable for robust power electronics and industrial circuits.
The device uses a single diode configuration with 2 pins and is housed in a TO-220AC package that ensures durability and straightforward through hole mounting on printed circuit boards.
The STTH2002DI delivers a low forward voltage drop of 1.15 volts and fast peak reverse recovery speed of 40 nanoseconds, enabling efficient high-speed rectification tasks in switching power supplies and related industrial systems.
This diode operates efficiently in environments with ambient temperatures ranging from -65°C to 175°C, ensuring adaptability to harsh industrial, automotive, and consumer electronics use cases.
Compact physical dimensions of approximately 10.45 mm length, 9.02 mm height, 4.82 mm width, and 3.75 mm diameter facilitate integration in space-constrained PCB layouts. It conforms to RoHS compliance standards, supporting green manufacturing initiatives.
Designed for high continuous forward current of 20 amperes. Supports peak reverse repetitive voltage of 200 volts. Single diode configuration with 2 pins for through hole mounting. Maximum forward voltage drop of 1.15 volts for energy-efficient performance.
Handles peak non-repetitive forward surge current up to 175 amperes. Fast peak reverse recovery time of 40 nanoseconds for switching applications. Wide operating temperature range from -65°C to 175°C. Compact TO-220AC package for easy PCB integration.
RoHS compliant for environmental safety. This semiconductor switching diode is ideal for industrial electronics, power management systems, automotive electronics, and high frequency rectification tasks. Explore more high-quality semiconductor devices and components on EnvMart’s Electronics & Electrical catalog.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the STMicroelectronics STTH2002DI is 20 amperes.
This model supports a peak reverse repetitive voltage of 200 volts.
The diode is housed in a TO-220AC package, which is suitable for through hole mounting.
The maximum forward voltage drop for this unit is 1.15 volts.
It can handle a peak non-repetitive forward surge current of up to 175 amperes.
The peak reverse recovery time for this diode is 40 nanoseconds.
It operates reliably over a temperature range from -65°C to 175°C.
The diode has dimensions of approximately 10.45 mm in length, 9.02 mm in height, 4.82 mm in width, and a diameter of 3.75 mm.
This model features a single diode configuration with 2 pins.
Yes, the STTH2002DI conforms to RoHS compliance standards.
This diode is classified as a switching rectifier.
It is suitable for industrial electronics, power management systems, automotive electronics, and high frequency rectification tasks.
