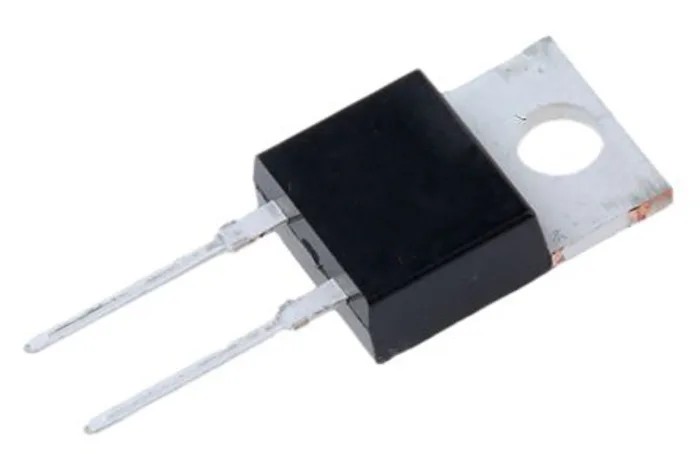

STMicroelectronics 200 V 15 A Diode Switching 2-Pin TO-220AC STTH1502DI
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 9.02mm |
| Length | 10.45mm |
| Model | STTH1502DI |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | STTH1502 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 15A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 36ns |
Key Features
- Designed for through-hole mounting in TO-220AC package type.
- Maximum forward voltage of 1.3V ensuring efficient rectification.
- Peak non-repetitive forward surge current of 150A for overload tolerance.
- Wide operating temperature range from -65°C to 175°C for robust performance.
- Low peak reverse recovery time of 36ns supporting high-speed switching applications.
- RoHS compliant, ensuring environmentally friendly manufacturing.
Product Description
STMicroelectronics STTH1502DI is a high-performance switching diode designed in a TO-220AC package for through-hole mounting. It features a maximum continuous forward current rating of 15 amperes and a peak reverse repetitive voltage of 200 volts, making it suitable for power rectification in various industrial and electronic applications.
This diode delivers efficient switching performance with a low forward voltage drop of 1.3 volts and a peak reverse recovery time of 36 nanoseconds. Its robust construction supports peak non-repetitive forward surge currents up to 150 amperes, providing reliable transient handling capability.
The device operates across a broad temperature range from -65°C to 175°C, ensuring reliable use in demanding environments. Its compact dimensions (height 9.02 mm, length 10.45 mm, width 4.82 mm, and diameter 3.75 mm) allow for space-saving layouts in electronic circuits.
STTH1502DI is RoHS compliant in accordance with environmental standards, supporting sustainable manufacturing practices.
This diode type is commonly used in power rectification, switching power supplies, inverter circuits, and other industrial electronics where reliable fast switching and high current ratings are required. Its 2-pin configuration simplifies integration in through-hole printed circuit board designs.
Designed for through-hole mounting in TO-220AC package. 15A maximum continuous forward current rating. 200V peak reverse repetitive voltage. Low forward voltage of 1.3V ensuring efficiency. Fast recovery time of 36ns for switching applications.
Wide temperature range from -65°C to 175°C. RoHS compliant for eco-friendly usage. Explore more semiconductor and diode products for industrial, manufacturing, and electronic engineering applications at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of the STMicroelectronics STTH1502DI is 15 amperes.
This diode has a peak reverse repetitive voltage of 200 volts.
The maximum forward voltage drop for this diode is 1.3 volts, ensuring efficient rectification.
It supports a peak non-repetitive forward surge current of 150 amperes, providing reliable transient handling capability.
The STTH1502DI operates across a wide temperature range from -65°C to 175°C.
The peak reverse recovery time is 36 nanoseconds, which supports high-speed switching applications.
This diode has a height of 9.02 mm, length of 10.45 mm, width of 4.82 mm, and a diameter of 3.75 mm.
The STTH1502DI features a 2-pin configuration, simplifying integration into through-hole printed circuit board designs.
It is designed for through-hole mounting in a TO-220AC package type.
Yes, this diode is RoHS compliant, supporting environmentally friendly manufacturing practices.
This diode is commonly used in power rectification, switching power supplies, and inverter circuits.
The STTH1502DI is classified as a switching rectifier, suitable for various industrial and electronic applications.
