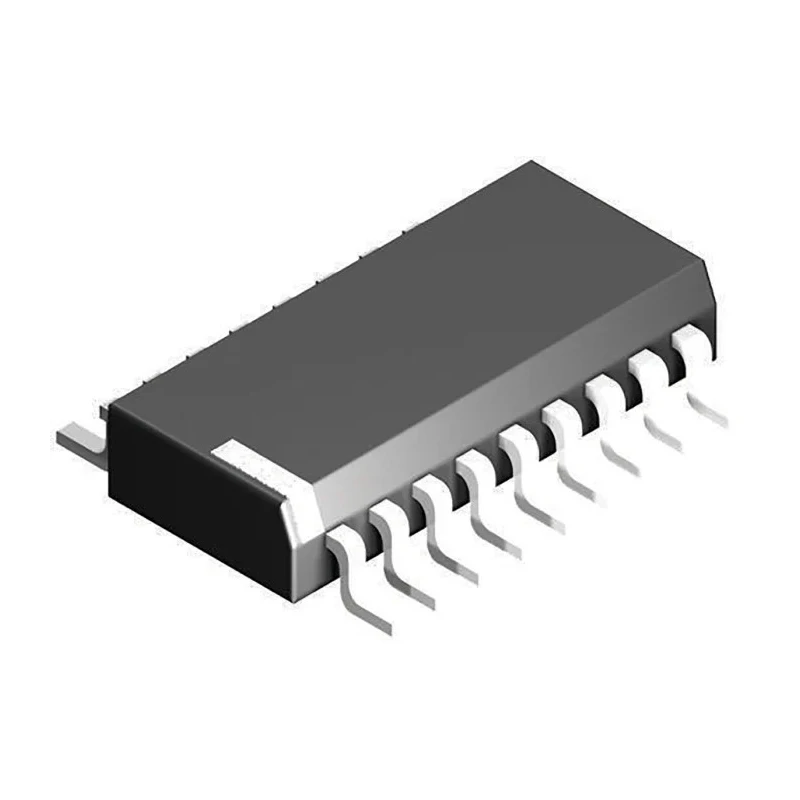

Toshiba High Side 8-Channel Power Switch IC, 18-Pin SOP, 25V Maximum Supply Voltage TBD62083AFG(Z,EL)

Toshiba TBD62083AFG(Z,EL) is a high-side 8-channel power switch integrated circuit in an 18-pin SOP package designed for surface mount applications. It supports a maximum supply voltage of 25V and has a low operating current of 100μA, making it suitable for efficient power management in electronic circuits.

This device features octal N-channel MOSFET drivers with built-in clamping diodes and common ground and supply pins. The inputs are designed to be compatible with low voltage driving sources, facilitating easy control in various electronic assemblies. It is ideal for driving multiple resistive or inductive loads such as relays and motors.

Operating temperature range from -40°C to 85°C allows for stable performance in industrial, electronic manufacturing, and power management applications. The device does not have automotive standard certification, so it is more suited for general industrial electronics rather than automotive-specific systems.

The SOP package with 18 pins supports easy PCB layout and integration, reducing footprint. Manufactured in Japan, the product adheres to high-quality standards expected in semiconductor components.

This power switch IC can be used extensively in power supply designs, relay drivers, and multiple load control systems within industrial, laboratory, HVAC, manufacturing, and electronic equipment sectors.

Octal N-channel MOSFET drivers with clamping diodes ensure protection and stability. Compatible input levels facilitate broad application usage. Low operating current reduces overall power consumption. Wide operating temperature supports diverse environmental conditions.

18-pin SOP package optimizes PCB space and mounting ease. Ideal for use in power management IC assemblies and relay driver circuits. Manufactured under high standards in Japan for reliable performance. Explore the range of Power Switch ICs at EnvMart for comprehensive PCB component solutions.
