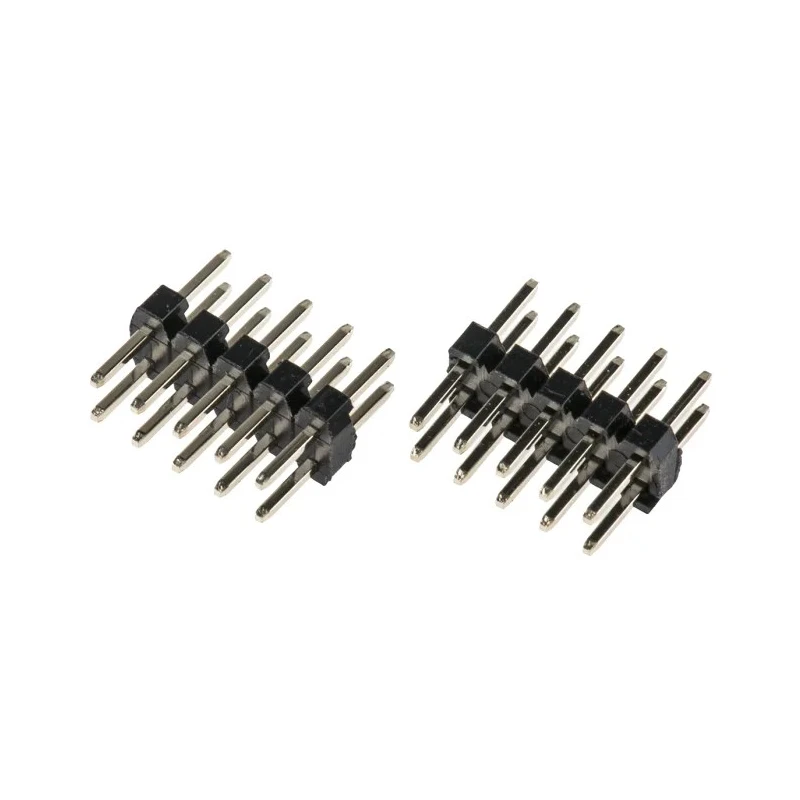

HARWIN M22 Series Straight Through Hole Pin Header, 10 Contacts, 2 mm Pitch, 2 Row, Unshrouded M22-2020505
Specifications
| Country of Origin | India |
|---|---|
| Brand | HARWIN |
| Orientation | Straight |
| Current | 1A |
| Model | M22-2020505 |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | M22 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3.4mm |
| Mating Pin Length | 3.5mm |
Key Features
- Features a durable nylon housing suitable for reflow soldering processes.
- Phosphor bronze male contacts plated with gold ensure excellent conductivity.
- Mating pin length is 3.5 mm with tail pin length of 3.4 mm for reliable connections.
- Supports current rating of 1A and operates between -40°C and 105°C.
- Designed for through hole mounting with straight orientation and unshrouded design.
- Can be cut to size due to castellated housing design for flexible applications.
- Compatible with M22 series PCB sockets, housings, and jumpers for versatile use.
Product Description
HARWIN M22-2020505 Series Straight Through Hole Pin Header is a high-quality electronic connector designed for PCB board-to-board applications. This connector features 10 male phosphor bronze contacts plated with gold to provide reliable and corrosion-resistant electrical connections. The header employs a durable nylon housing capable of withstanding reflow soldering, making it suitable for industrial manufacturing environments.
With a 2 mm pitch and two rows, the M22-2020505 model supports a nominal current of 1 ampere and is intended for use in demanding conditions ranging from -40°C to 105°C. The header uses a through hole mount type with a straight orientation, facilitating easy integration in embedded PCs, motherboards, and industrial electronic systems.
The design incorporates castellated housing allowing the header to be cut to desired sizes, providing flexibility in custom PCB layouts. The mating pin length of 3.5 mm and tail pin length of 3.4 mm ensure secure mechanical and electrical connections. This unshrouded pin header mates seamlessly with other M22 series components like PCB sockets, housings, and jumpers.
Applications for this M22 series header include consumer electronics, industrial monitoring, communications equipment, drives and controls, and large-scale electronic assemblies. Its robust material and precise manufacturing make it ideal for high-reliability electronics and industrial automation systems.
Features a durable nylon housing suitable for reflow soldering processes. Phosphor bronze male contacts plated with gold ensure excellent conductivity. Mating pin length is 3.5 mm with tail pin length of 3.4 mm for reliable connections.
Supports current rating of 1A and operates between -40°C and 105°C. Designed for through hole mounting with straight orientation and unshrouded design. Can be cut to size due to castellated housing design for flexible applications.
Compatible with M22 series PCB sockets, housings, and jumpers for versatile use. Explore our broad selection of high-quality PCB connectors and headers at EnvMart for your electronic component needs.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A.
It operates between -40°C and 105°C.
This header features 10 male contacts.
The connector has a 2 mm pitch and consists of 2 rows.
The contacts are made of phosphor bronze and are plated with gold, while the housing is made of nylon.
It is designed for through hole mounting with a straight orientation.
Yes, it features a castellated housing design that allows it to be cut to size for flexible applications.
The mating pin length is 3.5 mm, and the tail pin length is 3.4 mm.
Yes, it is compatible with M22 series PCB sockets, housings, and jumpers.
The termination type for this model is solder.
This model is suitable for applications in consumer electronics, industrial monitoring, communications equipment, drives and controls, and large-scale electronic assemblies.
The country of origin for this product is India.
