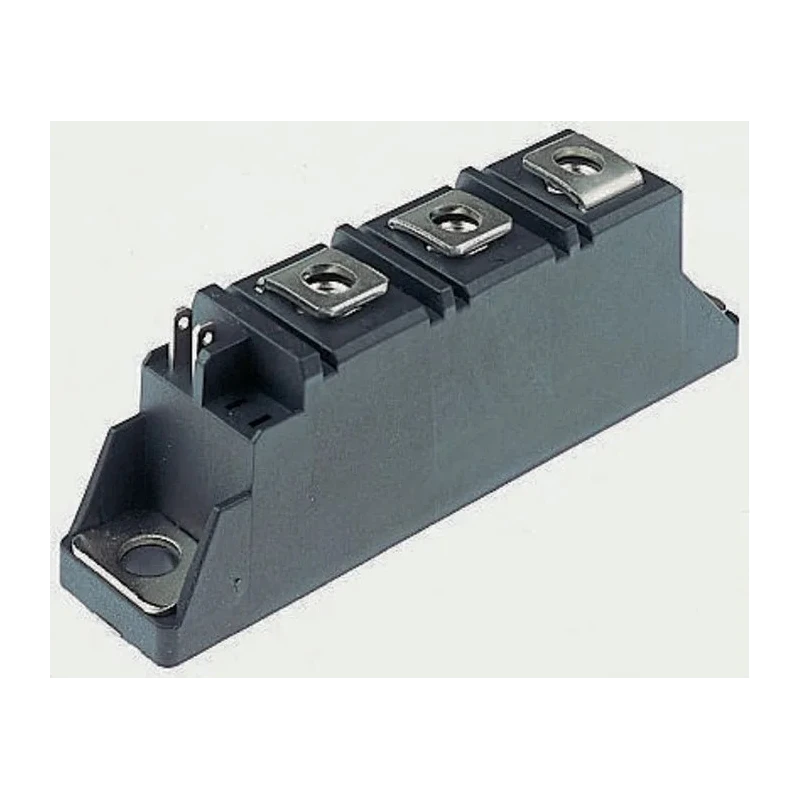

Vishay Standard Recovery Diode 1200 V 100 A 3-Pin TO-240 Package VS-VSKD91/12
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 35mm |
| Length | 92mm |
| Model | VS-VSKD91/12 |
| Width | 22.6mm |
| Mount Type | Panel |
| Series | VS-VSKD91 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-240 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 100A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Series |
| Rectifier Type | Recovery |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2.1kA |
| Maximum Forward Voltage Vf | 1.55V |
Key Features
- Designed for high-efficiency power diode applications.
- Standard recovery type suitable for various industrial uses.
- Operates reliably from -40°C to 150°C.
- Maximum forward voltage drop of 1.55 V ensures efficient conduction.
- Supports peak non-repetitive forward surge current up to 2.1 kA.
- Compact dimensions of 92 mm length, 35 mm height, and 22.6 mm width.
- Pin configuration includes 3 pins for easy panel mounting.
- Peak reverse current limited to 10 mA to minimize leakage losses.
Product Description
The Vishay VS-VSKD91/12 diode is a highly versatile and efficient standard recovery power diode designed for demanding industrial and electronic component applications. It features a robust TO-240 package with a 3-pin configuration, making it ideal for panel mounting in power circuits.
This diode withstands a maximum continuous forward current of 100 A and a peak reverse repetitive voltage rating of 1200 V, ensuring stable performance under high load conditions. It effectively manages peak non-repetitive forward surge currents up to 2.1 kA, suitable for transient surge protections.
Operating temperature ranges from -40°C to 150°C, ensuring reliability even in harsh environments. With a maximum forward voltage drop of 1.55 V, it minimizes conduction losses and enhances energy efficiency in power rectification and conversion tasks.
The compact physical dimensions of 92 mm length, 35 mm height, and 22.6 mm width enable integration into various power electronic setups including industrial machinery, HVAC systems, and semiconductor manufacturing equipment.
Designed for high-efficiency power diode applications. Standard recovery type suitable for various industrial uses. Operates reliably from -40°C to 150°C. Maximum forward voltage drop of 1.55 V ensures efficient conduction.
Supports peak non-repetitive forward surge current up to 2.1 kA. Compact package with 3-pin configuration for panel mounting. Low peak reverse current of 10 mA reduces leakage losses. Robust TO-240 package for durability in power circuits.
Applications include power electronics, manufacturing, and industrial controls.
This diode is a critical component in power rectifiers and switching circuits used in industrial, manufacturing, and electronic component industries. Its durable construction and superior electrical characteristics ensure long operational life and efficient power management.
Explore more Schottky diodes and rectifiers from Vishay to meet your power semiconductor needs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for the Vishay VS-VSKD91/12 diode is 100 A.
This diode has a peak reverse repetitive voltage rating of 1200 V.
It operates reliably within a temperature range of -40°C to 150°C.
The maximum forward voltage drop is 1.55 V, which helps in minimizing conduction losses.
The dimensions of the Vishay VS-VSKD91/12 are 92 mm in length, 35 mm in height, and 22.6 mm in width.
It can support a peak non-repetitive forward surge current of up to 2.1 kA.
This diode features a 3-pin configuration for easy panel mounting.
The Vishay VS-VSKD91/12 is housed in a TO-240 package type.
The peak reverse current is limited to 10 mA, which helps minimize leakage losses.
This model features a series diode configuration.
It is suitable for various industrial uses, including power electronics, manufacturing, and industrial controls.
The Vishay VS-VSKD91/12 diode is manufactured in India.
