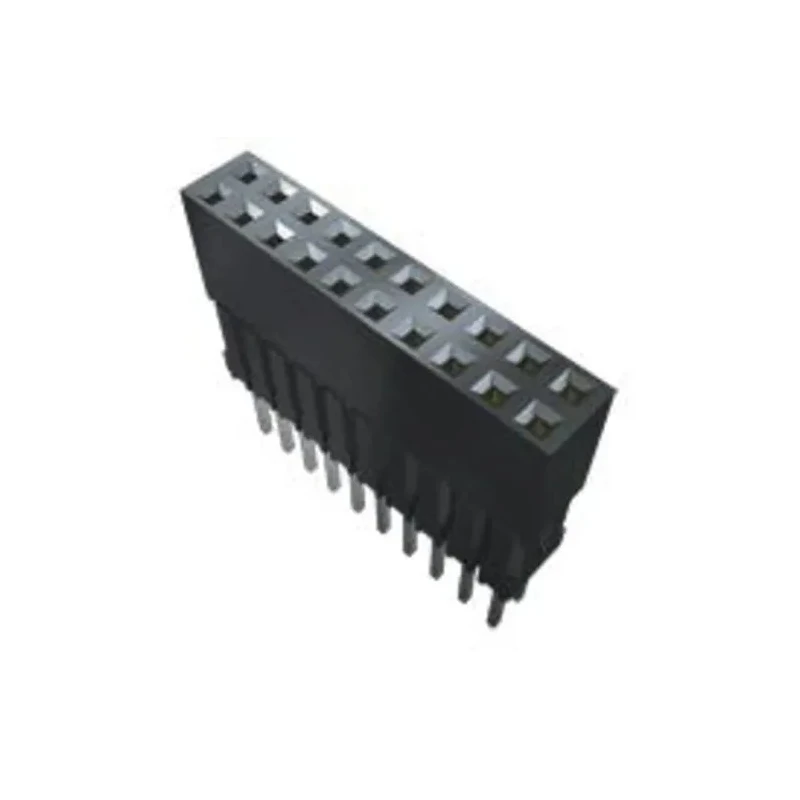

Samtec ESQ Series Straight Through Hole PCB Socket 40-Contact 2 Row 2.54 mm Pitch Solder ESQ-120-34-T-D

Samtec ESQ-120-34-T-D is a high-quality PCB Socket from the ESQ series, designed as a straight through hole connector featuring 40 contacts arranged in 2 rows with a standard 2.54 mm pitch. This connector is engineered for dependable board-to-board electrical connections in industrial, electronic manufacturing, and laboratory applications.

The socket uses black glass filled polyester for the housing, providing strong mechanical support and resistance against environmental factors. Bronze contact material with matt tin plating ensures excellent conductivity and corrosion resistance, suitable for long-term use. It supports a current of up to 23A and a voltage rating of 225V, making it capable of handling moderately high power electronic circuits.

Optimized for through-hole mounting with vertical orientation, the ESQ-120-34-T-D is easy to install on printed circuit boards. With operating temperatures ranging from -55°C to 105°C, the socket is suitable for use in harsh temperature environments common in industrial and commercial electronic systems.

The contact system includes Tiger Buy™ technology for secure, durable connections. This elevated socket strip features standard and low insertion force contacts with .025 inch (0.635 mm) square tails, tailored for PC/104 applications requiring reliable multi-pin interconnects.

Applications include industrial electronics, communication equipment, computing hardware, circuit board assembly, and other areas requiring precise and durable board-to-board connectors. The product complies with basic industry standards and caters to use cases demanding performance within the specified voltage, current, and temperature parameters.

Designed for high current carrying capacity of 23A ensuring robust performance. Constructed from black glass filled polyester housing for enhanced durability. Features bronze contacts plated with matt tin for corrosion resistance.

Mounting is through-hole with vertical orientation for easy integration. Operates reliably in temperatures ranging from -55°C to 105°C. Provides standard and low insertion force contacts with .025 inch (0.635 mm) square tails suited for PC/104 applications.

Supports 225V voltage rating suitable for a variety of electronic systems. Connector system is board-to-board with 2 rows accommodating up to 40 pins. Contact system utilizes Tiger Buy™ technology for secure connection. Specialized elevated socket strip sub-type to facilitate PCB mounting.

Explore a wide range of PCB Sockets and connectors with Samtec products at EnvMart to ensure reliable electrical connectivity for your industrial and electronic projects.
