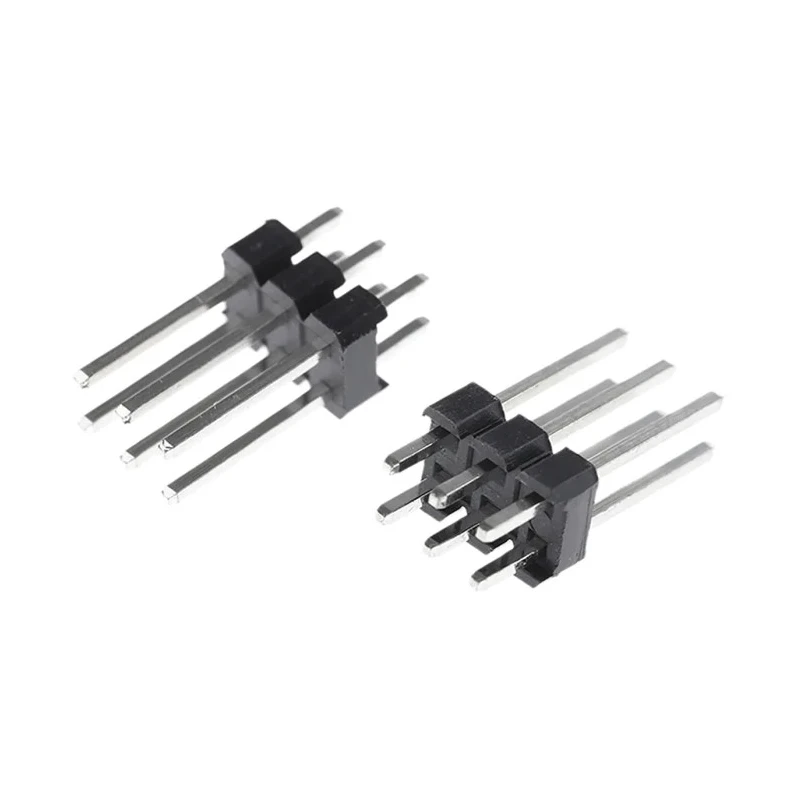

HARWIN M20 Series Straight Through Hole Pin Header, 6 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded M20-9970346

HARWIN M20-9970346 Straight Through Hole Pin Header is a high quality PCB connector designed for robust electronic interconnections. Featuring 6 male contacts arranged in 2 rows with a precise 2.54 mm pitch, this unshrouded header offers versatility for board-to-board and wire-to-board applications.

The housing is fabricated from durable nylon thermoplastic, enabling it to withstand the thermal demands of reflow soldering processes without degradation. Brass contact material with tin plating ensures effective electrical conductivity and protection against corrosion, making these headers suitable for long-term industrial and commercial use.

This connector supports operating temperatures from -40°C to 105°C, enabling stable performance across a wide range of environmental conditions typically encountered in embedded PCs, industrial controls, consumer electronics, and communication devices.

The through-hole mount type provides mechanically strong and reliable connections to PCBs. The tail pins measure 2.95 mm in length for secure soldering, while the mating pins extend to 8.51 mm to accommodate compatible socket connectors within the M20 series.

The unshrouded design facilitates straightforward inspection and mating procedures. Multiple configuration options in the M20 series allow designers to select from various pin counts and pin heights, ensuring flexibility for different design needs.

Features a 2.54 mm pitch spacing for precise PCB connection. Consists of 6 male contacts arranged in 2 rows for compact and reliable board-to-board or wire-to-board connections. Constructed with a nylon housing capable of withstanding reflow soldering temperatures.

Contacts made of brass with tin plating offer excellent electrical conductivity and corrosion resistance. Designed for through-hole mounting ensuring durable mechanical and electrical connections. Operates reliably within a temperature range of -40°C to 105°C.

The tail pin length measures 2.95 mm allowing secure solder termination. Provides a mating pin length of 8.51 mm for compatible connectors. Unshrouded design allows easy access for mating and inspection.

Widely used across industrial, commercial, and consumer electronics sectors, the HARWIN M20 series connectors are trusted for their ruggedness and design flexibility, particularly in embedded systems, motherboards, and electronic assembly applications.
