XP Power Switching Power Supply 15V DC 45W 264V AC ECS45US15

Free Delivery in India | Lowest Global Shipping Charges

XP Power Switching Power Supply 15V DC 45W 264V AC ECS45US15

Name: XP Power Switching Power Supply 15V DC 45W 264V AC ECS45US15
Brand: XP Power
SKU: 189739
Price: 61.93 USD
Availability: InStock



Category Switching Power Supply Brand XP Power Condition New

Specifications

Country of Origin	India
Brand	XP Power
Power	45W
Efficiency	90%
Length	76.2mm
Model	ECS45US15
Depth	20.6mm
Gross Weight	100g
Width	50.8mm
Mount Type	Chassis
Series	ECS
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Maximum Output Voltage	15V dc
SMPS Output Current	3A
Minimum Input Voltage	120, 80V dc

Key Features

This power supply features a single output with 3A current capacity.
It supports a wide operating temperature range from -20°C to 70°C.
The device is chassis mount type, offering compact dimensions of 76.2mm length, 50.8mm width, and 20.6mm depth.
Efficiency of this model is 90%, ensuring energy savings and low heat generation.
It has a low leakage current and consumes less than 0.3W in no-load conditions.
This power supply conforms to multiple standards including ANSI/AMMI ES 60601-1 and IEC 60950-1 certifications.
It is IT and medically approved, making it suitable for sensitive equipment.
Designed with convection cooling and low-profile form factor suitable for tight spaces.

Product Description

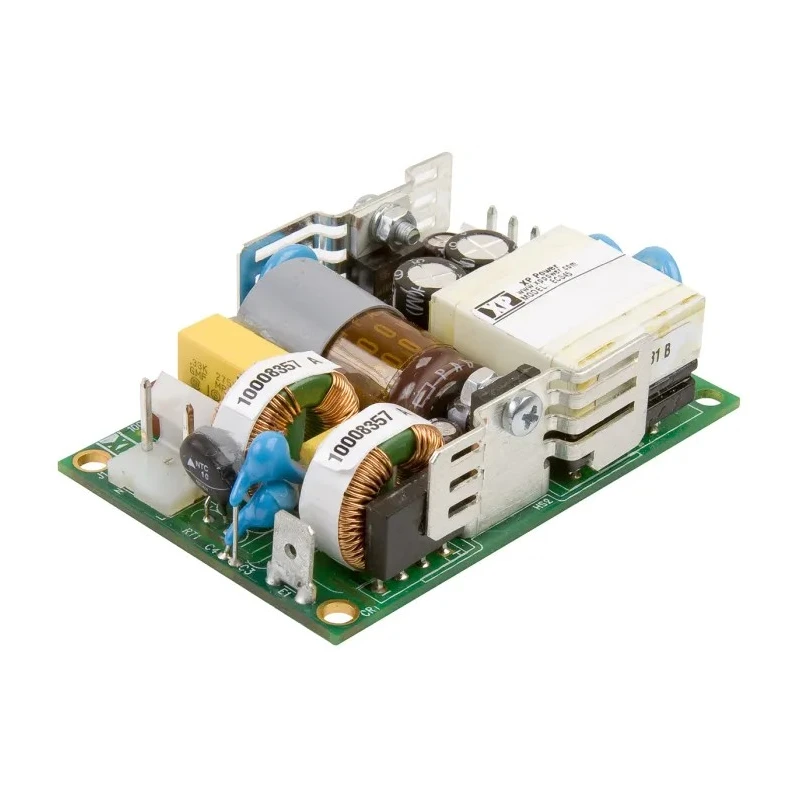

XP Power ECS45US15 is a compact 45W switching power supply designed for industrial and medical use, delivering 15V DC output with a maximum output current of 3A and accepting up to 264V AC input voltage.

This series features a small 2 x 3 inch footprint, and an ultra-low profile height of 0.95 inches, with chassis mounting for robust installation. Operating efficiently at 90%, it ensures minimal power loss and contributes to energy savings. Convection cooling allows silent operation without the need for fans.

Suitable for applications requiring low leakage current and less than 0.3W no-load input power, this power supply meets stringent safety and electromagnetic compatibility standards including ANSI/AMMI ES 60601-1, CSA 22.2 No. 60601-1, EN 55011/22 Level A/B, IEC 60601-1, and UL 60950-1.

Its operating temperature range from -20°C to +70°C makes it reliable in diverse environmental conditions. The unit’s compact size and low weight of 100g make it ideal for space-critical installations.

This single output power supply delivers 15V DC at 3A with high efficiency. Designed to international medical and IT safety standards. Compact chassis mount with dimensions 76.2 x 50.8 x 20.6 mm. High efficiency of 90% reduces energy costs and heat generation.

Low leakage current and low no-load power consumption improve safety and energy efficiency. Wide operating temperature range supports harsh industrial environments. Convection cooled for noise-free operation. Suitable for industrial, laboratory, medical, and HVAC applications.

Set includes XP Power ECS45US15 Switching Power Supply unit only. For further accessories and compatible power supplies, explore the Electronics & Electricals Power Supply & Distribution category at EnvMart.
