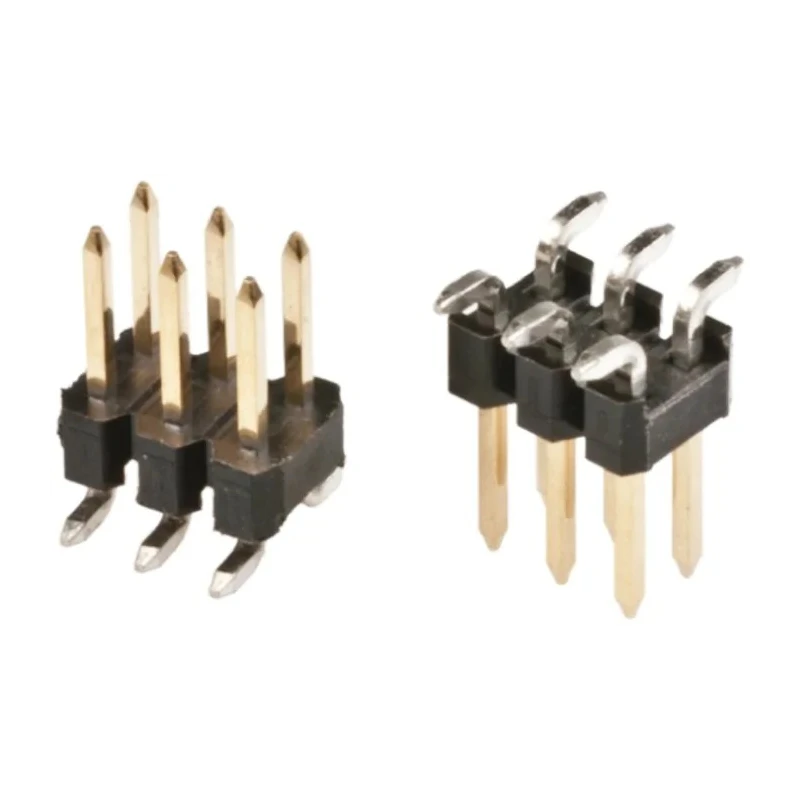

HARWIN M20 Series Straight Surface Pin Header 12 Contacts 2.54 mm Pitch 2 Row Unshrouded M20-8760642

HARWIN M20-8760642 Straight Surface Pin Header is a high-quality connector designed for use in PCB assembly and electronic systems requiring a 12-contact pin header with 2.54 mm pitch and 2-row configuration.

The connector features a durable nylon housing that withstands high temperature reflow soldering processes and includes castellations to enable custom sizing where required. Its unshrouded design allows for versatile mating options in Board-to-Board and Wire-to-Board applications. The contacts are made of brass with gold plating, ensuring excellent conductivity and resistance to corrosion, complemented by a 5.8 mm mating pin length.

Suitable for operating in temperature extremes of -40°C to 105°C, this connector meets the demands of a wide range of industrial, commercial, and consumer electronic devices. It finds common use in embedded PCs, communications equipment, industrial monitoring systems, and personal computing hardware.

The connector's surface mount design facilitates secure PCB installation, and its robust construction ensures long-lasting performance in various operating environments. Features 12 male contacts arranged in 2 straight rows with 2.54 mm pitch.

Nylon housing supports high temperature soldering processes. Gold-plated brass contacts deliver reliable electrical performance. Unshrouded design for easy mating with M20 series sockets and jumpers. Operating temperature range: -40°C to 105°C for versatile application.

Mating pin length of 5.8 mm suitable for various configurations. Thermoplastic casing with castellations for customizable sizes. Applicable in consumer electronics, industrial monitoring, and communications. Set your design standards with HARWIN's M20 Series for dependable PCB connection solutions across industries.
