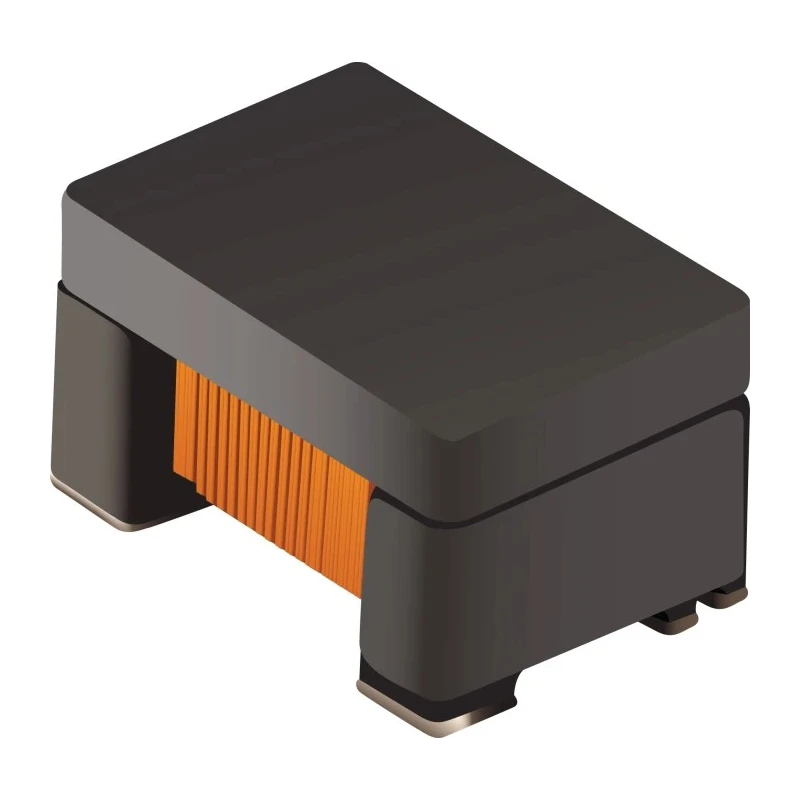

Bourns LAN Ethernet Transformer Surface Mount 5 Outputs 380μH Inductance 1500V Isolation Voltage SM453229-381N7Y
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Bourns |
| Length | 4.7mm |
| Model | SM453229-381N7Y |
| Depth | 2.9mm |
| Width | 3.22mm |
| Mount Type | Surface |
| Series | SM |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 5 |
| Inductance | 380μH |
| Standards/Approvals | IEEE 802.3, RoHS Directive 2015/863 |
| Isolation Voltage | 1500V |
| Insertion Loss | -1.1dB |
| Turns Ratio | 1:1 |
| Turns Ratio1 | 1 |
| Supported Ethernet Standards | IEEE 802.3 |
Key Features
- Features 5 outputs for versatile Ethernet LAN connectivity.
- Surface mount type with compact dimensions of 4.7mm length, 3.22mm width, and 2.9mm depth.
- Supports an operating temperature range from -40°C to 85°C for extended environmental use.
- 380μH inductance ensures effective signal transformation and noise suppression.
- High isolation voltage rating of 1500V for electrical safety and signal integrity.
- Insertion loss of -1.1dB to minimize signal degradation.
- Termination type is solder for secure PCB connections.
- Compliant with IEEE 802.3 Ethernet standard and RoHS Directive 2015/863 for environmental safety.
Product Description
The Bourns SM453229-381N7Y LAN Ethernet Transformer is engineered for high-performance network applications requiring reliable data transmission and robust EMI reduction. This surface-mounted transformer includes a pair with common mode choke SRF2012A-801Y specially designed to work over an expanded temperature range from -40°C to 85°C, making it suitable for industrial, telecommunications, and commercial networking equipment.
Measuring 4.7mm in length, 3.22mm in width, and 2.9mm in depth, this compact transformer features 5 outputs and a 380μH inductance capable of sustaining 1500V isolation voltage for effective noise suppression and signal integrity. The insertion loss is a low -1.1dB, ensuring minimal impact on signal quality. It is terminated via solder type for firm PCB mounting and is fully compliant with the IEEE 802.3 Ethernet standard, also meeting the requirements of the RoHS Directive 2015/863 for hazardous substances restriction.
Ideal for use in electronic components, power supplies, and transformers applications, this LAN transformer supports various Ethernet systems and ensures regulatory and safety standards compliance. Manufactured in Taiwan, Province Of China, it promises quality and reliability.
Five outputs provide multiple Ethernet connection points. Compact size enables integration in tightly packed PCB designs. Wide operating temperature range supports harsh environments. High inductance aids in signal transformation and choke functions.
Strong electrical isolation enhances operational safety. Low insertion loss minimizes energy and signal degradation. Solder termination ensures mechanical and electrical stability. Standards compliance ensures broad compatibility.
Explore the full range of LAN Ethernet Transformers and related components at EnvMart for all your industrial and electronic networking needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this transformer is 380μH, which aids in effective signal transformation and noise suppression.
It has a high isolation voltage rating of 1500V, ensuring electrical safety and signal integrity during operation.
The transformer measures 4.7mm in length, 3.22mm in width, and 2.9mm in depth, making it compact for various applications.
It supports an operating temperature range from -40°C to 85°C, suitable for harsh environments.
This model features 5 outputs, allowing for versatile Ethernet LAN connectivity.
The transformer uses a solder termination type, ensuring secure connections to the PCB.
It is compliant with the IEEE 802.3 Ethernet standard and the RoHS Directive 2015/863 for environmental safety.
The insertion loss is -1.1dB, which minimizes signal degradation during transmission.
The turns ratio for this transformer is 1:1, indicating equal input and output turns.
This transformer is manufactured in Taiwan, Province Of China.
It is suitable for use in electronic components, power supplies, and networking equipment requiring reliable data transmission and EMI reduction.
The SM453229-381N7Y is a surface mount type, allowing for easy integration into PCB designs.
