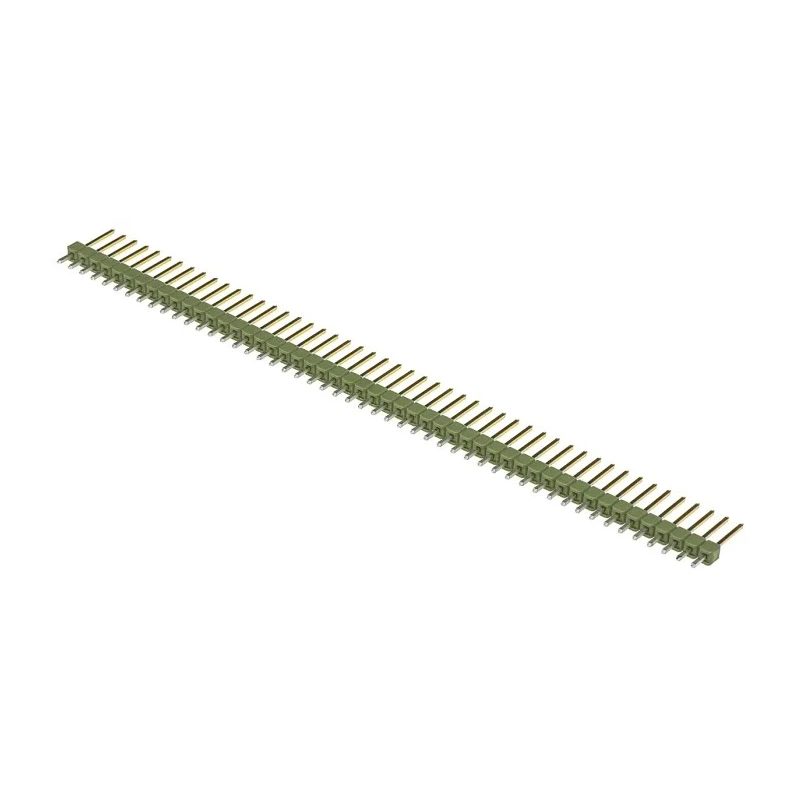

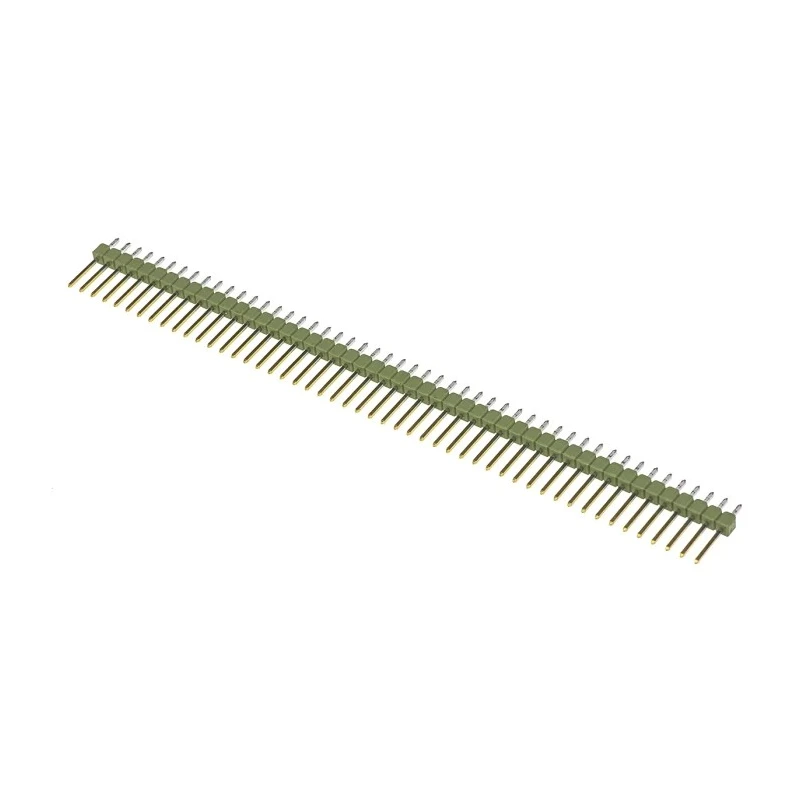

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 50 Contacts 2.54 mm Pitch 1 Row Unshrouded 5-826648-0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 8mm |
Key Features
- Features a single row with 50 gold-plated male brass contacts.
- Offers a pitch of 2.54 mm suitable for standard PCB layouts.
- Constructed with durable polyester housing for long-term performance.
- Through hole mounting enables secure soldering and mechanical stability.
- Rated for 3A current and 40V operating voltage for reliable signal transmission.
- Operating temperature range from -55°C to 105°C for versatile environmental use.
- Tail pin length of 3.2 mm and mating pin length of 8 mm for robust connections.
- Unshrouded design allows easy access for wiring and inspection.
Product Description
TE Connectivity 5-826648-0 AMPMODU MOD II Series Straight Through Hole Pin Header features a single row of 50 unshrouded, gold-plated male brass contacts with a 2.54 mm pitch. This pin header uses a polyester housing for robust durability and enables through-hole mounting on printed circuit boards, ensuring secure solder connections and mechanical strength.
Designed to handle a current rating of 3A and an operating voltage of 40V, the header supports a broad operating temperature range from -55°C to 105°C, making it suitable for challenging industrial environments. The contact design includes a 3.2 mm tail pin length and an 8 mm mating pin length for reliable interfacing.
The unshrouded single row configuration allows versatile use in board-to-board and wire-to-board connector systems, typical for automotive controls, industrial machinery, test equipment, telecommunications infrastructure, medical instruments, computing devices, storage hardware, and various appliance applications.
This AMPMODU MOD II Series is known for modularity and ease of assembly, as the breakaway pin headers can be trimmed to the required size, saving installation time and labor costs. This product offers a precise and cost-effective connectivity solution for a wide range of industrial and commercial electronic systems.
Features a single row with 50 gold-plated male brass contacts. Offers a pitch of 2.54 mm suitable for standard PCB layouts. Constructed with durable polyester housing for long-term performance. Through hole mounting enables secure soldering and mechanical stability.
Rated for 3A current and 40V operating voltage for reliable signal transmission. Operating temperature range from -55°C to 105°C for versatile environmental use. Tail pin length of 3.2 mm and mating pin length of 8 mm for robust connections.
Unshrouded design allows easy access for wiring and inspection. Compatible with board-to-board and wire-to-board connector systems. Suitable for automotive, industrial, telecommunications, medical, and computing applications.
Explore the comprehensive range of PCB Headers and connectors at EnvMart for high-quality industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm, which is suitable for standard PCB layouts.
This pin header has a total of 50 gold-plated male brass contacts.
It is rated for a current of 3A and an operating voltage of 40V, ensuring reliable signal transmission.
The operating temperature range is from -55°C to 105°C, making it suitable for various environmental conditions.
This model utilizes through-hole mounting, which enables secure soldering and mechanical stability.
The housing is made of durable polyester, and the contacts are made of brass with gold plating.
The tail pin length is 3.2 mm, while the mating pin length is 8 mm, providing robust connections.
Yes, it is compatible with board-to-board and wire-to-board connector systems.
The orientation of this pin header is straight, allowing for easy access during installation.
This model is suitable for various applications including automotive controls, industrial machinery, telecommunications, and medical instruments.
The country of origin for this pin header is India.
This pin header belongs to the AMPMODU MOD II Series.
