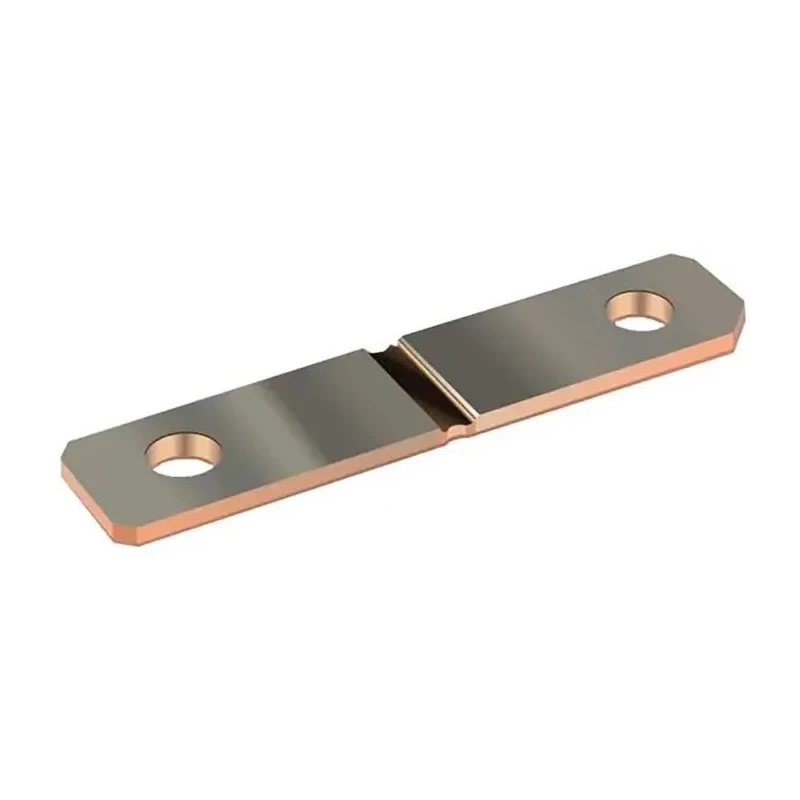

Bourns Metal Foil Plate Shunt 849A Max 42.4mV Output Voltage ±5% Accuracy CSM2F-8518-L050J01
Specifications
| Country of Origin | Costa Rica |
|---|---|
| Accuracy | ±5 % |
| Brand | Bourns |
| Model | CSM2F-8518-L050J01 |
| Series | CSM2F |
| Maximum Operating Temperature | 170°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 849A |
| Output Voltage | 42.4mV |
| Shunt Type | Plate |
| Maximum fastening torque | 10 Nm |
Key Features
- Constructed with metal foil resistive element mounted on ceramic substrate for excellent heat conductivity and reliability.
- Offers a 5% accuracy for accurate current measurement in industrial applications.
- Operating temperature range from -40°C to 170°C suitable for harsh environments.
- Supports up to 36 W permanent power with high pulse power rating.
- Tinned terminals ensure reliable electrical connections and corrosion resistance.
- Maximum fastening torque of 10 Nm for secure mounting.
- Complies with RoHS and AEC-Q200 standards for quality and environmental safety.
- Ideal for use in process control, automation systems, and industrial electronics.
Product Description
Bourns CSM2F-8518-L050J01 metal foil plate shunt is engineered for accurate current sensing applications requiring a maximum current of 849A and output voltage of 42.4mV with ±5% accuracy.
Its construction features a metal foil resistive element securely mounted on a ceramic substrate, which provides excellent heat conductivity, low inductance, and low noise performance. This design enhances reliability and measurement precision in demanding industrial environments.
The shunt operates reliably across a wide temperature range from -40°C to 170°C, making it suitable for harsh conditions encountered in industrial automation and process control systems.
With a permanent power rating of up to 36 W and high pulse power capability, it supports robust electrical loads. The tinned terminals provide corrosion-resistant and reliable electrical connections, while a maximum fastening torque of 10 Nm ensures secure installation.
Compliance with RoHS and AEC-Q200 standards guarantees adherence to environmental and quality regulations. The shunt is manufactured in Costa Rica to stringent quality standards.
This product is ideal for use in a variety of industrial applications including process control, industrial automation systems, and electronic instrumentation that requires precise current measurement.
Constructed with metal foil resistive element for excellent heat conductivity and performance. Maximum current rating of 849A with a 42.4mV output voltage for accurate sensing. Operating temperature range from -40°C to 170°C for reliable operation.
High permanent power rating of up to 36 W and high pulse power rating. Tinned terminals for corrosion resistance and secure electrical connections. Maximum fastening torque of 10 Nm for safe and stable mounting. Compliant with RoHS and meets AEC-Q200 standards for quality assurance.
Suitable for industrial automation, process control, and electronic instrumentation. Manufactured in Costa Rica ensuring consistent quality and durability. Custom versions available to meet specific application requirements.
This Bourns plate shunt is an essential component for applications demanding precise current measurement with reliable thermal performance and durability. Explore additional automation and control gear options on EnvMart for comprehensive system integration.
Explore more products in our Automation & Control Gear category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this model is 849A.
It provides an output voltage of 42.4mV.
This shunt offers an accuracy of ±5%.
The operating temperature range is from -40°C to 170°C.
The maximum fastening torque for secure mounting is 10 Nm.
It features tinned terminals that provide corrosion resistance and reliable electrical connections.
The permanent power rating is up to 36 W.
It complies with RoHS and AEC-Q200 standards for quality and environmental safety.
This model is manufactured in Costa Rica.
It is ideal for use in process control, industrial automation systems, and electronic instrumentation.
It is a plate type shunt, constructed with a metal foil resistive element.
The metal foil resistive element mounted on a ceramic substrate enhances heat conductivity and reliability.
