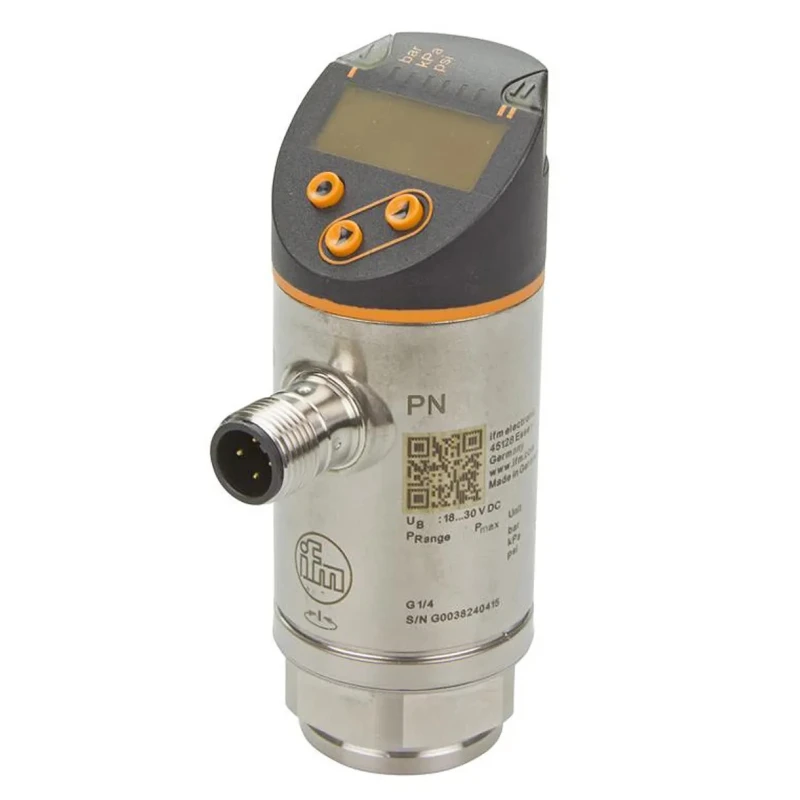

ifm electronic PN Series Pressure Sensor, Analogue, PNP NO/NC Output, 0 bar Min, 250 bar Max Pressure, ±0.4% PN2571
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.4 % |
| Brand | ifm electronic |
| Response time | 3ms |
| Model | PN2571 |
| IP Rating | IP65, IP67 |
| Housing Material | Fibreglass Reinforced PBT GF30, Stainless Steel |
| Output type | Analogue, PNP NO/NC |
| Series | PN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Maximum Pressure Measurement | 250bar |
| Minimum Pressure Measurement | 0bar |
| Maximum Supply Voltage | 30V dc |
| Minimum Supply Voltage | 18V |
| Pressure Reading Type | Relative |
| Media Measured | Fluid |
Key Features
- Pressure sensor supports fluid media measurement for industrial applications.
- Equipped with analogue and PNP NO/NC output options for flexible control.
- High stability with ceramic measuring element tolerant to overpressure.
- Robust housing material made of fibreglass reinforced PBT GF30 and stainless steel.
- IP65 and IP67 rated for dust and water resistance during operation.
- Wide operating temperature range from -25°C to 80°C ensures durability.
- Short response time of 3 milliseconds allows quick system feedback.
- Compatible with supply voltages between 18V and 30V DC.
Product Description
ifm electronic PN2571 is a highly accurate analogue pressure sensor from the PN Series designed for precise fluid pressure monitoring in industrial automation and control systems.
This sensor measures relative pressure within a range of 0 to 250 bar and ensures ±0.4% measurement accuracy. The pressure sensor features an advanced ceramic measuring element that is highly stable and resistant to overpressure, reducing zero offset and drift over time due to ageing and temperature variations.
Equipped with selectable dual switched PNP NO/NC outputs alongside a scalable analogue output, the PN2571 sensor provides flexible signal interfaces suitable for diverse industrial use cases. It offers fast response times as low as 3 ms, supporting responsive control feedback.
The robust housing comprises fibreglass reinforced PBT GF30 combined with stainless steel construction, achieving IP65 and IP67 ingress protection ratings, making the sensor suitable for harsh industrial environments requiring dust and water resistance.
Operational within a broad temperature span from -25°C to 80°C, this pressure sensor is suitable for demanding settings such as manufacturing plants, water treatment, HVAC systems, and laboratory instrumentation.
Certified to meet key standards including DIN EN 61000-6-3, DIN EN 61000-6-2, and UL approvals, the device ensures compliance and reliability. Visual indication through a bright 4-digit alphanumeric display and LED signals aid monitoring and troubleshooting.
Pressure measurement range: 0 to 250 bar relative. Output types: analogue signal plus dual PNP NO/NC switching outputs. Highly stable ceramic sensing technology. Robust IP65/IP67 rated housing with fibreglass and stainless steel materials.
Wide temperature operation from -25°C to 80°C. Fast 3 ms response time with IO-Link communication. Complies with multiple industrial standards and UL certification.
This Pressure Sensor is ideal for automation, hydraulic, pneumatic, HVAC, laboratory, and water treatment industry applications requiring precise and dependable pressure monitoring.
Explore more ifm electronic products and sensors at EnvMart to find tailored industrial solutions for your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PN2571 measures relative pressure within a range of 0 to 250 bar.
This model has an accuracy of ±0.4%.
It features an analogue output along with dual PNP NO/NC switching outputs.
The response time of the PN2571 is 3 milliseconds.
The housing is made of fibreglass reinforced PBT GF30 and stainless steel.
It has IP65 and IP67 ratings for dust and water resistance.
This unit operates within a temperature range of -25°C to 80°C.
It is compatible with supply voltages between 18V and 30V DC.
The PN2571 is designed to measure fluid media.
This pressure sensor is suitable for applications in automation, hydraulic, pneumatic, HVAC, laboratory, and water treatment industries.
Yes, it complies with DIN EN 61000-6-3, DIN EN 61000-6-2, and UL approvals.
It provides relative pressure readings.
