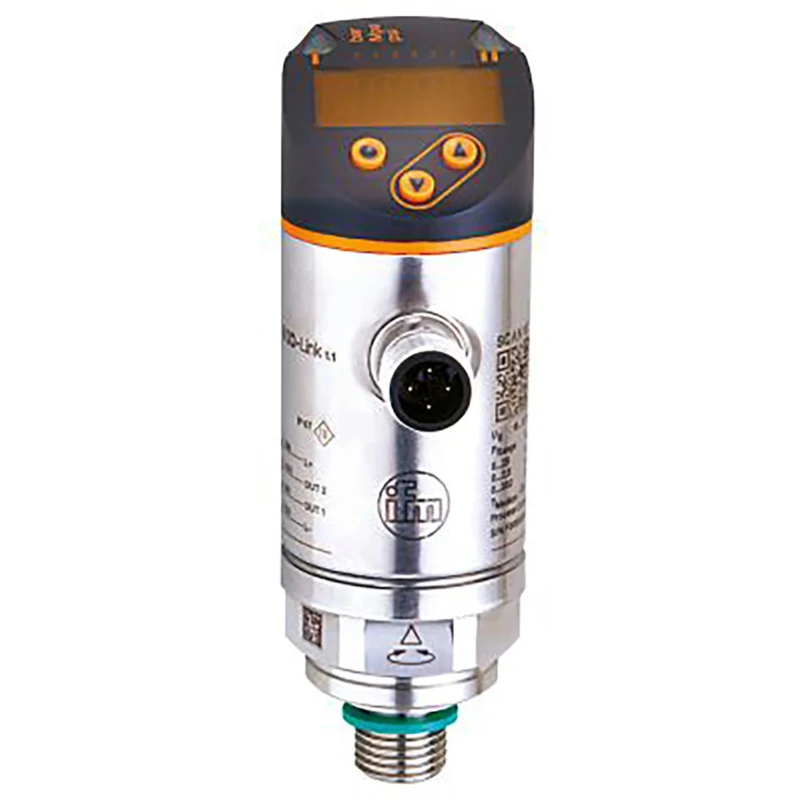

ifm electronic PN Series Pressure Sensor Analogue PNP NO/NC Output 0 bar to 25 bar Relative Reading PN2593

ifm electronic PN2593 Pressure Sensor is part of the PN Series designed for precise relative pressure measurement from 0 bar to 25 bar with analogue and switched outputs. It features PNP normally open and normally closed outputs suitable for industrial fluid applications requiring reliable pressure monitoring.

The sensor housing combines fibreglass reinforced PBT GF30 and stainless steel, ensuring robustness in demanding industrial environments. Designed for operation between -25°C and 80°C, it complies with several standards including UL approval J003, DIN EN 60068 and IEC 61131-9. The sensor supports an IP67 and IP65 rating, making it dust-tight and water-resistant, ideal for harsh conditions.

The highly stable ceramic measuring element provides low zero offset and excellent drift stability under varying temperatures and overpressure conditions. Its fast 3 ms response time enables real-time system pressure evaluation, while a bright 4-digit alphanumeric display and LEDs give clear visualization of switching states.

Analogue and PNP NO/NC output for flexible signal control. Measuring range from 0 to 25 bar relative pressure. Robust fibreglass reinforced and stainless steel housing. Wide operating temperature and overpressure resistance.

IP67 and IP65 protection against dust and water ingress. Highly stable ceramic sensor element for precision. Fast response time for dynamic pressure changes. Bright display and LED indicators for operational status.

This Pressure Sensor is ideal for use in industrial automation, hydraulic and pneumatic systems, manufacturing process control, and fluid measurement applications. It provides reliable and precise pressure data crucial for system safety and performance.

EnvMart offers this quality ifm electronic sensor with proven standards compliance and sturdy construction, supporting demanding industrial and laboratory automation needs.
