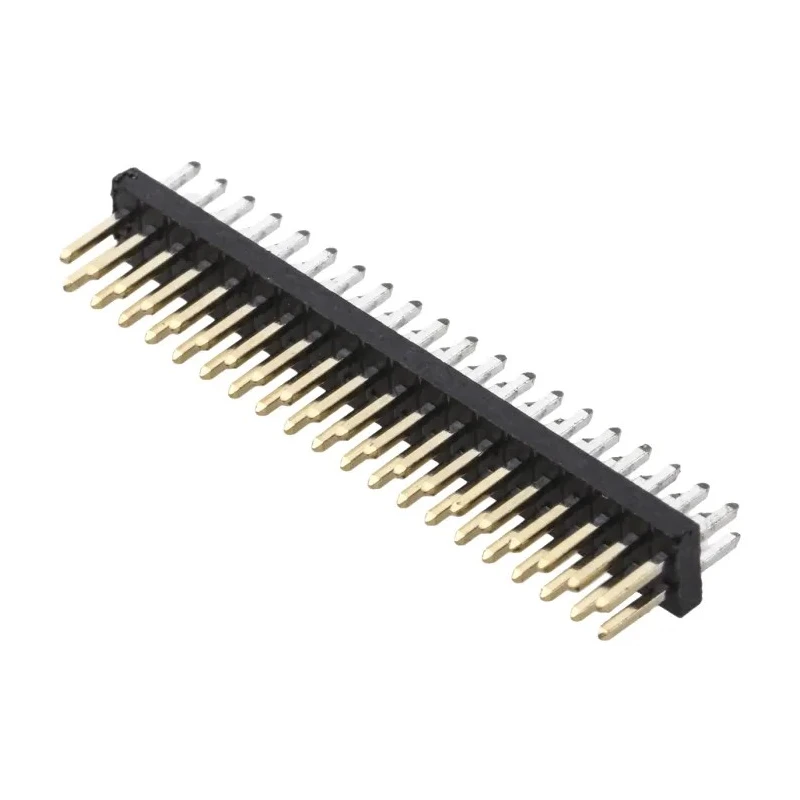

HARWIN Archer M50 Series Straight Through Hole Pin Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded M50-3502042

HARWIN M50-3502042 Archer M50 Series Straight Through Hole Pin Header is a high-quality connector solution designed for reliable electrical connections in electronic equipment. It incorporates 40 male contacts arranged in two rows with a standard 1.27 mm pitch, making it ideal for board-to-board and wire-to-board applications. The unshrouded connector design provides excellent design flexibility and facilitates easy mating with compatible IDC cable sockets and jumper sockets.

The header features a durable nylon housing along with gold-plated copper alloy contacts that deliver outstanding corrosion resistance and consistent electrical conductivity. Its through hole mount and straight orientation make it suitable for various PCB assembly requirements. The component can operate reliably within a temperature range from -40°C to 105°C, making it suitable for demanding industrial, automotive, communications, and medical equipment.

These connectors are widely used in telecommunications, datacom systems, industrial control, test equipment, navigation systems, sonar displays, and medical diagnostic instruments such as X-ray machines. Their compact design enables space saving on the PCB without compromising connection integrity. The tail pin length of 2.3 mm and mating pin length of 3 mm ensures precise, secure electrical contacts.

The HARWIN Archer M50 series is known for its design flexibility, allowing cutting to size and availability in multiple configurations, including vertical and horizontal mounting orientations as well as SMT and through hole options. This particular model, M50-3502042, is a 2-row, 40-contact pin header with a 1.27 mm pitch suitable for applications requiring reliable and robust electrical connectors.

Features 40 male contacts set in 2 rows for secure connectivity. 1.27 mm contact pitch supports compact PCB designs. Nylon housing ensures durability and electrical insulation. Gold-plated copper alloy contacts for corrosion resistance and conductivity.

Through hole mount type and straight orientation for versatile PCB assembly. Operating temperature range from -40°C to 105°C for industrial applications. Tail pin length is 2.3 mm with a mating pin length of 3 mm for precise insertion.

Unshrouded design allows easy access for jumper and cable socket compatibility.

This connector is an excellent choice for manufacturers and engineers working on telecommunications, industrial controls, automotive circuits, medical devices, and various electronic assemblies. It provides reliable electrical performance in harsh environments with robust mechanical and thermal characteristics.
