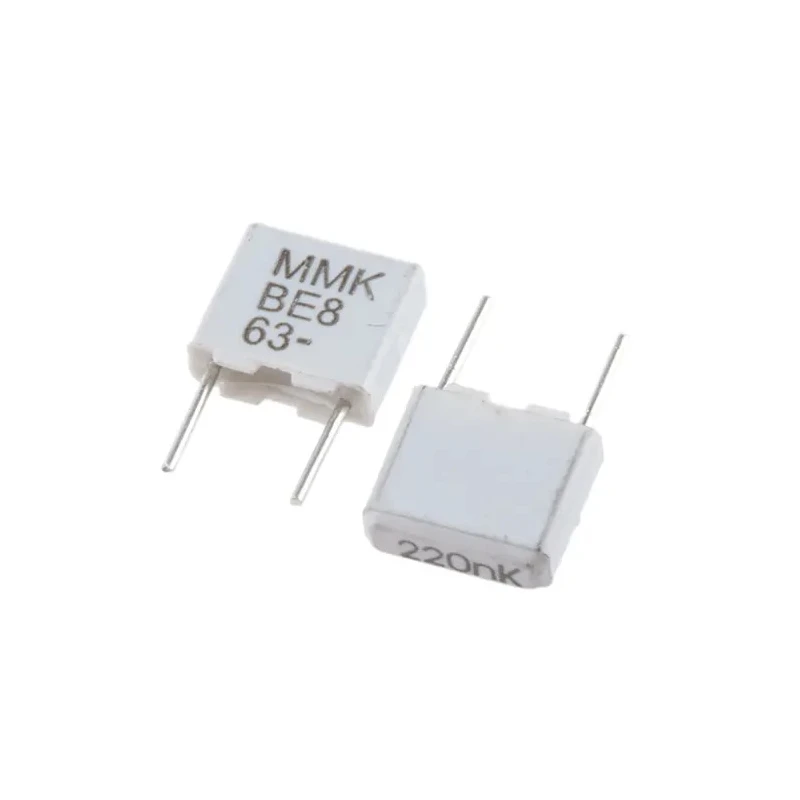

KEMET MMK Film Capacitor 220 nF, ±10%, 63 V DC, 40 V AC, Through Hole MMK5224K63J01L4BULK

The KEMET MMK5224K63J01L4BULK is a high reliability film capacitor designed for demanding electronic applications. Featuring a capacitance of 220 nF and a tolerance of ±10%, it ensures precise filtering, coupling, and bypassing in circuits. The capacitor is rated for 63 V DC and 40 V AC, making it suitable for use in both DC and low-voltage AC environments.

This MMK series capacitor utilizes a metallized polyester dielectric, providing optimal electrical performance and longevity. It is encapsulated in a self-extinguishing material, meeting UL 94V-0 safety requirements, and is equipped with vacuum evaporated aluminium electrodes for consistent quality.

The through hole mount configuration with a 5 mm lead pitch fits standard PCB layouts, and the wire radial leads, each 20 mm in length and 0.5 mm in diameter, allow for easy soldering and firm mechanical retention. Its compact dimensions (7.2 mm length, 6.5 mm height, 2.5 mm width) make it suitable for space-constrained designs.

Operating reliably over a wide temperature range from -55°C to +100°C, this component is engineered for robust industrial, commercial, and laboratory environments. Typical applications include signal coupling, bypassing, and general circuit decoupling in power supplies, filter networks, and instrumentation modules.

Compliance with DIN 44122 and IEC 60384-2 standards guarantees industry-accepted performance and safety. The capacitor is supplied in bag packaging and is intended for production and maintenance use, particularly where high reliability and safety are required.

Reliable metallized polyester film capacitor for electronic circuits. Capacitance of 220 nF with ±10% tolerance ensures stable performance. Rated for 63 V DC and 40 V AC operation. Through hole mount with 5 mm lead pitch for PCB integration.

Wire radial leads with 20 mm length facilitate secure installation. Encapsulation in self-extinguishing material compliant with UL 94V-0. Suitable for bypassing and signal coupling applications. Operating temperature range from -55°C to 100°C for wide applicability.

Compact size with 7.2 mm length, 6.5 mm height, and 2.5 mm width. Complies with DIN 44122 and IEC 60384-2 standards.

The MMK5224K63J01L4BULK capacitor is ideal for use in industrial and laboratory PCBs, commercial electronics, manufacturing automation, power supplies, and signal processing equipment.
