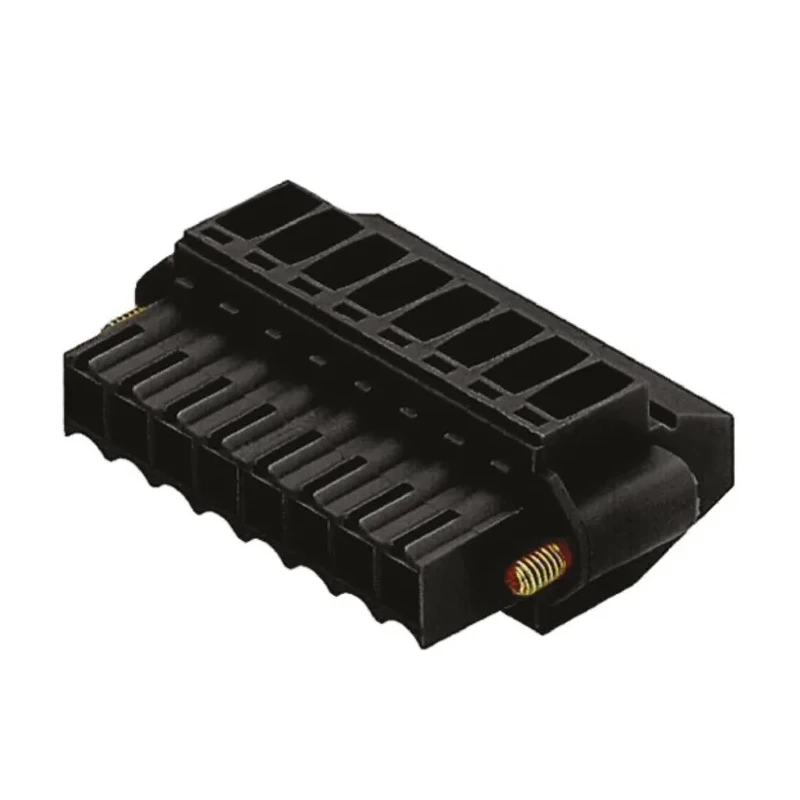

Weidmüller BL Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row, 12A, 320V, Polybutylene 1639300000

Free Delivery in India | Lowest Global Shipping Charges

Weidmüller BL Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row, 12A, 320V, Polybutylene 1639300000

Name: Weidmüller BL Series Pluggable Terminal Block, 8-Contact, 3.5 mm Pitch, 1 Row, 12A, 320V, Polybutylene 1639300000
Brand: Weidmuller
SKU: 130225



Category Pluggable Terminal Blocks Brand Weidmuller Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Weidmüller
Colour	Black
Current	12A
Depth	14.6mm
Width	22.45mm
Housing Material	Polybutylene Terephthalate
Series	BL
Number of Rows	1
Pitch	3.5mm
Number of Contacts	8
Connector Gender	Male
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	14AWG
Wire Connection Method	Screw

Key Features

This terminal block features a 3.5 mm pitch and a single row configuration.
It supports wire sizes from 0.08 mm² to 2.5 mm² with screw connection method.
The housing is made from durable polybutylene terephthalate material in black color.
Operating voltage rating is 320V with a rated current of 12A.
It includes a hardened, zinc-chromed plated clamping-yoke screw system for reliable wire clamping.
Connector gender is male with screw termination for easy wiring.
Mounted with a 90° flanged female plug ideal for cable connections.
Designed and manufactured in Germany ensuring high quality standards.

Product Description

Weidmüller 1639300000 BL Series Pluggable Terminal Block is a high-quality electrical connector ideal for industrial and electronic applications requiring reliable, compact connections.

Featuring 8 contacts arranged in a single row with a 3.5 mm pitch, this terminal block is built with a polybutylene terephthalate housing that ensures durability and electrical insulation. Rated for a current of 12A and a voltage of 320V, it is suitable for various medium power circuits.

The connector employs a screw connection method using a hardened, zinc-chromed plated clamping yoke, providing easy and secure wire termination. It supports a wide range of wire sizes from 0.08 mm² (28 AWG) up to 2.5 mm² (14 AWG), making it versatile for different wiring needs.

The product is a female plug with a 90° flanged design to facilitate cable mounting, improving installation convenience. Its compact dimensions, including a width of 22.45 mm and depth of 14.6 mm, suit space-constrained panel and PCB applications.

The Weidmüller BL Series is known for its reliability and precision, manufactured in Germany to stringent quality standards. This terminal block is ideal for industrial electronics, control panels, automation systems, and power distribution setups.

This terminal block features a 3.5 mm pitch and a single row configuration. It supports wire sizes from 0.08 mm² to 2.5 mm² with screw connection method. The housing is made from durable polybutylene terephthalate material in black color.

Operating voltage rating is 320V with a rated current of 12A. It includes a hardened, zinc-chromed plated clamping-yoke screw system for reliable wire clamping. Connector gender is male with screw termination for easy wiring.

Mounted with a 90° flanged female plug ideal for cable connections. Dimensions include a width of 22.45 mm and depth of 14.6 mm. Designed and manufactured in Germany ensuring high quality standards.
