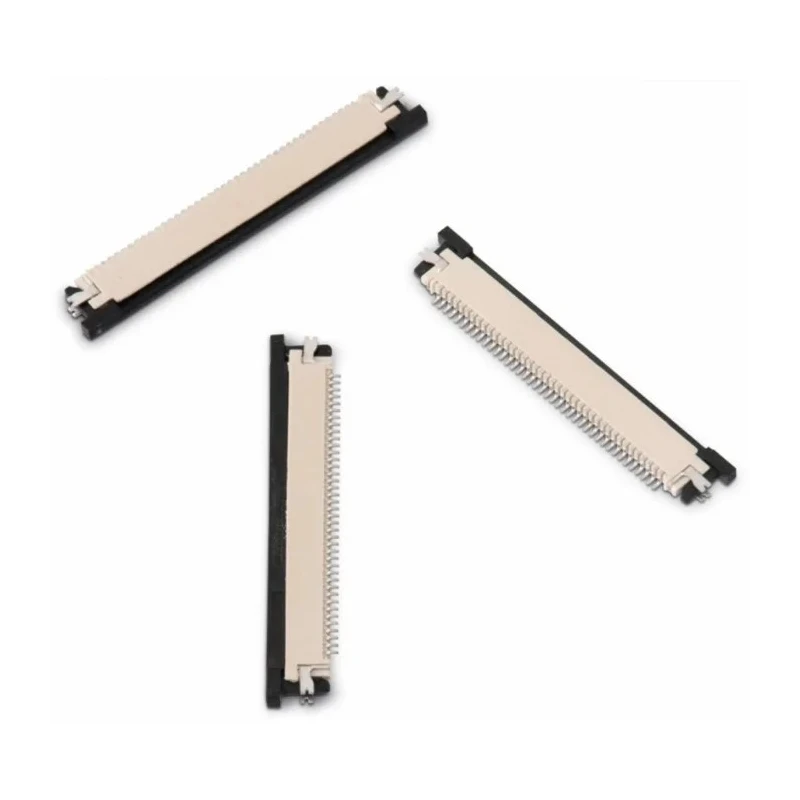

Wurth Elektronik WR-FPC 0.5 mm Pitch 34 Way Horizontal Female FPC Connector Surface Mount 687134183622

Wurth Elektronik 687134183622 is a 34 Way Horizontal Female FPC Connector with 0.5 mm pitch, designed for surface mount technology. It features a low profile of 1.2 mm height and incorporates a Zero Insertion Force (ZIF) rotating flip lock actuator that facilitates easy insertion and strong retention of flexible printed circuits (FPCs). This connector provides robust mechanical and electrical connections suitable for high-density miniaturized applications.

The phosphor bronze contacts with tin over nickel plating ensure reliable conductivity and corrosion resistance. The connector's housing is fabricated from liquid crystal polymer, providing excellent mechanical strength and thermal stability. Operating temperature ranges from -25°C to 85°C support diverse industrial environments.

Designed with a horizontal orientation and top contact position, it includes brass solder tabs on both sides to secure the connector firmly to the PCB. The connector supports a maximum current of 400 mA and a voltage rating of 50 V AC, making it suited for various electronic applications including displays, touch panels, consumer electronics, industrial and medical devices.

Its locking mechanism provides high retention force ensuring reliable connection integrity and durability under mechanical stresses. Wurth Elektronik's WR-FPC series connectors are widely used in compact and dense electronic assemblies where space conservation and dependable performance are critical.

Features a 0.5 mm pitch and 34 contact positions for high-density applications. Zero Insertion Force (ZIF) flip lock actuator for easy and secure FPC insertion. Constructed with phosphor bronze contacts plated with tin over nickel for durability.

Housing made from liquid crystal polymer offers mechanical stability and heat resistance. Operates reliably between -25°C and 85°C with voltage rating of 50V AC. Solder tabs enhance secure retention on PCB to withstand mechanical stress.

Offers top contact position and horizontal connector orientation for design flexibility.

This surface mount FPC connector is ideal for use in industrial, medical, consumer electronics, and other compact electronic devices requiring secure and space-efficient interconnect solutions. Explore more Wurth Elektronik FPC Connectors and related components on EnvMart for your precision electronic assembly needs.
