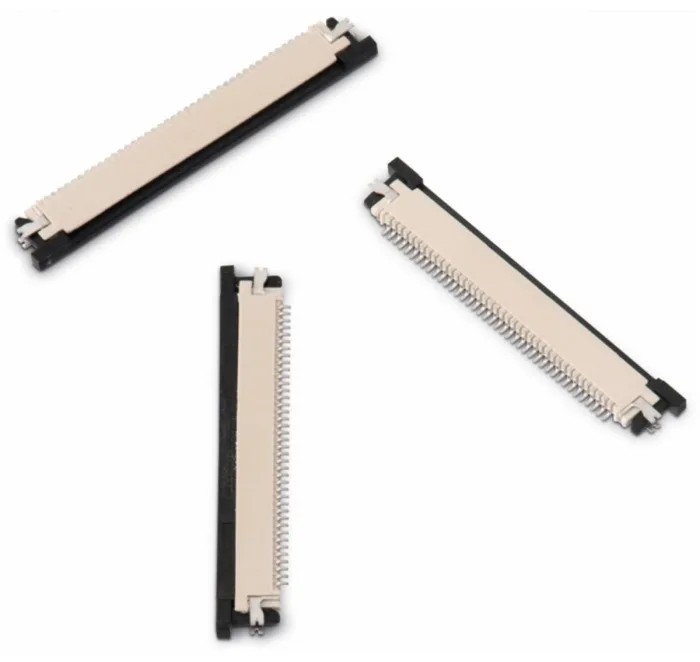

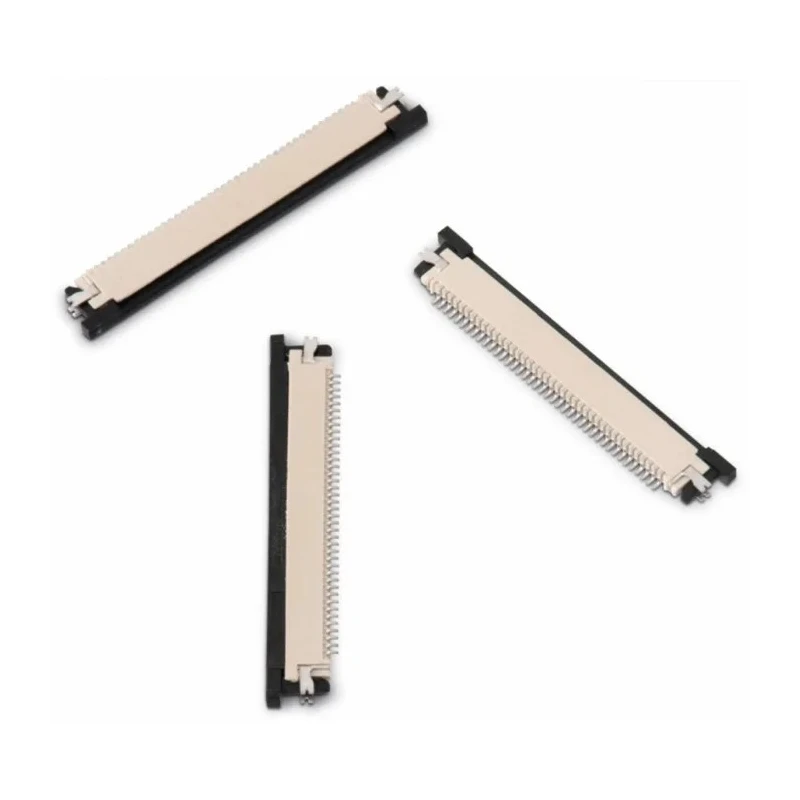

Wurth Elektronik WR-FPC 0.5 mm Pitch 10 Way Horizontal Female FPC Connector Surface Mount 687110183622

Wurth Elektronik model 687110183622 is a 0.5 mm pitch 10 way horizontal female FPC connector designed for surface mount applications. This low profile connector has a compact height of 1.2 mm, making it ideal for high density electronic assemblies where space saving is critical.

The WR-FPC series features a Zero Insertion Force (ZIF) flip lock actuator that provides a secure and reliable mechanical and electrical connection by easy insertion and locking of flexible printed circuits (FPC). This actuator rotates fully to allow insertion of the FPC and then locks it in place, ensuring contact retention under vibration and mechanical stress.

Contacts are made from phosphor bronze and plated with tin over nickel, delivering excellent electrical performance and corrosion resistance. The housing is constructed from liquid crystal polymer, providing dimensional stability and resistance to elevated temperatures.

This connector supports a maximum current of 400mA and a voltage rating of 50V AC. It is suitable for operating environments spanning from -25°C to +85°C, accommodating a wide range of industrial and commercial applications.

Surface mount solder tabs on the sides of the connector provide extra mechanical retention on the PCB, enhancing reliability in dynamic or vibration-prone settings.

Widely used in miniaturized and high density applications, it is ideal for consumer electronics such as tablets, personal computers, mobile phones, cameras, as well as business, industrial, and medical equipment including displays, touch panels, and screens.

Low profile design with height of 1.2 mm suitable for compact assemblies. Zero Insertion Force (ZIF) flip lock actuator for secure FPC insertion and retention. Phosphor bronze contacts plated with tin over nickel for reliable conductivity and corrosion resistance.

Liquid crystal polymer housing offers mechanical and thermal stability. Supports 400mA current rating and 50V AC voltage. Surface mount with solder tabs for strong PCB retention. Operating temperature range from -25°C to 85°C.
