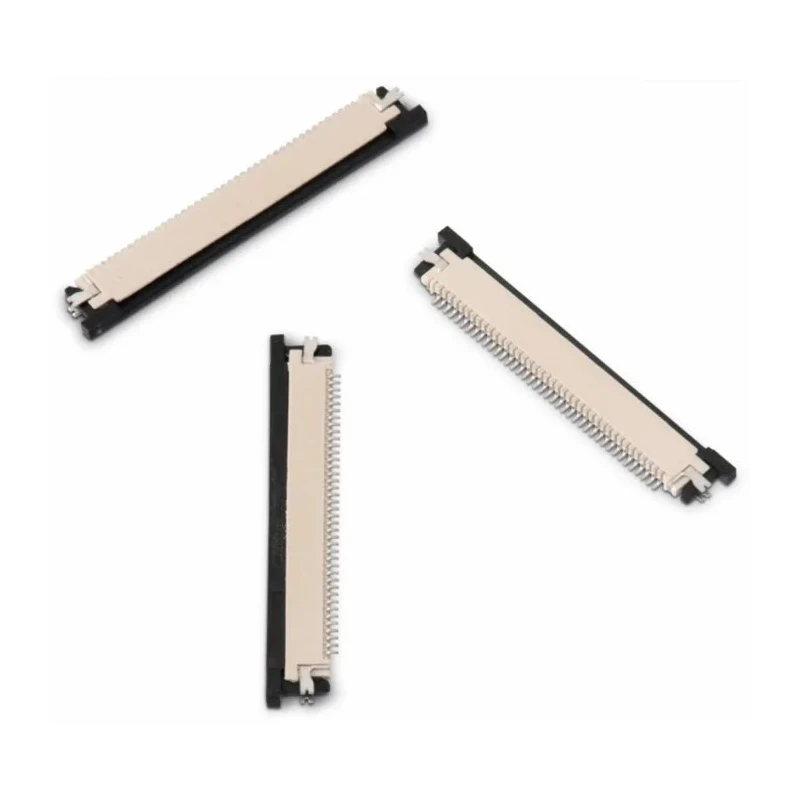

Wurth Elektronik WR-FPC 0.5 mm Pitch 16 Way Horizontal Female FPC Connector Surface Mount 687116183622
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V ac |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 400mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 16 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- The connector features 16 contacts made of phosphor bronze for reliable conductivity.
- It supports a current rating of 400mA and a voltage rating of 50V AC.
- ZIF (Zero Insertion Force) flip lock actuator enables easy FPC insertion and secure locking.
- Constructed with a liquid crystal polymer housing and tin over nickel contact plating for durability.
- Designed for operation between temperatures of -25°C to 85°C providing stability in various environments.
- Includes brass solder tabs for enhanced retention on PCB surfaces.
- Top contact position with horizontal orientation suitable for compact, high-density electronic assemblies.
- Ideal for use in miniaturized devices including displays, touch panels, mobile electronics, and industrial equipment.
Product Description
Wurth Elektronik 687116183622 is a 0.5 mm pitch, 16 Way horizontal female FPC connector designed for surface mount assembly, engineered to deliver reliable electrical and mechanical connections in densely packed electronic devices.
This low profile connector, with a height of only 1.2 mm, incorporates a flip lock actuator mechanism that facilitates zero insertion force (ZIF) FPC insertion, ensuring minimal wear and enhanced retention forces once locked in place.
The connector is made from durable materials including phosphor bronze contacts with tin over nickel plating and a liquid crystal polymer housing, enabling dependable performance over a wide temperature range from -25°C to 85°C.
Brass solder tabs on each side provide secure mechanical retention to PCBs, reducing the risk of connection failure under vibration or shock conditions. Its top contact position and horizontal orientation accommodate design flexibility while supporting current up to 400mA and voltage ratings up to 50V AC.
This FPC connector series is particularly suited for miniaturized, high-density applications such as consumer electronics devices (computers, tablets, mobile phones, cameras), industrial control systems, medical equipment, and display technologies.
The connector features 16 phosphor bronze contacts rated for 400mA current carrying capacity. It employs a surface mount termination type with a ZIF locking mechanism for easy assembly. Operates reliably across a temperature range from -25°C to 85°C.
Low profile design with a 0.5 mm pitch and 1.2 mm height, supporting space-saving layouts. Constructed using liquid crystal polymer housing for stability and tin over nickel plating for corrosion resistance. Enhanced mechanical retention provided by brass solder tabs.
Horizontal orientation with top contact positioning for flexible PCB layouts.
For advanced electronic design projects requiring miniature high-density connectors, Wurth Elektronik WR-FPC connectors offer superior reliability and ease of assembly. Explore more FPC Connectors and components at EnvMart for your industrial, electronic, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 400mA.
It has a voltage rating of 50V AC.
The contacts are made of phosphor bronze, and the housing is constructed from liquid crystal polymer with tin over nickel contact plating.
It operates reliably between -25°C and 85°C.
This model features 16 contacts.
It utilizes a surface mount termination type.
It employs a Zero Insertion Force (ZIF) flip lock actuator for easy FPC insertion and secure locking.
The connector has a low profile height of 1.2 mm.
The contacts are positioned at the top with a horizontal orientation.
It is ideal for use in miniaturized devices including displays, touch panels, mobile electronics, and industrial equipment.
Brass solder tabs on each side provide enhanced mechanical retention to PCB surfaces.
This model is part of the WR-FPC series.
