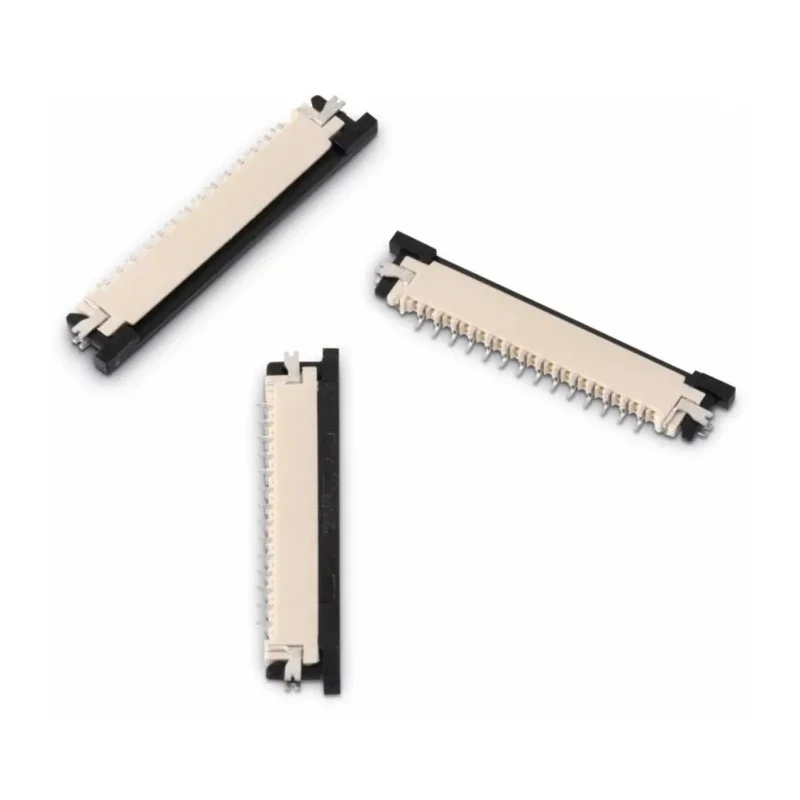

Wurth Elektronik WR-FPC 1 mm Pitch 15 Way Horizontal Female Surface Mount FPC Connector 686115183422

Wurth Elektronik 686115183422 WR-FPC series 1 mm pitch FPC Connector provides a surface mount solution for high density electronic applications. The 15 way horizontal female connector features a low profile design with a height of just 1.2 mm, ideal for space-constrained designs.

This WR-FPC connector incorporates a flip lock actuator that rotates to open for easy insertion of flexible printed circuits (FPC), and rotates back to secure a reliable electrical and mechanical connection. The phosphor bronze contacts are plated with tin over nickel to maintain stable conductivity and resist corrosion, while the liquid crystal polymer housing offers good durability and heat resistance.

The connector is rated for 800mA current and 50V AC voltage. It includes solder tabs on either side to enhance PCB retention during assembly and operation. The horizontal orientation and single row of contacts afford flexibility in design layouts.

This FPC connector is widely applicable in miniaturized high density electronics such as displays, touch panels, screens, consumer electronics (personal computers, tablets, mobile phones, and cameras), as well as business, industrial, and medical equipment requiring dependable flexible printed circuit connections.

Suitable for industrial, laboratory, commercial, and manufacturing applications involving electronic interconnects. Low profile and space-saving design supports compact device assembly. Flip lock actuator mechanism ensures secure and durable retention of flexible printed circuits.

Robust contact materials and plating provide reliable electrical performance. Supports a broad temperature range for versatile operational environments.

Choose Wurth Elektronik FPC Connectors for performance and reliability in advanced electronic component designs. Browse our complete selection of electronic connectors and related products to find the ideal components for your applications.
