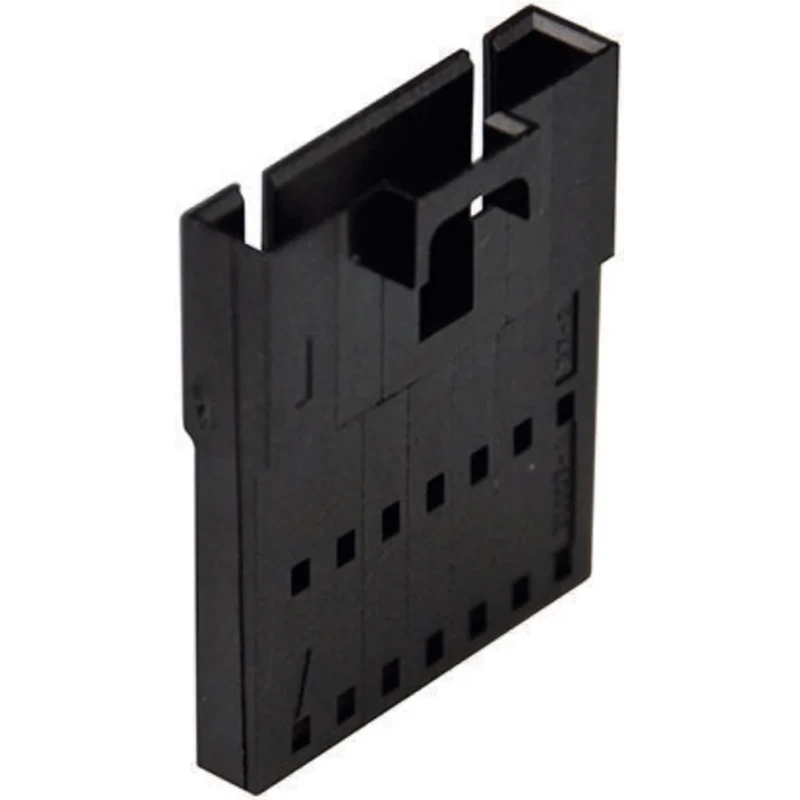

Molex SL Female Connector Housing 2.54 mm Pitch 9 Way 1 Row Straight 70107-0008

Molex 70107-0008 SL Female Connector Housing is a specialized electronic connector housing designed for wire-to-wire connections. It features a pitch of 2.54 mm, with 9 contacts arranged linearly in a single row straight configuration. This design allows for efficient and reliable electrical connections in compact spaces.

The housing material is made of PBT (Polybutylene Terephthalate), which provides excellent mechanical strength, thermal resistance, and electrical insulation, making it suitable for industrial and electronic assembly environments.

The connector housing has a length of 24.89 mm and a width of 6 mm, suitable for dense wiring setups while maintaining durability. It includes a cable mount type intended for straightforward mounting on cables and wires, facilitating easy integration into complex wiring harnesses and assemblies.

This housing mates with Molex 70066N and 70066G series housings and employs 70021 series terminals. Such compatibility ensures flexibility and interchangeability in system designs, particularly within the Molex SL C-Grid series.

Although there are no listed certifications or specialized standards approvals, this connector housing is well suited for various electrical and electronic applications including automotive, industrial machinery, instrumentation, and telecommunications systems where reliable wire-to-wire connections are needed.

This connector housing features 9 contacts arranged in one row for efficient signal transmission. It has a 2.54 mm pitch, making it compatible with standard wire-to-wire connectors. The housing is made of durable PBT material, offering reliable insulation and mechanical strength.

Its straight orientation and cable mount type simplify wiring and integration in assemblies. The length of the housing is 24.89 mm with a width of 6 mm for compact installation. This connector mates with Molex 70066N and 70066G series housings and utilizes 70021 series terminals.

It is part of the Molex SL series, ensuring compatibility within the product family. No specific standards or approvals are indicated for this housing, emphasizing basic but effective use. The connector is ideal for electronics, industrial automation, and other wire harness applications requiring secure female connections.
