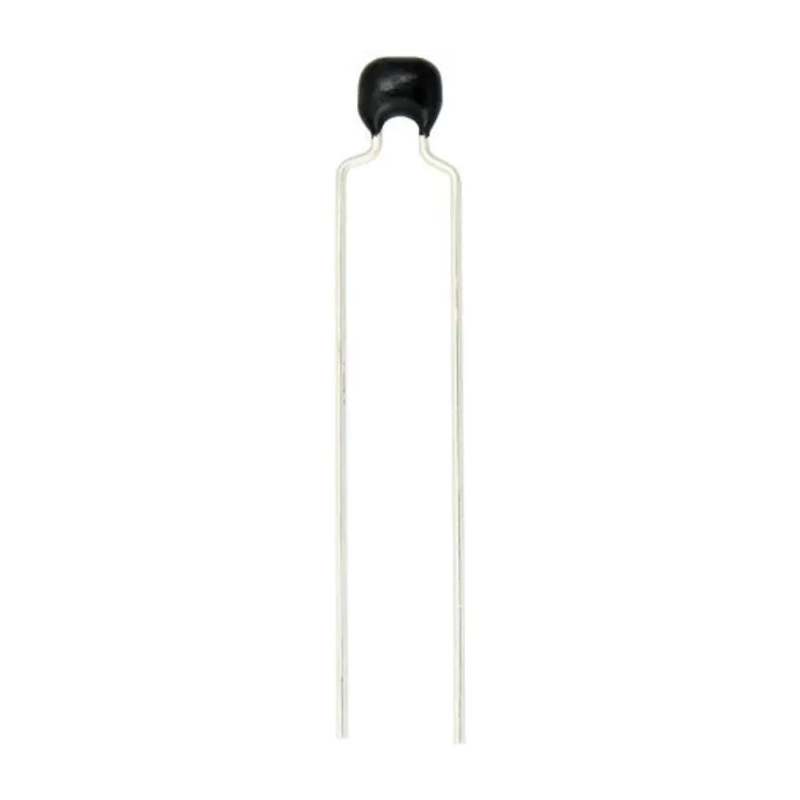

Vishay 100 nF 100V DC Through Hole Radial Multilayer Ceramic Capacitor ±10% Tolerance K104K15X0UH53H5H
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 100V dc |
| Brand | Vishay |
| Height | 2.6mm |
| Length | 3.8mm |
| Model | K104K15X0UH53H5H |
| Packaging | Bulk |
| Width | 3.8mm |
| Mount Type | Through Hole |
| Series | K-H |
| Termination Type | Radial |
| Maximum Operating Temperature | 175°C |
| Tolerance | ±10 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | EN, RoHS, IEC, EIA, UL |
| Lead Diameter | 0.5mm |
| Dielectric | X0U |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
| Lead Spacing | 5mm |
| Seated Plane Height | 2.6mm |
Key Features
- Constructed with X0U dielectric for high reliability and performance.
- Suitable for automotive applications with AEC-Q200 qualification.
- Maximum operating temperature up to 175°C for extreme conditions.
- Radial leads with 5mm spacing and 0.5mm diameter for secure mounting.
- Compact size with 3.8mm length, 3.8mm width, and 2.6mm height.
- Meets EN, RoHS, IEC, EIA, and UL standards ensuring compliance.
- Terminated with 100% tinned copper-clad copper leads for excellent soldering.
- Wide operating temperature range from -55°C to +175°C.
Product Description
Vishay K104K15X0UH53H5H is a high-performance multilayer ceramic capacitor featuring 100 nF capacitance and a voltage rating of 100V DC. Designed with X0U dielectric and radial through-hole mount, this capacitor is engineered for demanding industrial, automotive, and electronic applications requiring reliability and extended operation in harsh environments.
The capacitor is qualified to the automotive AEC-Q200 standard, providing assurance for use in automotive EMI filtering, sensor circuits, and control modules. Its maximum operating temperature of 175°C surpasses typical ceramic capacitors, ensuring stable performance under extreme thermal stress.
Designed with a compact form factor measuring 3.8mm length and width by 2.6mm height, it features 5mm lead spacing with 0.5mm diameter tinned copper-clad leads for reliable soldering and mechanical stability. The radial termination type facilitates through-hole mounting on PCBs or in harness assemblies.
These Vishay capacitors are produced using a unique wet build process with noble metal electrodes delivering high reliability and minimal capacitance change over temperature variation. The capacitor is RoHS compliant and meets relevant EN, IEC, EIA, and UL standards for quality assurance.
Constructed with X0U dielectric for high reliability and performance. Suitable for automotive applications with AEC-Q200 qualification. Maximum operating temperature up to 175°C for extreme conditions. Radial leads with 5mm spacing and 0.5mm diameter for secure mounting.
Compact size with 3.8mm length, 3.8mm width, and 2.6mm height. Meets EN, RoHS, IEC, EIA, and UL standards ensuring compliance. Terminated with 100% tinned copper-clad copper leads for excellent soldering. Wide operating temperature range from -55°C to +175°C.
This multilayer ceramic capacitor is suitable for industrial electronics, automotive control systems, HVAC electronics, telecommunications, and other applications requiring stable capacitance at elevated temperatures.
Explore more high-quality Multilayer Ceramic Capacitors on EnvMart to meet your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 100 nF.
The maximum operating temperature is 175°C.
It measures 3.8mm in length, 3.8mm in width, and 2.6mm in height.
The voltage rating is 100V DC.
This model is designed for through-hole mounting.
The lead spacing is 5mm.
It is constructed with X0U dielectric material.
It is qualified to the AEC-Q200 automotive standard.
The tolerance is ±10%.
It meets EN, RoHS, IEC, EIA, and UL standards.
The minimum operating temperature is -55°C.
It features tinned copper-clad copper leads with a diameter of 0.5mm.
