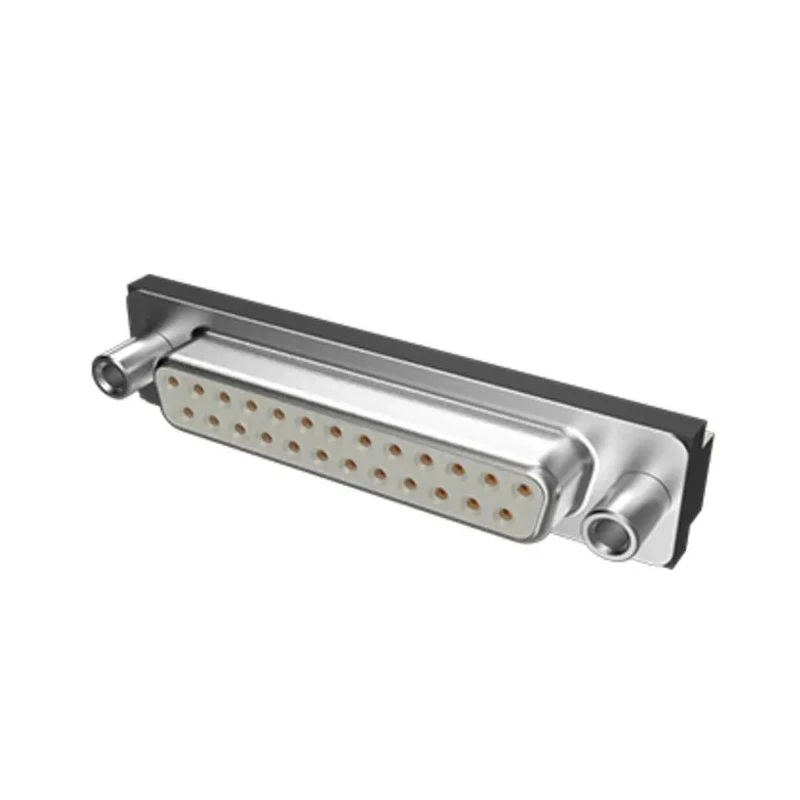

Amphenol Communications Solutions DM 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Female D25S33E6UX00LF
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 5A |
| Model | D25S33E6UX00LF |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | DM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 |
| Connector Type D | D-Sub |
| D-Sub Shell Size | B |
Key Features
- The connector supports 25 contacts, providing ample connections for various applications.
- Rated for a voltage of 300V and current of 5A ensuring efficient performance.
- Featuring gold over nickel plating on phosphor bronze contacts for excellent conductivity and corrosion resistance.
- Constructed with polyester housing to withstand operating temperatures from -55°C to 125°C.
- Designed as a right angle connector with through hole mount suitable for PCB installation.
- The connector shell size is B and has a termination type of solder.
- Contact size is 20 with a pitch of 2.76 mm consistent with standard D-Sub dimensions.
- The product is manufactured in India adhering to DM series standards.
Product Description
Amphenol Communications Solutions model D25S33E6UX00LF is a high-quality DM series 25 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Female, ideal for electronic and power connector applications.
This connector is constructed with a durable polyester housing and features phosphor bronze contacts plated with gold over nickel, guaranteeing reliable electrical connections and resistance to corrosion over time.
The connector supports a current rating of 5A and a voltage rating of 300V, making it suitable for demanding power and signal transmission tasks. Its operating temperature range spans from -55°C to 125°C, allowing use in harsh environmental conditions.
Designed with a right angle orientation and through hole mounting, it is compatible with standard PCB thicknesses of 1.6 mm. The shell size is B, and the contact size is 20, ensuring compatibility with a range of devices and systems that require 25-way connectivity.
Commonly used in industrial electronics, communications equipment, aerospace, and manufacturing sectors, this connector offers robust and precise performance for signal and power connections.
The connector supports 25 contacts, providing ample connections for various applications. Rated for a voltage of 300V and current of 5A ensuring efficient performance. Featuring gold over nickel plating on phosphor bronze contacts for excellent conductivity and corrosion resistance.
Constructed with polyester housing to withstand operating temperatures from -55°C to 125°C. Designed as a right angle connector with through hole mount suitable for PCB installation. The connector shell size is B and has a termination type of solder.
Contact size is 20 with a pitch of 2.76 mm consistent with standard D-Sub dimensions. The product is manufactured in India adhering to DM series standards. This Amphenol Communications Solutions DM series D-Sub Connector is a reliable choice for electronics assembly requiring secure, standardized 25-way female connections.
Explore similar connectors and a wide range of power and signal connectors on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a voltage of 300V and a current of 5A, making it suitable for various power and signal transmission applications.
It can operate within a temperature range of -55°C to 125°C, allowing it to function in harsh environmental conditions.
This connector is designed for through hole mounting, making it suitable for PCB installation.
The contact pitch is 2.76 mm, which is consistent with standard D-Sub dimensions.
It supports 25 contacts, providing ample connections for various applications.
The housing is made of polyester, and the contacts are phosphor bronze plated with gold over nickel for improved conductivity and corrosion resistance.
The shell size of this connector is B, which is a standard size for D-Sub connectors.
This model utilizes a solder termination type, which is common for secure electrical connections.
The contact size is 20, ensuring compatibility with a range of devices and systems.
This connector is manufactured in India, adhering to DM series standards.
It is commonly used in industrial electronics, communications equipment, aerospace, and manufacturing sectors.
