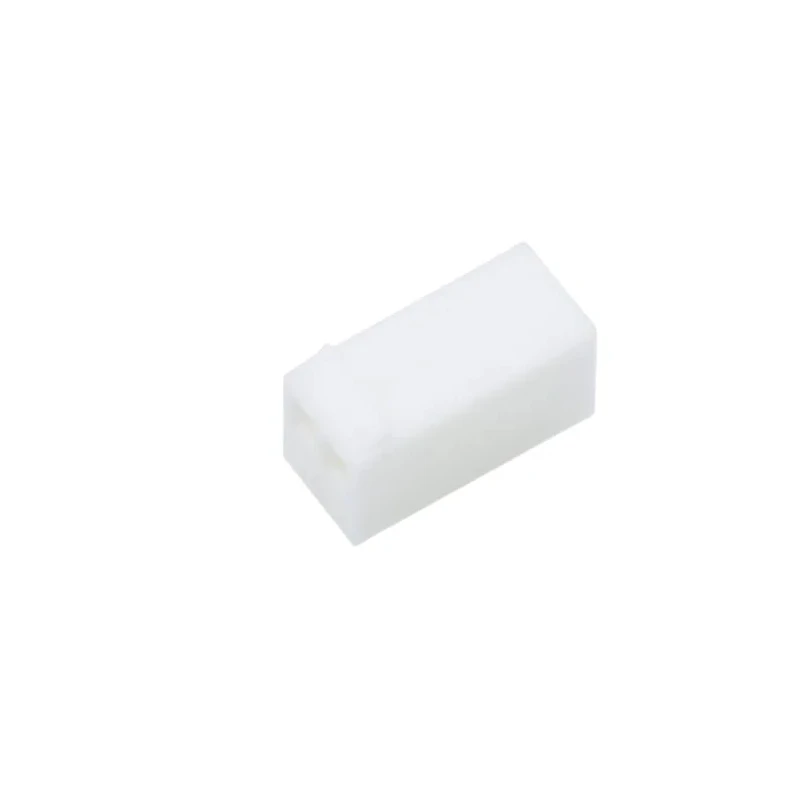

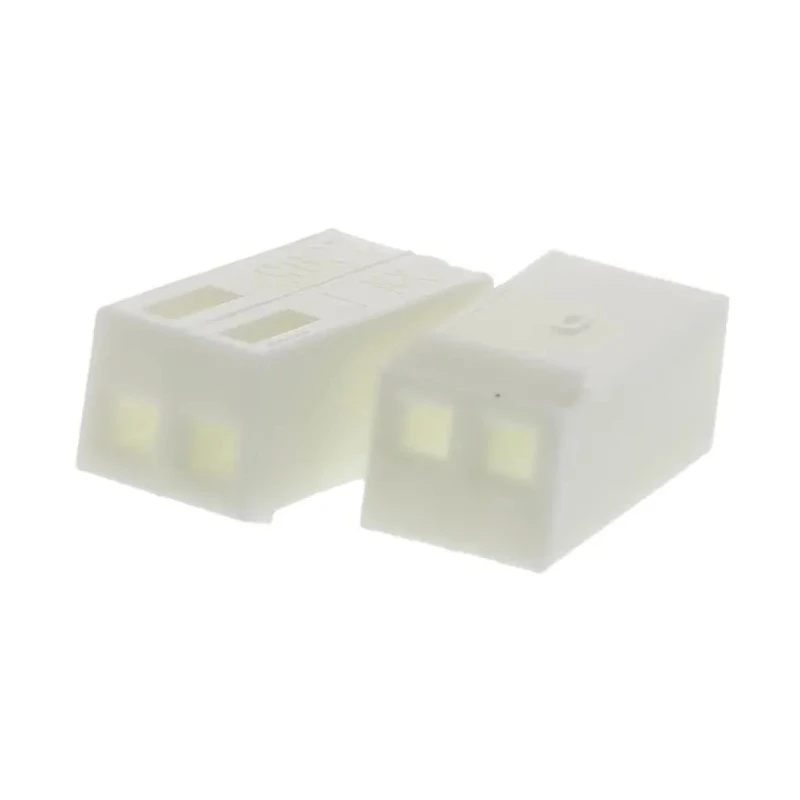

Molex 2695 Female Connector Housing Nylon 2.54 mm Pitch 2 Way 1 Row Straight 22-01-2027
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 5.64mm |
| Width | 4.82mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | 2695 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | KK Connector |
| Number of Contacts | 2 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon material ensuring electrical insulation and mechanical protection.
- Designed to accommodate 2 circuits for efficient connectivity in compact spaces.
- Compatible with Molex KK connector series for reliable board-to-wire connections.
- Features friction lock ramps integrated to maintain secure contact under vibration.
- Compact size with length 5.64 mm and width 4.82 mm allows easy integration into tight electronic assemblies.
- Ideal for applications in automotive, surveillance systems, and server management equipment.
- Single row layout simplifies wiring with a straight orientated cable mount.
- Reliable crimp terminals ensure strong electrical and mechanical connections.
Product Description
Molex 22-01-2027 female connector housing from the 2695 series is made of nylon and provides a reliable 2-way, 1-row straight cable mount with a 2.54 mm pitch. This compact connector housing measures 5.64 mm in length and 4.82 mm in width, designed specifically for integration with Molex KK connectors. Its robust nylon construction offers protection against electric shocks and mechanical abrasion, making it suitable for various industrial and electronic applications.
The housing accommodates two contacts arranged in a single row, ensuring efficient and secure wire-to-board connectivity. It includes integrated friction lock ramps that help lock the connector firmly to the PCB, preventing accidental disconnects caused by vibration or movement. The terminals crimped into this housing provide strong and reliable electrical connections.
This product is widely used in automotive electronics, surveillance systems, and server management due to its dependable performance and compact form factor. Its compatibility with the Molex KK interconnect system facilitates quick assembly and mating, improving manufacturing efficiency.
Durable nylon housing material provides excellent electrical insulation. 2.54 mm pitch supports standard header connectors. Friction lock ramps for secure PCB mounting and vibration resistance. Compact size allows installation in densely packed electronic enclosures.
Supports 2 circuits in a single-row layout. Compatible with Molex KK connector series and terminals like part number 170-7138. Reliable crimp and plug-in system reduces wiring time. Frequent usage in automotive, surveillance, and server management industries.
The Molex 2695 series is renowned for delivering simple, economical multipole connections on printed circuit boards. Using the specified insertion tools ensures precise terminal fitting. This connector housing balances performance, size, and ease of use, making it an excellent choice for demanding electronic assemblies requiring stable and secure wire-to-board connections.
Explore the Electronics Components category on EnvMart for a wide range of Connector Housings including single-row and multi-row variants to fit your specific application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex 2695 female connector housing has a pitch of 2.54 mm.
This connector housing measures 5.64 mm in length and 4.82 mm in width.
It accommodates 2 contacts arranged in a single row layout.
The housing is constructed from nylon, providing electrical insulation and mechanical protection.
This model is compatible with the Molex KK connector series.
The connector housing has a straight orientation for cable mounting.
It is suitable for applications in automotive electronics, surveillance systems, and server management equipment.
Yes, it includes integrated friction lock ramps to maintain secure contact under vibration.
The mounting type for this model is cable mount.
The series designation for this connector housing is 2695.
This connector housing is designed as a female connector.
The country of origin for this connector housing is India.
