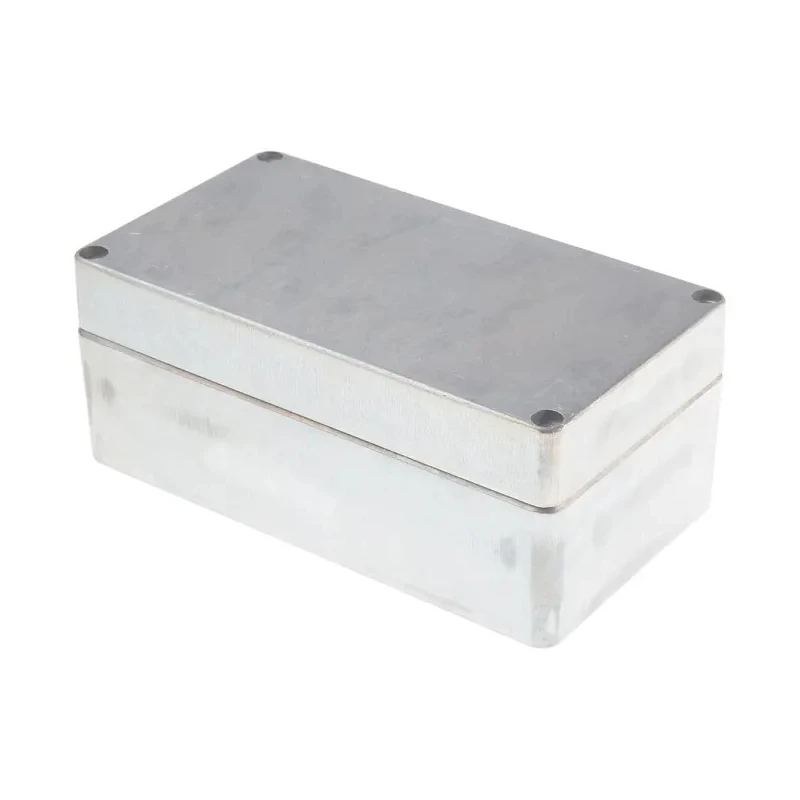

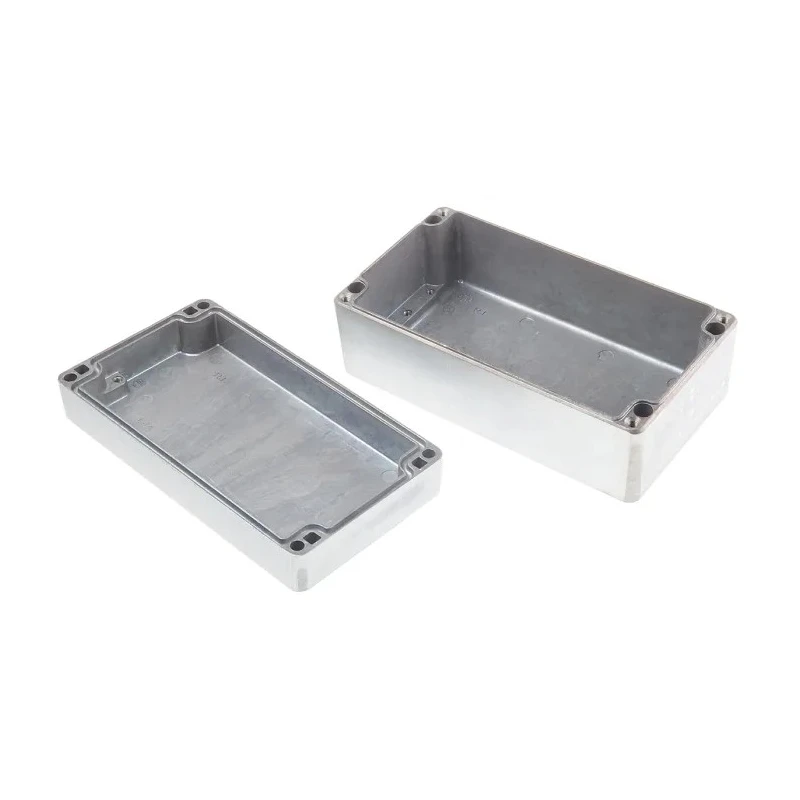

RS PRO Silver Die Cast Aluminium Enclosure IP66 Rated, 91 mm x 220 mm x 120 mm IP66

RS PRO IP66 Die Cast Aluminium Enclosure, Model IP66, features a durable die-cast aluminium body with a silver lid and dimensions 91 mm height, 220 mm length, and 120 mm width. It provides superior ingress protection rating of IP66, ideal for protecting internal electrical components from dust and water in both indoor and outdoor industrial settings.

The enclosure comes equipped with a neoprene O-Ring continuous gasket that ensures a watertight seal, captive stainless steel lid screws for secure closure, and copper-plated earthing screws for effective grounding. Its wall thickness of 3 mm provides excellent mechanical protection and robustness.

This enclosure is designed for demanding applications such as electrical installations, telecommunications, network junction boxes, and mechanical automation projects. The aluminium construction offers lightweight durability and serves as an efficient heat sink, suitable for RF projects and thermal management.

The package includes one enclosure body, one silver lid, and four cover screws for easy assembly. The product is manufactured in India and meets certifications including DIN1725, IEC 60529, NEMA 4X & 6P, UL 508A, UL 50, UL 50E, CE, MIL-STD-810G, ASTM B117, IEC 62262, and IK 60068-2-75 standards for mechanical vibration, shock, and corrosion resistance.

The enclosure body is made of die-cast aluminium with a natural silver finish. Rated IP66, providing dust-tight and protection against powerful water jets. Neoprene continuous gasket maintains watertight integrity across temperature ranges from -40 to +100 °C.

Lid and base are joined using captive stainless steel lid screws for secure fastening. Wall thickness of 3 mm ensures rigidity and mechanical strength. Includes copper-plated earthing screws for grounding electrical components safely.

Ideal for electrical, telecommunication, mechanical, and automation industrial applications. Acts as an excellent heat sink for projects involving heat management. Certified to multiple international standards ensuring product reliability and safety.

Manufactured in India under high-quality industrial production protocols.

This RS PRO enclosure is a reliable solution for protecting sensitive electrical equipment in harsh environments, making it suitable for industrial, manufacturing, telecommunications, and laboratory uses. Browse the Electronics & Electricals category on EnvMart for more high-quality enclosures and accessories.
