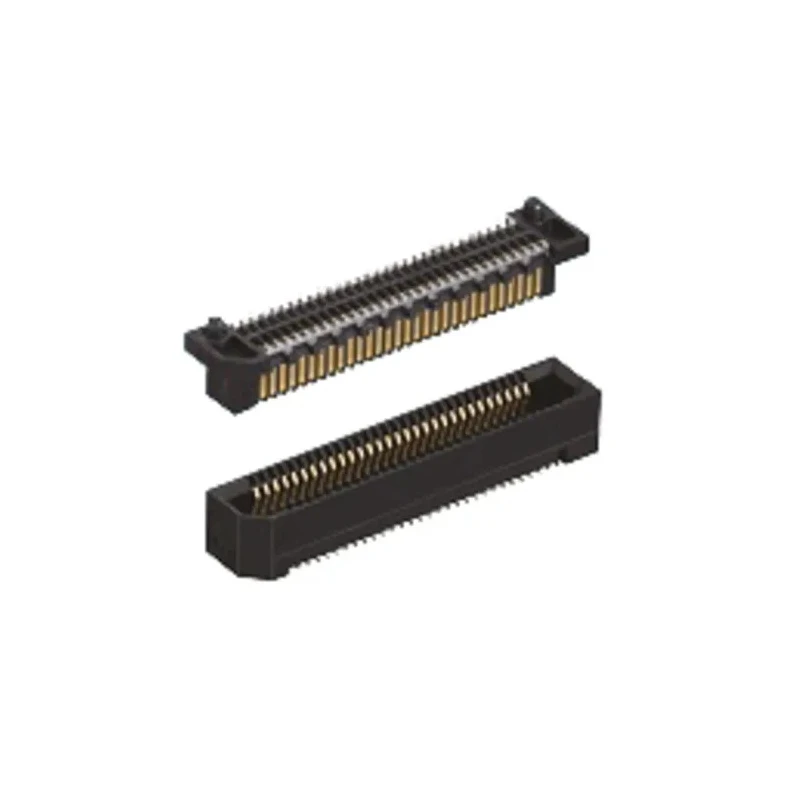

Hirose ER8 Series Straight Surface PCB Header, 60 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ER8-60P-0.8SV-5H

Hirose ER8-60P-0.8SV-5H Straight Surface PCB Header is a high-performance connector designed for board-to-board applications. Featuring 60 contacts arranged in 2 rows with a 0.8 mm pitch, this header offers compact and secure connections in electronic assemblies. The shrouded construction ensures easy and precise insertion while safeguarding contacts during mating.

The header's housing is made from durable polyamide material, providing excellent mechanical strength and heat resistance up to 125°C. The copper alloy contacts with gold plating enhance conductivity and resist corrosion, ensuring long-lasting reliability in demanding industrial environments.

Rated for 500mA current and 300V voltage, this component supports a wide temperature range from -55°C to 125°C, making it suitable for various applications including industrial automation, telecommunications, and computing equipment. The solder termination type ensures stable fixation on the PCB, and the male contact gender allows compatibility with standard mating connectors.

Additional features include multiple stacking heights (7, 9, 10, and 12 mm) to accommodate different assembly requirements, and compatibility with Samtec’s Edge Rate® technology for improved signal integrity through reduced insertion loss and crosstalk ratio. The large mating guide facilitates easy and secure connections, contributing to efficient assembly and maintenance processes.

This PCB Header is manufactured in Malaysia, ensuring high-quality production standards. It is widely used in electronic component manufacturing, industrial machinery, and communication device assembly. The ER8 series connectors by Hirose are well-regarded for their precision and reliability in professional industrial use.

The header’s shrouded design protects contacts and ensures secure mating operation. Polyamide housing supports high mechanical and thermal stresses. Gold-plated copper alloy contacts provide optimum electrical performance and corrosion resistance.

Supports continuous operation in temperature ranges from -55 to 125 degrees Celsius. Current and voltage ratings of 500mA and 300V respectively suit diverse industrial tasks. Solder termination for robust and reliable PCB mounting.

Multiple stacking height options available for flexible assembly. Compatible with Samtec Edge Rate® for enhanced electrical signal integrity. Ideal for industrial manufacturing, electronic assembly, and communications applications.
