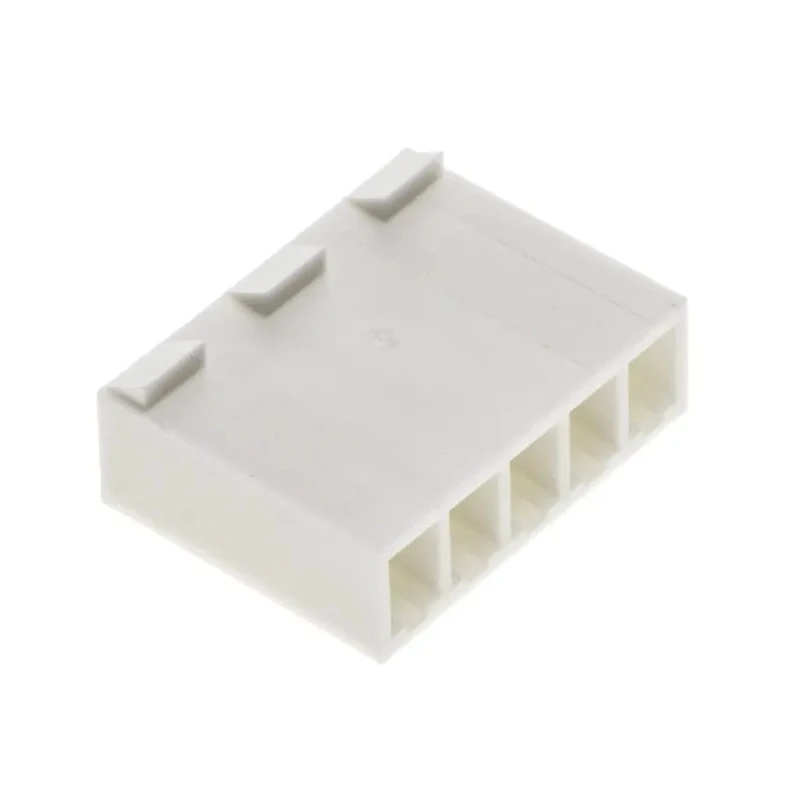

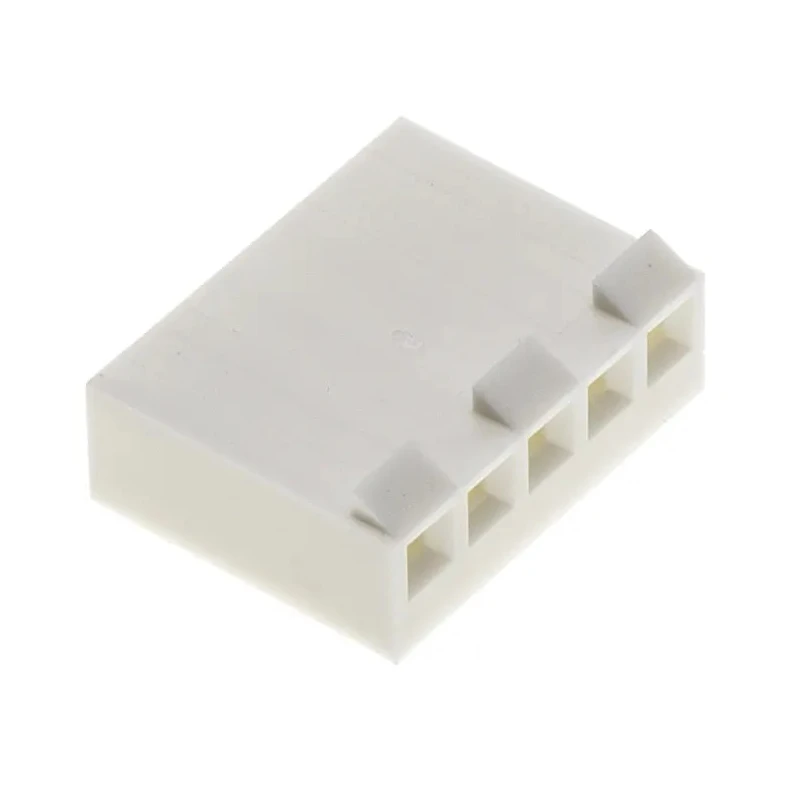

Molex KK 396 Female Connector Housing 3.96 mm Pitch 5 Way 1 Row Straight 09-50-8051
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 20.67mm |
| Width | 8.07mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | KK 396 |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| For Use With | KK Connector |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- The housing is designed for use with KK connectors ensuring broad compatibility.
- Constructed of durable polyethylene terephthalate (PET) housing material with a natural color.
- Features a locking mechanism to secure mating parts for reliable connections.
- Compact design with dimensions of 20.67 mm length and 8.07 mm width.
- Compatible with crimp termination for easy installation of contacts.
- Ideal for use in automation, robotics systems, control panels, and power management.
- Supports industrial, commercial, and consumer electronic device wire harness applications.
- Operates under CSA LR19980 and UL E29179 certifications, ensuring safety and quality.
Product Description
The Molex 09-50-8051 KK 396 female connector housing is a precision-engineered cable mount component featuring a 3.96 mm pitch and 5 contact positions arranged in a single row with a straight orientation.
Manufactured from high-quality polyethylene terephthalate (PET), the housing provides durable and flame-retardant construction with a 94V-0 flammability rating for enhanced safety in industrial environments.
This female connector housing is designed specifically for use with KK connectors, guaranteeing reliable mating and compatibility across multiple applications including automation systems, robotics, control panels, power management setups, consumer electronics, and automotive wire harnesses.
The locking mechanism integrated into the design ensures strong mechanical security to prevent accidental disconnection and improve system robustness.
Its compact dimensions of 20.67 mm length and 8.07 mm width facilitate easy integration into tight spaces while the crimp termination feature simplifies installation and maintenance.
The housing supports broad industrial applications involving power and wire-to-board connections. Certified under CSA LR19980 and UL E29179 standards, it complies with recognized safety regulations. Capable of operating reliably in temperature ranges from -40°C to +80°C for brass terminals and up to +105°C for phosphor bronze terminals, suitable for harsh environments.
The lightweight yet sturdy design optimizes system efficiency and reduces overall cable harness weight. Its natural color housing supports easy identification and inspection during assembly and troubleshooting.
Suitable for industries ranging from industrial automation and manufacturing to consumer electronics, the Molex KK 396 female connector housing 09-50-8051 is a vital component ensuring secure and efficient electrical connections.
Explore our range of Connector Housings and wire housing products in the Electronics & Electricals category on EnvMart for high-quality, trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 3.96 mm.
This model supports 5 contact positions arranged in a single row.
The dimensions of this housing are 20.67 mm in length and 8.07 mm in width.
It is constructed from polyethylene terephthalate (PET), which provides durability and flame-retardant properties.
The orientation of the Molex KK 396 housing is straight.
This model is certified under CSA LR19980 and UL E29179 standards, ensuring safety and quality in its applications.
It operates reliably in temperature ranges from -40°C to +80°C for brass terminals and up to +105°C for phosphor bronze terminals.
This connector housing is compatible with crimp termination for easy installation of contacts.
It is suitable for use in automation systems, robotics, control panels, power management setups, and consumer electronics.
This model features a locking mechanism that secures mating parts to prevent accidental disconnection, enhancing system reliability.
Its compact dimensions facilitate easy integration into tight spaces, optimizing the overall design of cable harnesses.
The connector housing is designed as a female connector.
