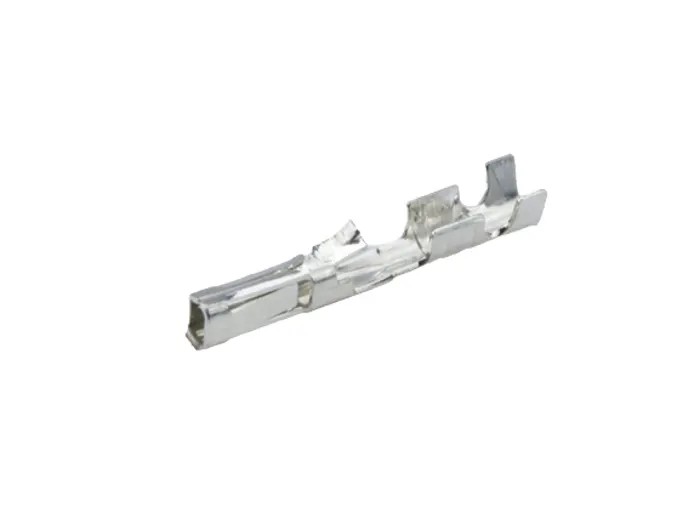

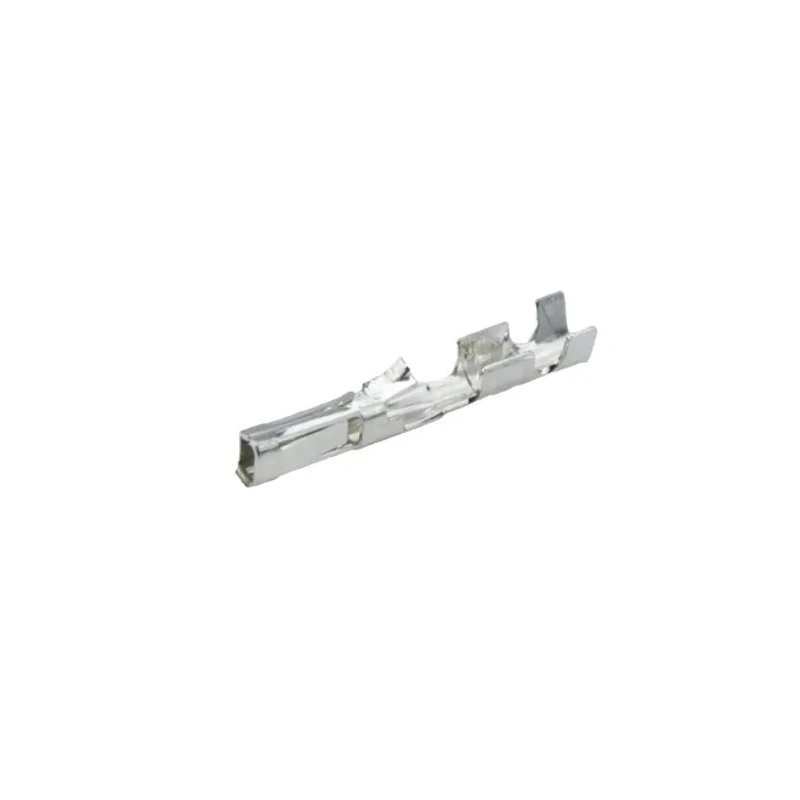

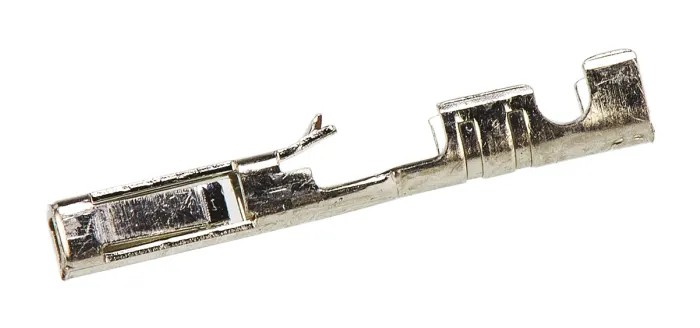

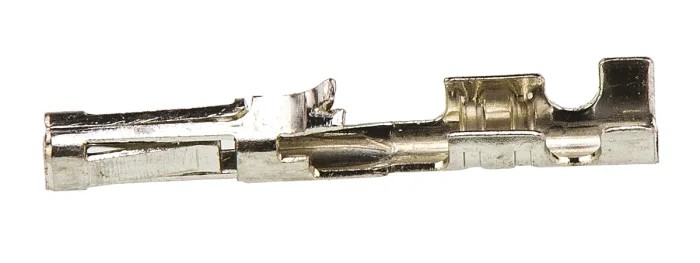

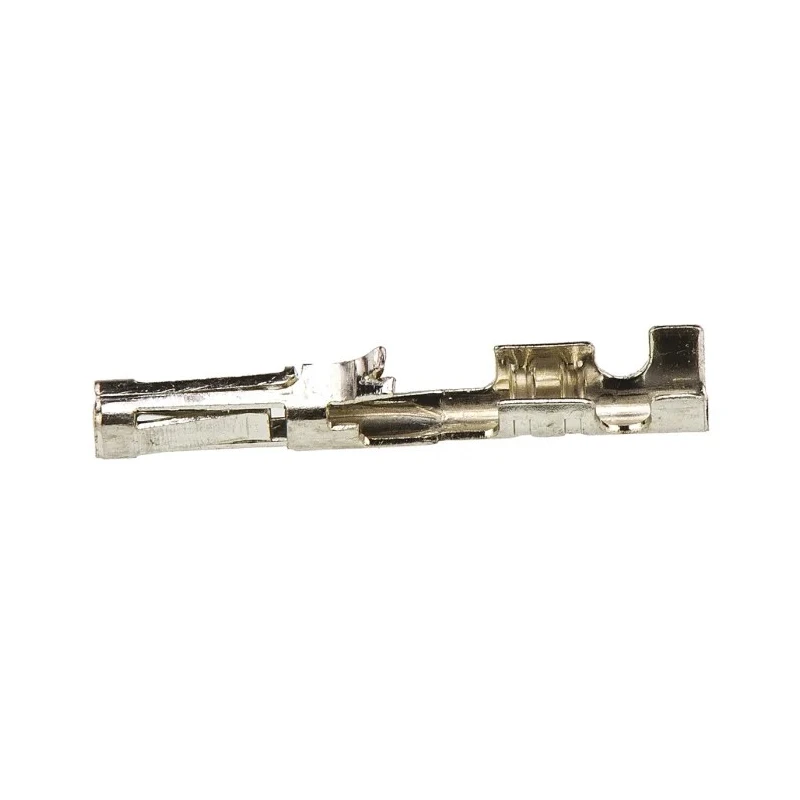

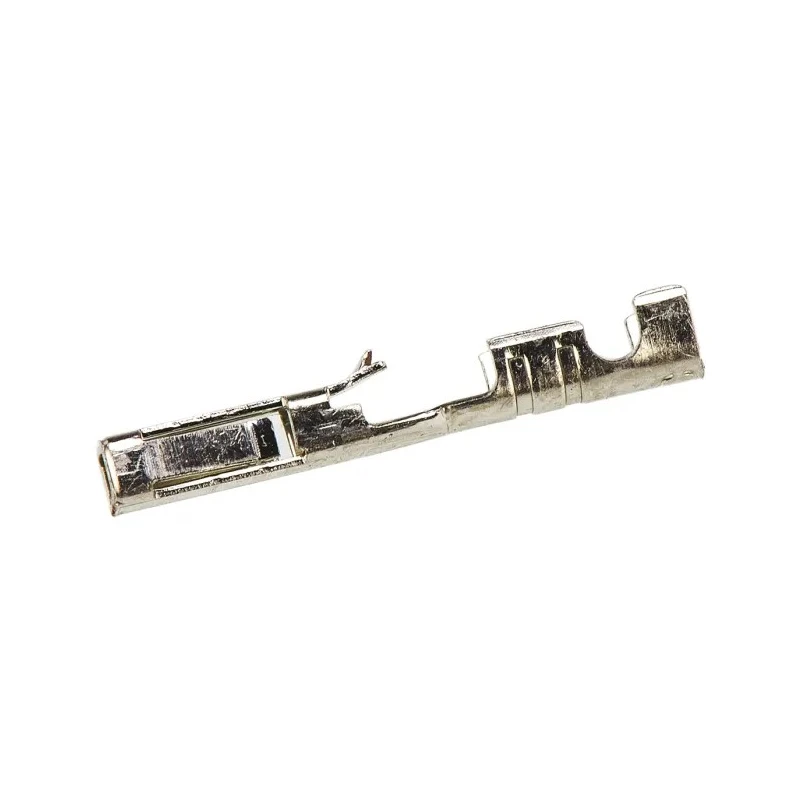

Molex Female Crimp Terminal, Tin Plated Phosphor Bronze, 3A Current, 24 to 22 AWG Wire Size, SL Series 70058 16-02-0102
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 70058 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | SL Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.3mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 30 |
| For Reference only | 70058 and 71851 Series also used with 70450 Series Housings |
Key Features
- Constructed from phosphor bronze for durability in industrial applications.
- Tin-plated contact improves corrosion resistance and long-term performance.
- Designed for a current rating of 3 amperes for reliable signal transmission.
- Operates within temperature range of -40°C to 105°C ensuring reliability in extreme conditions.
- Suitable for use with SL connector housing for secure and stable connections.
- Low contact resistance ensures efficient electrical conductivity.
- Lightweight at 0.071 grams minimizing strain on wiring set-up.
- Termination type is crimp for easy installation using standard hand crimping tools.
Product Description
Molex 16-02-0102 Female Crimp Terminal is engineered for seamless electrical connections within SL Series 70058 connector housings, accommodating wire sizes from 24 to 22 AWG and a maximum current of 3A. Its phosphor bronze construction with tin plating ensures enhanced mechanical strength and resistance to corrosion, suitable for harsh industrial environments.
Operating effectively between temperatures of -40°C and 105°C, this crimp terminal delivers reliable connectivity in diverse settings, including consumer electronics assembly, medical device manufacturing, and communication network infrastructure. The crimp termination type allows for secure and efficient installation using conventional handheld crimping tools.
Its lightweight design at just 0.071 grams reduces the overall weight burden in wiring harnesses. The low maximum contact resistance of 30 milliohms ensures efficient signal transmission, critical for sensitive electronic systems.
This crimp terminal is compatible with SL connector housings, including the 70058, 71851, and 70021 series, and is also used with 70450 Series housings. It provides a durable and stable connection solution essential for automotive, commercial vehicle, portable device, and networking applications requiring consistent performance and safety.
Made from phosphor bronze with tin plating for enhanced durability and corrosion resistance. Designed to operate within a wide temperature range from -40°C to 105°C for industrial resilience. Supports wire gauges from 24 AWG minimum to 22 AWG maximum with a current rating of 3A.
Low contact resistance of 30 milliohms ensures high efficiency in electrical connectivity. Crimp termination compatible with SL series connector housings for reliable assembly. Lightweight design at 0.071 grams minimizes mechanical strain on wiring.
Extensive applications in consumer electronics, medical devices, communication networks, and automotive sectors. Recommended use of hand crimping tools for secure installation.
This product belongs in the Crimp Contacts category, ideal for industrial, commercial, consumer electronics, and communication network applications. Explore more specialized connectors and crimp terminals in the Electronics Components section at EnvMart for reliable and efficient electrical component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is designed for a current rating of 3 amperes, ensuring reliable signal transmission.
It accommodates wire sizes from 24 AWG to 22 AWG, with a minimum wire size of 0.2 mm² and a maximum of 0.3 mm².
This model operates effectively within a temperature range of -40°C to 105°C, making it suitable for diverse environments.
It is constructed from phosphor bronze and features tin plating, which enhances its durability and corrosion resistance.
The maximum contact resistance is 30 milliohms, ensuring efficient electrical conductivity.
This crimp terminal is compatible with SL connector housings, including the 70058, 71851, and 70450 series.
It has a lightweight design, weighing just 0.071 grams, which minimizes strain on wiring setups.
It uses a crimp termination type, allowing for easy installation with standard hand crimping tools.
This terminal is suitable for applications in consumer electronics, medical devices, communication networks, and automotive sectors.
This crimp terminal is female, designed for secure connections within compatible housings.
The country of origin for this crimp terminal is India.
The tin plating improves corrosion resistance and enhances the long-term performance of the terminal in various applications.
