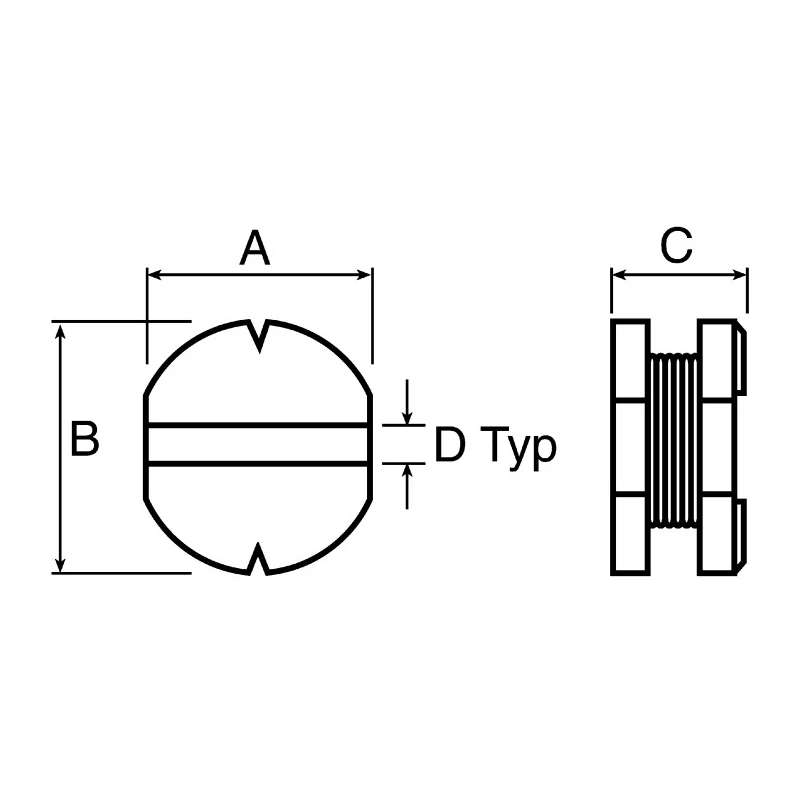

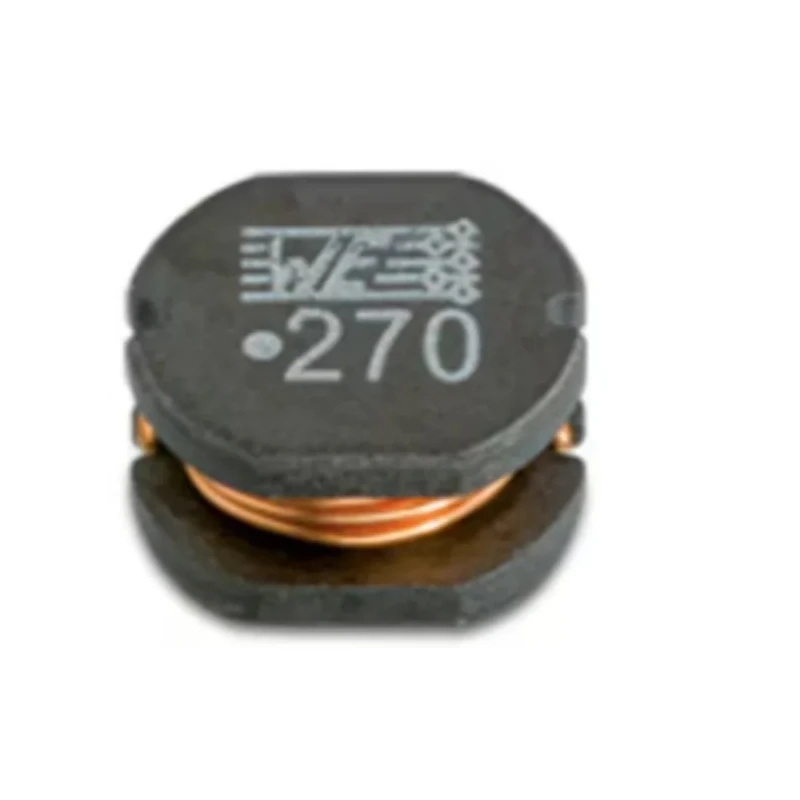

Wurth Elektronik Wirewound Surface Mount Inductor 1.2 mH ±10% 280 mA Idc 7.8mm x 5mm x 7mm WE-PD2 768775312
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 5mm |
| Operating Temperature Range | - 40°C to +125°C |
| Length | 7.8mm |
| Depth | 7mm |
| Packaging | Tape & Reel |
| Series | WE-PD2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 1.2mH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS |
| Package/Case | 7850 |
| Maximum DC Current | 280mA |
| Maximum DC Resistance | 4.5Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2.1MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Unshielded wirewound construction suitable for high-voltage applications.
- Compact dimensions of 7.8mm length, 5mm height, and 7mm depth for space-saving PCB design.
- Operates reliably within a temperature range of -40°C to +125°C.
- Compliance with automotive standard AEC-Q200 and environmental standards JEDEC JS709B, REACH, and RoHS.
- Supports a maximum self-resonant frequency of 2.1 MHz for stable performance.
- Packaged in tape and reel format for ease of automated assembly.
- Designed for surface mount termination style, compatible with reflow solder processes.
- Typical applications include buck or buck-boost converters, LED drivers, utility metering, and power supply filtering.
Product Description
Wurth Elektronik model 768775312 is a wirewound surface mount inductor featuring an inductance of 1.2 mH and a tolerance of ±10%. This unshielded power inductor is part of the WE-PD2 HV series designed for high voltage operation up to 400 Vdc.
The component is molded for enhanced mechanical durability and designed to operate within a temperature range of -40°C to +125°C. It supports a maximum direct current of 280 mA and a maximum DC resistance of 4.5 Ω, ensuring stable performance under load.
With dimensions of 7.8 mm length, 5 mm height, and 7 mm depth, it is optimized for space-constrained surface mount device (SMD) applications. The termination style is SMD surface mount, ideal for use in automated manufacturing processes including reflow soldering.
Certified to meet automotive standard AEC-Q200 as well as JEDEC JS709B, REACH, and RoHS environmental requirements, this inductor ensures compliance for automotive and industrial applications.
Typical industrial uses include non-isolated buck or buck-boost converters such as PI LinkSwitch-TN, constant current LED drivers, utility metering devices, and power supply filters. The maximum self-resonant frequency of 2.1 MHz facilitates stable operation in high-frequency circuits.
Unshielded wirewound construction allowing for high voltage applications. Compact 7.8 x 5 x 7 mm size suitable for tight PCB layouts. Wide operating temperature from -40°C to +125°C for harsh environments. Automotive AEC-Q200 compliance for reliable performance.
High self-resonant frequency of 2.1 MHz ensures minimal losses. Packaging in tape and reel supports automated assembly lines. Supports reflow solder processes with surface mount termination. Applied in LED drivers, buck converters, utility metering, power filters.
This high voltage wirewound surface mount inductor from Wurth Elektronik expands usability across industrial, automotive, electronics manufacturing, and power management domains. It offers designers a robust solution meeting stringent regulatory and performance requirements.
Browse EnvMart’s Electronics Components category for additional inductors, capacitors, and power management devices by leading brands including Wurth Elektronik, ensuring comprehensive selection for all industrial needs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1.2 mH with a tolerance of ±10%.
It has compact dimensions of 7.8 mm in length, 5 mm in height, and 7 mm in depth, making it suitable for space-constrained PCB designs.
This inductor supports a maximum direct current of 280 mA.
The maximum self-resonant frequency of this unit is 2.1 MHz, which facilitates stable operation in high-frequency circuits.
It operates reliably within a temperature range of -40°C to +125°C.
It complies with automotive standard AEC-Q200 and environmental standards JEDEC JS709B, REACH, and RoHS.
The termination style is surface mount, which is compatible with reflow solder processes.
The maximum DC resistance is 4.5 Ω.
It is packaged in tape and reel format, which supports automated assembly processes.
Typical applications include buck or buck-boost converters, LED drivers, utility metering, and power supply filtering.
It features an unshielded wirewound construction, suitable for high-voltage applications.
This model is part of the WE-PD2 series, designed for high voltage operation up to 400 Vdc.
