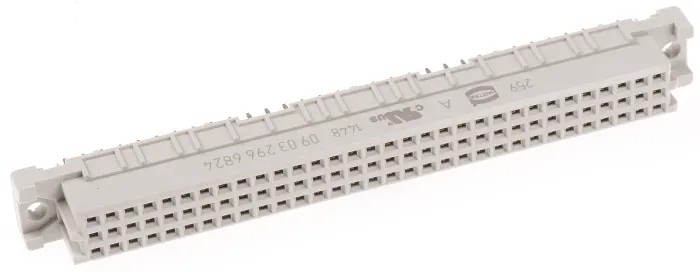

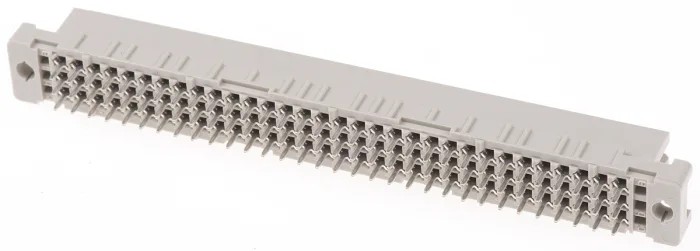

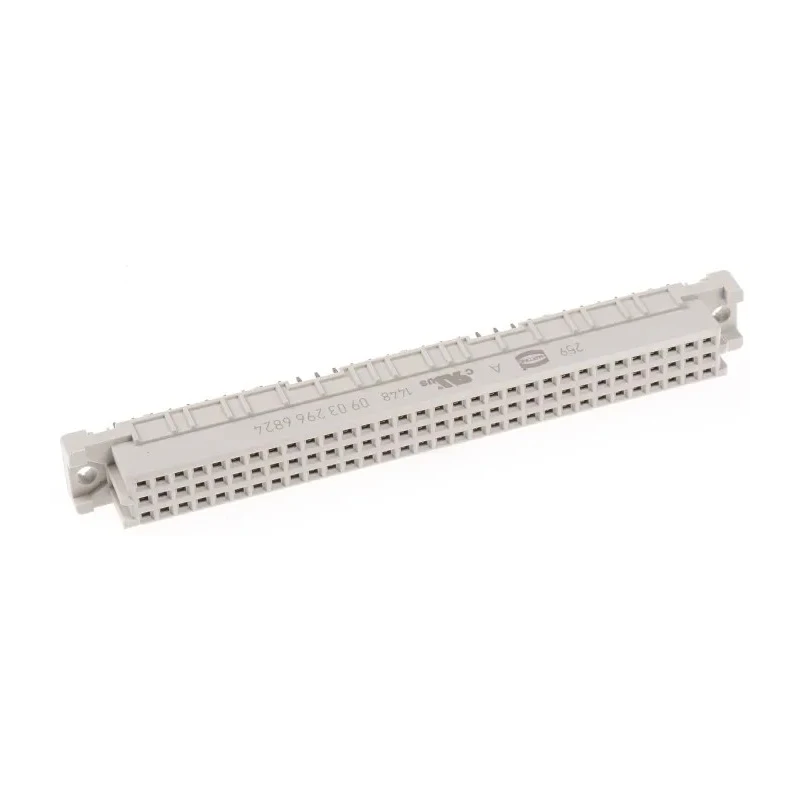

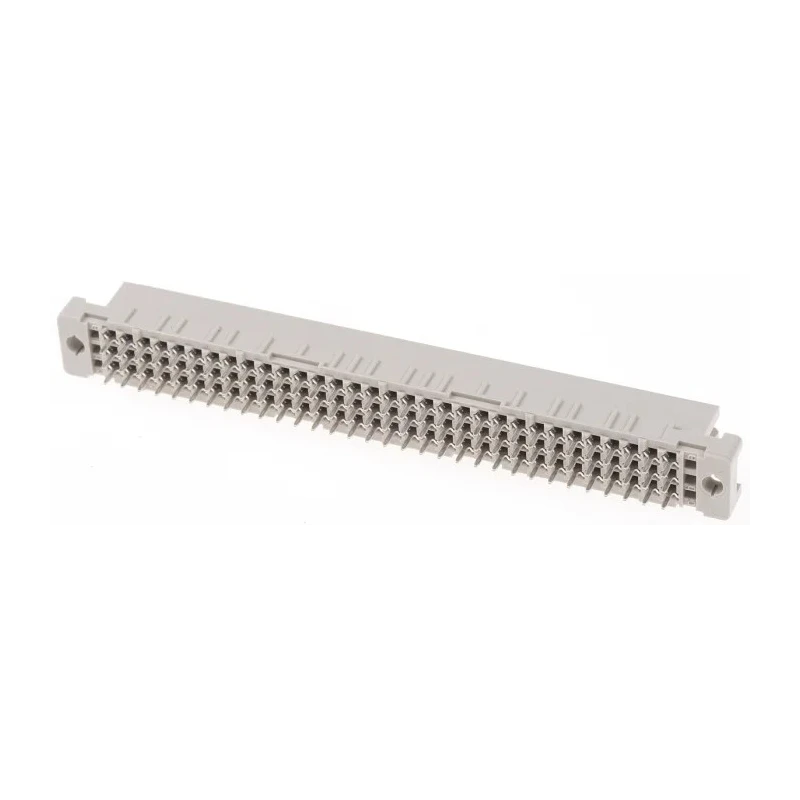

HARTING DIN 41612 96 Way 2.54 mm Pitch Type Through Hole Solder Class C2 3 Row Female Straight Connector 09032966824
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 96 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- This connector features 96 contacts arranged in 3 rows with a 2.54 mm pitch.
- The connector uses a robust through hole mount type and solder termination for secure connection.
- Contacts are gold plated over nickel ensuring reliable conductivity and corrosion resistance.
- It operates efficiently over a wide temperature range from -55°C to 125°C.
- The connector is made with polybutylene terephthalate housing for durability.
- Copper alloy contact material delivers excellent electrical performance.
- Maximum contact resistance is 20 milliohms ensuring minimal signal loss.
- Designed for female orientation with row loading A/B/C configuration.
Product Description
HARTING 09032966824 DIN 41612 Connector is a high-quality 96-way female connector with a 2.54 mm pitch designed for through hole PCB mounting. It belongs to the DIN 41612 connector series widely used in backplane and rack connections in electronic and industrial equipment.
Constructed with a polybutylene terephthalate housing and copper alloy contacts plated with gold over nickel, this connector provides excellent durability and superb electrical characteristics. The solder termination ensures a strong and reliable joint on circuit boards. It features a 3 row configuration (Class C2) with row loading A/B/C suitable for various signal and power interconnections.
Operating within an ambient temperature range of -55°C to 125°C, this connector withstands harsh industrial and environmental conditions. The maximum contact resistance of 20 milliohms offers low signal attenuation for sensitive electronic applications.
This connector is ideal for industrial automation, electronic manufacturing, communications equipment, and other applications requiring reliable PCB backplane connections. It supports a current rating of 2A and is built to meet demanding technical and durability standards.
96 contacts in 3 rows provide ample connectivity for complex circuits. 2.54 mm pitch assures compatibility with standard PCB layouts. Through hole mounting and solder termination offer robust mechanical and electrical connections.
High-quality materials ensure long lifespan and corrosion resistance. Wide temperature range suitability for versatile industrial environments. Low contact resistance enhances electrical performance. Female straight orientation simplifies mating with counterpart connectors.
Manufactured in Germany adhering to rigorous quality standards.
Add this HARTING DIN 41612 connector to your industrial electronics projects for assured performance and durability. It is a trusted component in electronics manufacturing and design environments. Explore the HARTING brand and DIN 41612 Connectors category on EnvMart for compatible products and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector features a pitch of 2.54 mm, which is standard for many PCB layouts.
It has a total of 96 contacts arranged in 3 rows.
The maximum operating temperature is 125°C, making it suitable for various industrial applications.
This model uses solder termination, ensuring a strong and reliable connection on circuit boards.
The maximum contact resistance is 20 milliohms, which helps minimize signal loss.
The housing is made from polybutylene terephthalate, which contributes to its durability.
The connector supports a current rating of 2A.
It has a straight orientation, designed for female connections.
This connector is manufactured in Germany, adhering to rigorous quality standards.
It is ideal for industrial automation, electronic manufacturing, and communications equipment requiring reliable PCB backplane connections.
The connector features a row loading configuration of A/B/C.
The contacts are made from copper alloy and are gold plated over nickel for enhanced conductivity.
