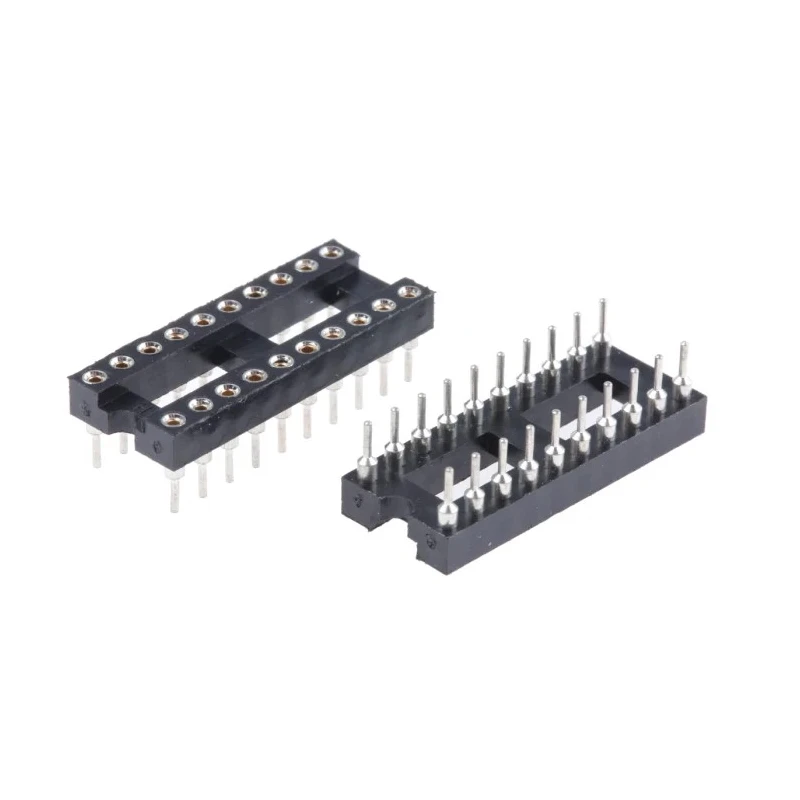

ASSMANN WSW 2.54 mm Pitch Vertical 20 Way Through Hole Turned Pin Open Frame DIL Socket, 3A AR 20 HZL-TT

ASSMANN WSW AR 20 HZL-TT is a high-quality DIL Socket designed for electronic applications requiring reliable connections and robustness. This vertical, through hole mounted IC socket has a pitch of 2.54 mm and features 20 turned pin contacts, supporting a continuous current of up to 3 amperes, ideal for a variety of PCB interfacing needs.

The socket employs an open frame design that allows easy insertion and removal of ICs, while the contact pins boast tin plating, improving conductivity and resistance to corrosion. The housing is constructed from polybutylene terephthalate (PBT), which is flame retardant and durable against mechanical stress.

Designed to operate under temperatures ranging from -40°C to 105°C, the socket meets the rigorous demands of industrial and commercial electronic assemblies. Its electrical rating of 100 volts AC and the choice of phosphor bronze and brass materials for contacts ensure reliable electrical performance and longevity in diverse environments.

Mounting is through hole with solder termination, facilitating secure attachment to printed circuit boards using conventional soldering techniques. The compact physical dimensions (25.4 mm length, 10.16 mm width, and 3 mm depth) and a row spacing of 7.62 mm optimize PCB space while maintaining accessibility.

This ASSMANN WSW model AR 20 HZL-TT is widely used in industrial electronics, laboratory equipment, instrumentation, and automation systems. Its open frame construction and vertical orientation make it suitable for layouts requiring frequent IC replacement or testing.

The socket features a 2.54 mm pitch spacing for precise component alignment. It has 20 contacts supporting a current rating of 3 amperes. The frame type is open frame with vertical orientation for easy accessibility. Contact pins are turned and plated with tin to ensure reliable electrical conductivity.

The housing is made of polybutylene terephthalate material, providing durability and flame resistance. Operating temperature range spans from -40°C to 105°C, suitable for harsh environments. Termination type is solder, compatible with standard PCB assembly methods.

Voltage rating is 100 volts AC, accommodating typical electronic circuit requirements. Physical dimensions include length 25.4 mm, width 10.16 mm, depth 3 mm, and a row width of 7.62 mm. The socket's contact material comprises phosphor bronze and brass, ensuring mechanical strength and conductivity.
