Pico Technology PicoScope 3000 Series PC Based Oscilloscope 4 Channel 200 MHz Bandwidth PicoScope 3406D MSO

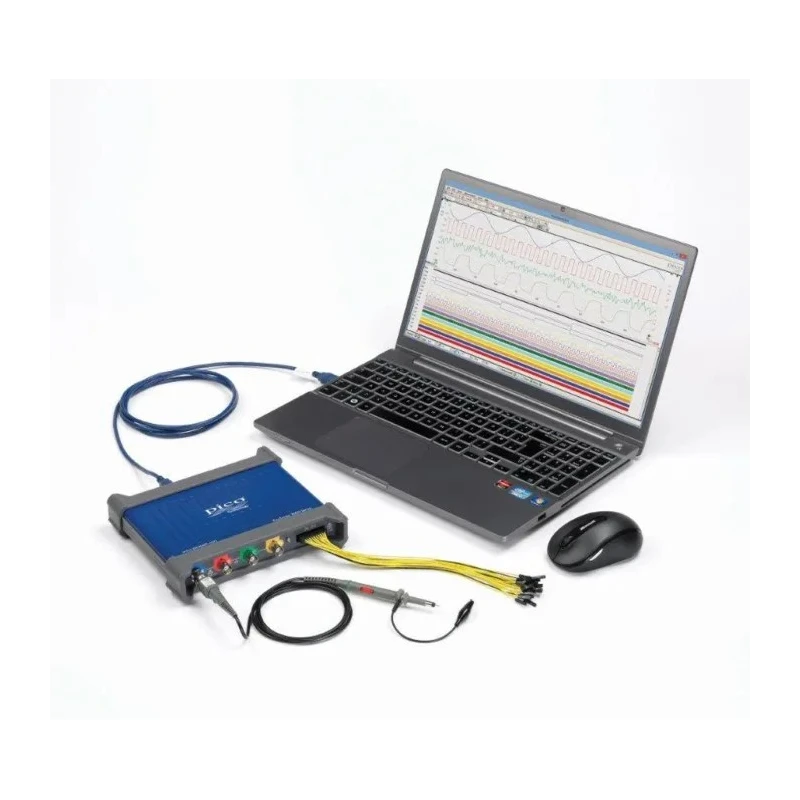

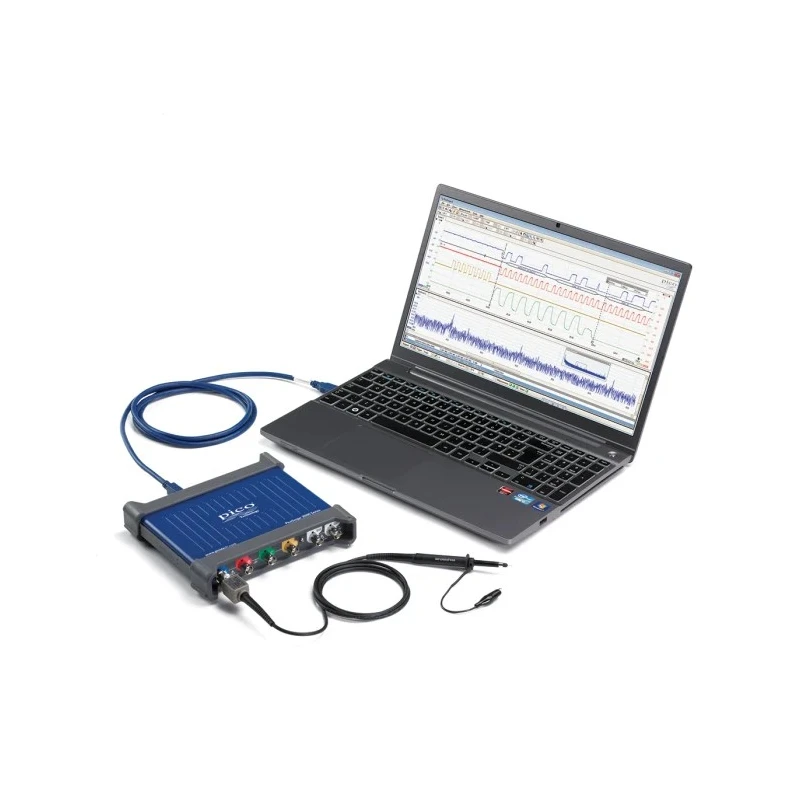

Pico Technology PicoScope 3406D MSO is a high-performance 4-channel mixed signal oscilloscope from the PicoScope 3000 Series with a 200 MHz bandwidth. This PC based oscilloscope connects via USB 3.0 to a laptop or desktop, providing a compact and portable test system suitable for a variety of industrial, laboratory, educational, and servicing applications.

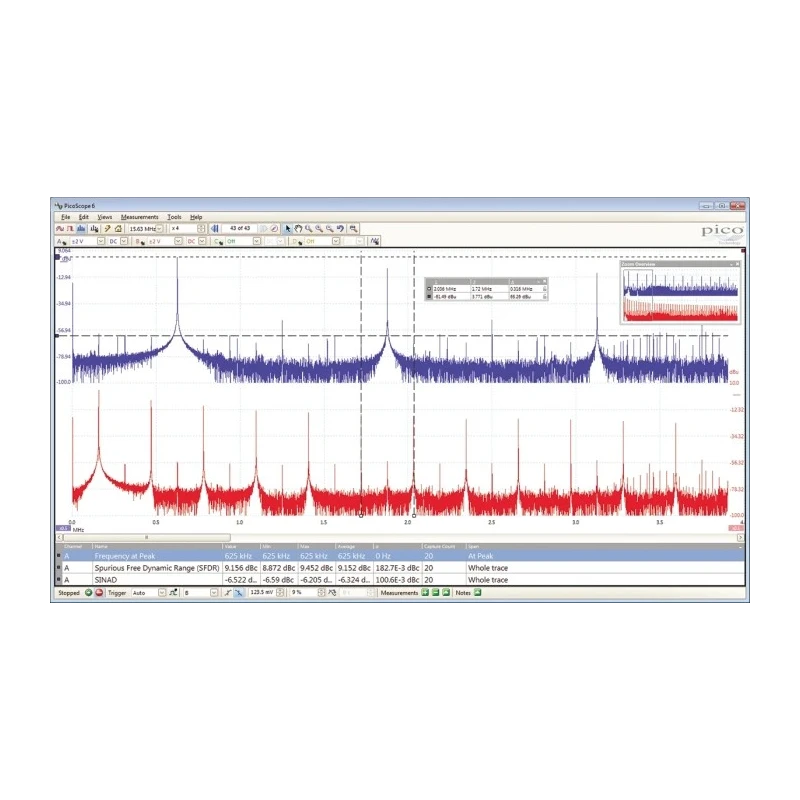

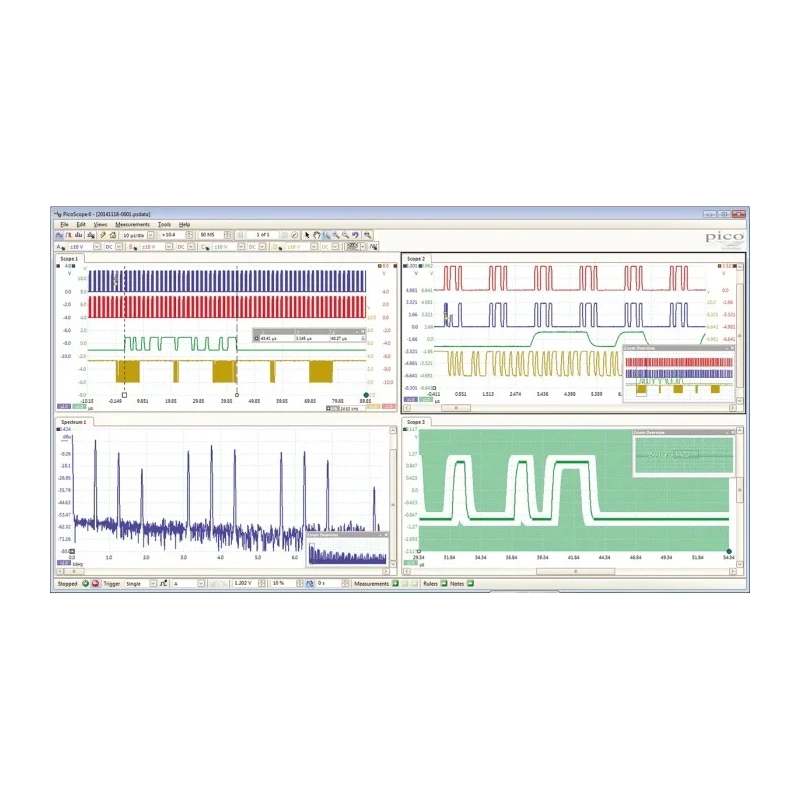

The device offers an exceptional 1 GS/s real-time sampling rate paired with a 512 MS buffer memory enabling detailed waveform capture with 100,000 waveforms per second update rates. Users benefit from advanced features such as math channels, automatic measurements, spectrum analysis, and a colour persistence display mode that enhances signal clarity.

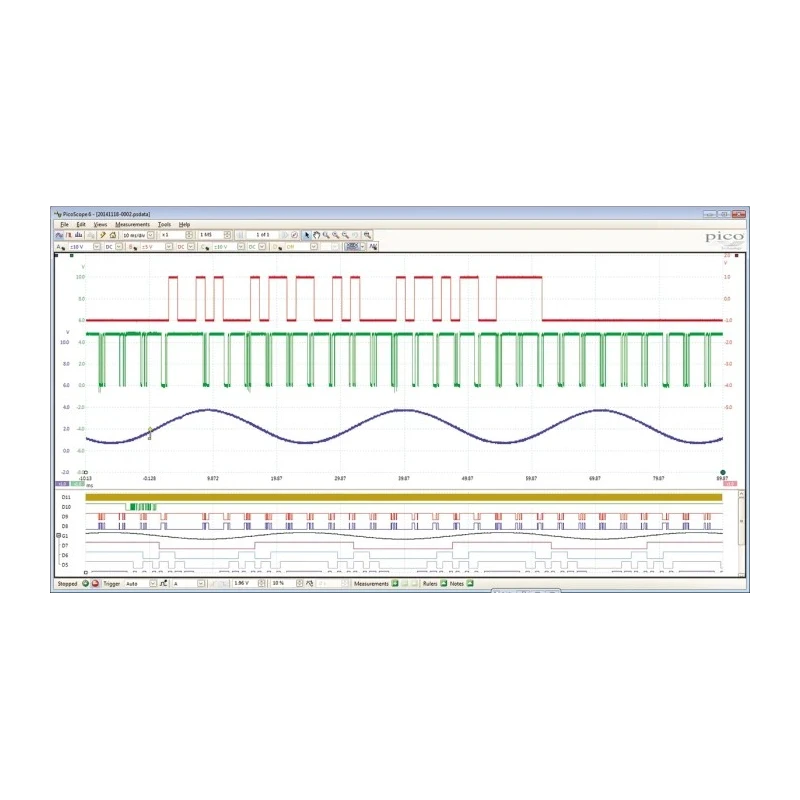

The PicoScope 3406D MSO supports comprehensive serial protocol decoding for SPI, I2C, I2S, RS-232/UART, CAN, LIN, and FlexRay protocols on up to 20 analogue and digital channels, thus accommodating mixed protocol analysis simultaneously. The advanced digital triggering capabilities include pulse width, window, dropout, channel logic, digital pattern, and other complex triggers, alongside mask limit testing and alarms to improve diagnostics and troubleshooting efficiency.

This oscilloscope is supplied with switchable x1/x10 probes, a carrying case, quick start guide, software and reference CD, USB cables, and a power adaptor which supports the 4 analogue channel models. Its compact form factor (210 mm length, 140 mm width, 40 mm height) and compatibility with PicoScope6 software offer flexible and user-friendly operation for detailed waveform analysis and data sharing across PC networks.

Compliance with EN 61010-1:2010 and EN61326-1:2006 standards ensures operational safety and electromagnetic compatibility, further validating its suitability for industrial and laboratory environments.

Applications for the PicoScope 3406D MSO include design and testing of electronic circuits, educational purposes, servicing and maintenance, monitoring and fault finding, as well as repair tasks across diverse settings within industrial, manufacturing, laboratory, and educational sectors.

1 GS/s real-time sampling rate allows detailed signal capture. 512 MS buffer memory stores extensive waveform data. Advanced serial protocol decoding supports multiple communication standards. USB 3.0 connection ensures fast data transfer and device power.

Includes math channels and automatic measurements for detailed analysis. Spectrum analysis and color persistence display modes enhance signal visualization. Provides advanced triggering features including complex digital triggers.

Compact and portable design supports ease of use in various environments. Conforms to EN 61010-1 and EN61326-1 standards for safety and EMC compliance. This product is part of EnvMart's comprehensive Oscilloscope category, offering reliable and advanced test and measurement solutions for professional users.
