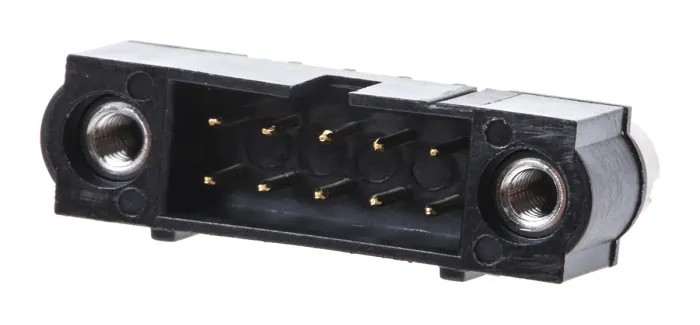

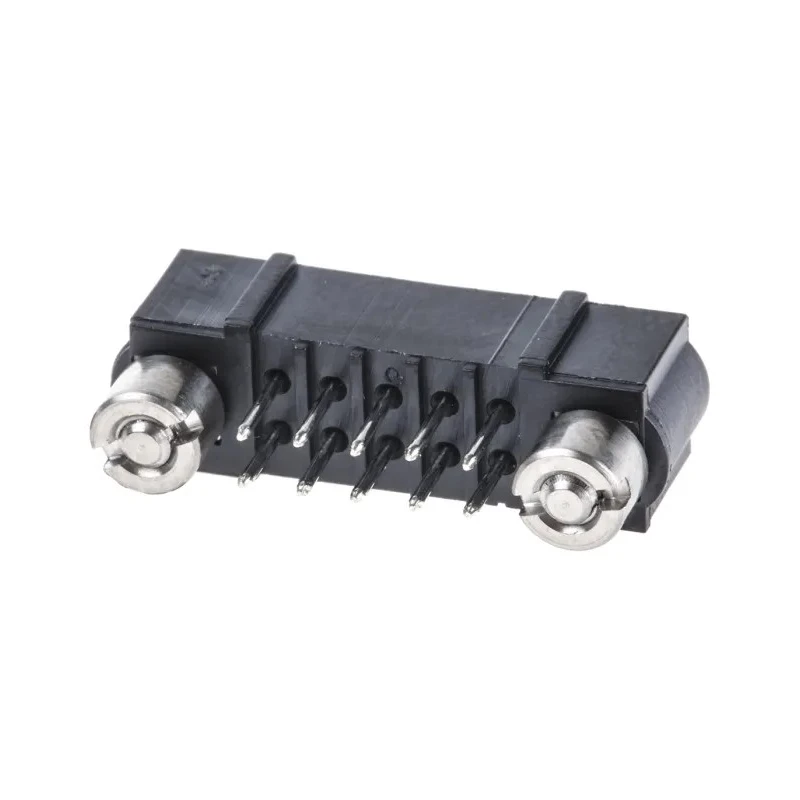

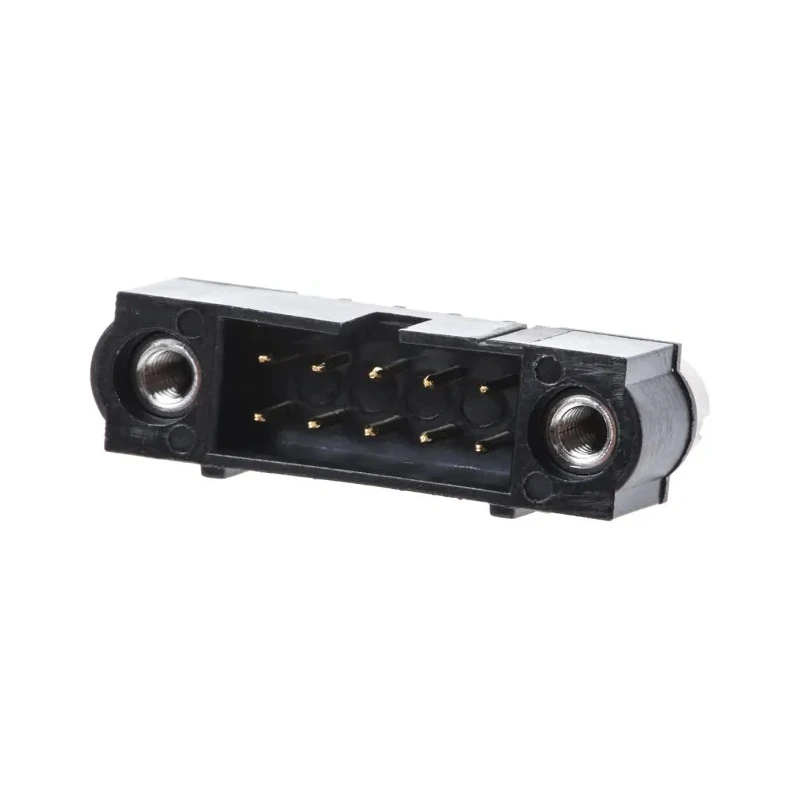

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header 10 Contacts 2 mm Pitch 2 Row Shrouded M80-5101042

HARWIN M80-5101042 Datamate J-Tek Series Straight Through Hole PCB Header is a high-quality, two-row, shrouded connector featuring 10 gold-plated phosphor bronze male contacts with a 2.0 mm pitch and 3 mm tail pin length. Manufactured in the United Kingdom, this PCB header operates reliably under an operating voltage of 120 V and current rating of 3 A.

Constructed from durable Polyphenylene Sulphide housing, this connector is designed for through-hole mounting with soldered termination ensuring strong and stable connections in electronic boards. Its shrouded design offers polarization to prevent incorrect mating and is suited for board-to-board and wire-to-board systems.

The Datamate series is engineered to withstand harsh industrial conditions with operating temperature range from -55°C to 125°C. This makes it well-suited to applications involving high vibration, shock, and acceleration loads such as industrial equipment, communication devices, and aerospace electronics.

The gold-plated contacts utilize a 4-finger clip design made from beryllium copper (high reliability) to deliver exceptional mating cycles without performance degradation. The connector meets industry standards including BS9525-F0033, MIL C 55302, and CEC 75101-008 for dependable performance.

The header features a 2.0 mm pitch with 10 male contacts arranged in 2 rows. Housing is made from robust Polyphenylene Sulphide for durability. Contacts utilize gold-plated phosphor bronze material for reliable connectivity.

Designed for through-hole mounting with solder termination and 3 mm tail pins. Operates safely under 120 V and 3 A current ratings. Temperature range supports operation from -55°C to 125°C for harsh environments. The shrouded connector provides polarization and protection against mis-mating.

Connector system supports board-to-board and wire-to-board configurations. Manufactured in the United Kingdom to maintain strict quality standards. Suitable for industrial, electronic assembly, and high-reliability applications.

This HARWIN Datamate J-Tek Series PCB Header is widely used across industrial manufacturing, electronics assembly, aerospace, and communication industries where robust, reliable electrical connections are critical. Its performance under extreme conditions, precise engineering, and long service life make it a preferred choice for high-demand electronic applications. Explore more PCB Headers and connectors in EnvMart’s comprehensive catalog.
