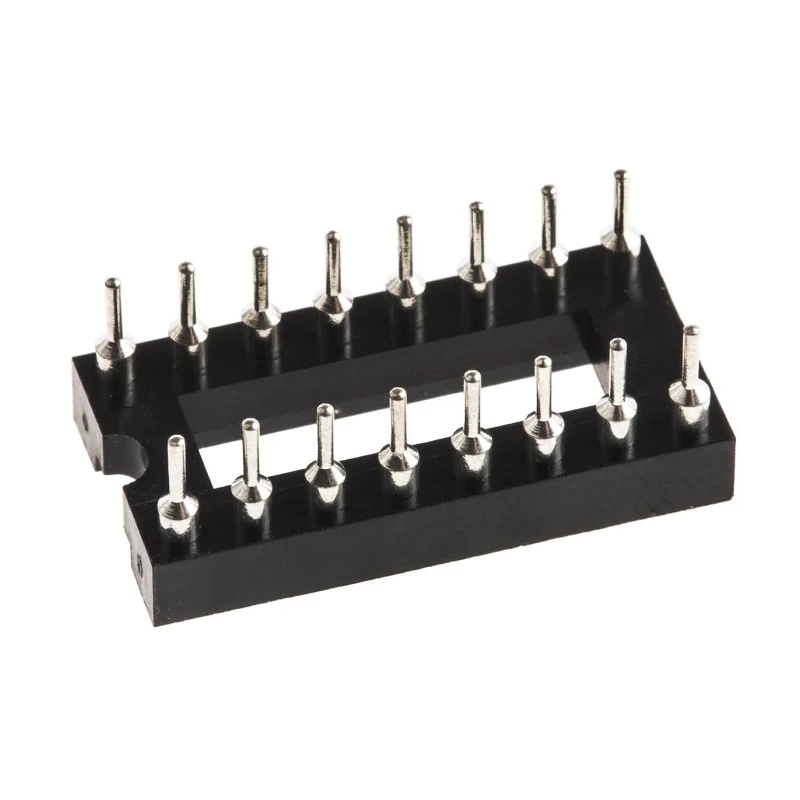

ASSMANN WSW 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 16 HZL-TT

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 16 HZL-TT

Name: ASSMANN WSW 2.54 mm Pitch Vertical 16 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 16 HZL-TT
Brand: ASSMANN WSW
SKU: 208521
Price: 0.46 USD
Availability: InStock



Category DIL Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	India
Voltage	100V ac
Brand	ASSMANN WSW
Orientation	Vertical
Current	3A
Frame Type	Open Frame
Length	20.32mm
Model	AR 16 HZL-TT
Depth	3mm
Width	10.16mm
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass, Phosphor Bronze
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.54mm
Contact Plating	Tin
Number of Contacts	16
Pin Type	Turned
Row Width	7.62mm

Key Features

Features 16 contacts in a vertical orientation for reliable connection.
Constructed with brass and phosphor bronze contact materials for durability.
Includes a black UL94V-0 PBT insulator housing for heat resistance.
Designed with tin-plated turned pins for effective solder termination.
Suitable for operation between -40°C and 105°C temperature range.
Supports a maximum voltage of 100V AC and current of 3A.
Open frame design with a row width of 7.62 mm and pitch of 2.54 mm.
Compact dimensions of 20.32 mm length, 10.16 mm width, and 3 mm depth.

Product Description

ASSMANN WSW AR 16 HZL-TT is a 16-way through hole DIL (Dual In-Line) socket designed for vertical orientation and packaged with open frame construction. This IC DIP socket features a precise 2.54 mm pitch and turned pin contacts plated with tin for excellent solderability.

Constructed from brass and phosphor bronze contact materials, it ensures reliable electrical performance combined with mechanical stability. The housing utilizes black UL94V-0 Polybutylene Terephthalate (PBT), offering superior heat resistance suitable for industrial and commercial electronic component assembly.

Rated for a maximum current of 3 amperes and ac voltage up to 100 volts, this socket operates effectively within a temperature range from -40 to 105 degrees Celsius, addressing diverse application environments including industrial automation, laboratory equipment, and electronic manufacturing.

The compact size with length 20.32 mm, width 10.16 mm, and depth 3 mm enables high-density PCB designs. The open frame construction facilitates inspection and rework when used in high-reliability systems.

Applications span areas such as integrated circuit mounting, prototyping, and signal routing within electronic assemblies. This component enhances connection durability and reduces maintenance by allowing easy IC replacement.

Features 16 contacts in vertical orientation ensuring stable connection. Durable brass and phosphor bronze contacts with tin plating. Heat-resistant UL94V-0 black PBT housing material. Turned pin solder termination type for reliable solder joints.

Operational temperature range from -40°C to 105°C. Supports 3A current and 100V AC voltage ratings. Open frame design allows easier inspection and repairs. Compact dimensions support high-density PCB layouts. Ideal for industrial, laboratory, and manufacturing electronic applications.

Non-certified but meets general quality standards for electronic sockets. Explore more electronics components and connectors in the Electronics Components category at EnvMart for reliable industrial-grade selections.
