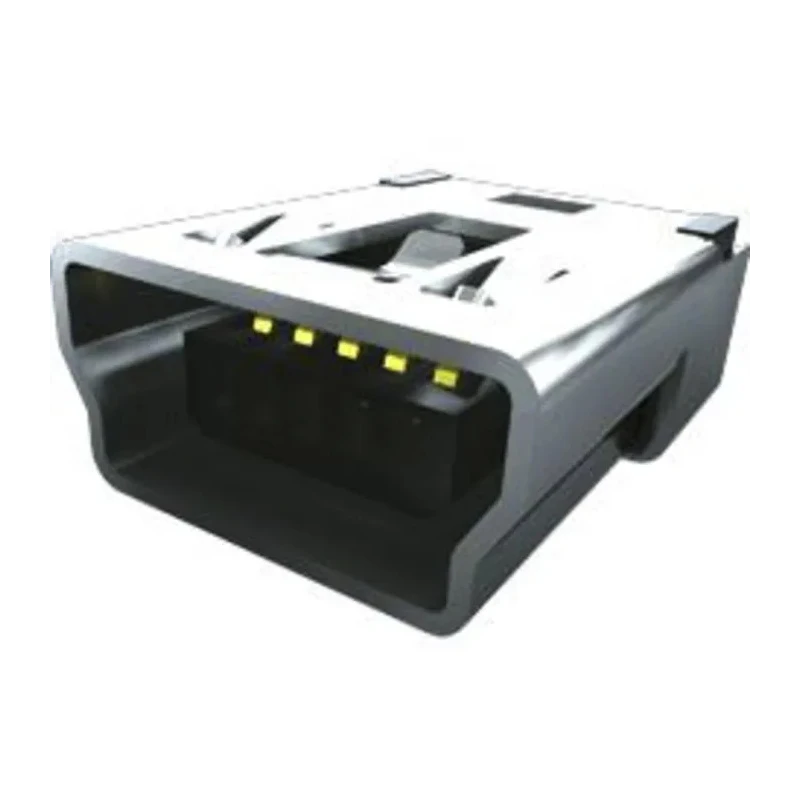

Samtec Straight Surface Mount Female 1-Port Mini USB Connector IP68 USB 2.0 MUSB-05-S-AB-SM-A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Samtec |
| Orientation | Straight |
| Model | MUSB-05-S-AB-SM-A |
| IP Rating | IP68 |
| Mount Type | Surface |
| Contact Material | Phosphor Bronze |
| Series | MUSB |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -50°C |
| Interfaces | USB 2 |
| USB Type | Mini USB |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Features a straight orientation female connector with one port for mini USB applications.
- Rated for an IP68 ingress protection ensuring high resistance to dust and water.
- Supports USB 2.0 standard with a voltage rating of 30V.
- Constructed with phosphor bronze contact material for durability and conductivity.
- Suitable for surface mount installation with solder termination type.
- Operates reliably in temperatures ranging from -50°C to 85°C.
- Exclusive MUSB series offering cost-effective flash gold plating options available.
- Ideal for embedded electronic devices requiring secure and waterproof USB connections.
Product Description
Samtec MUSB-05-S-AB-SM-A is a surface mount mini USB connector designed for industrial and electronic component applications. Featuring a straight orientation female interface and rating IP68, this USB 2.0 connector provides a secure, durable, and waterproof connection for devices operating up to 30 volts.
The connector is built with phosphor bronze contacts ensuring excellent conductivity and mechanical strength. Its solder termination type promotes reliable PCB mounting, suitable for a wide range of electronics manufacturing and assembly processes.
Operating over a temperature range from -50°C to 85°C, this connector maintains performance in harsh environmental conditions, ideal for commercial, industrial, and laboratory instrumentation.
One port female mini USB connector supporting USB 2.0 protocol for high-speed data transfer. IP68 rated for dust-tight and water immersion protection, advancing device reliability. Constructed with phosphor bronze contact material for lasting electrical performance.
Solder termination for secure, industrial-grade mounting on circuit boards. Operating temperature range suitable for both cold and warm climates, from -50°C to 85°C. Designed for surface mount applications optimizing assembly efficiency.
Part of the MUSB series by Samtec offering variants including standard and high-retention connectors. Ideal for embedded computing, industrial control, instrumentation, and consumer electronics. No hazardous area certifications, suitable for standard industrial environments.
Enhances device longevity and connection integrity in demanding electronic applications.
Samtec provides a variety of quality connectors, and this MUSB-05-S-AB-SM-A model is a dependable solution for designers and engineers seeking a robust mini USB connector. Browse more in the USB Connector category at EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this connector is 30V.
This model has an IP68 rating, ensuring it is dust-tight and can withstand water immersion.
It operates reliably in temperatures ranging from -50°C to 85°C.
This connector features one port for mini USB applications.
It uses a solder termination type for secure mounting on circuit boards.
The contacts are constructed from phosphor bronze, which provides good conductivity and mechanical strength.
Yes, it is designed for surface mount installation, optimizing assembly efficiency.
It supports the USB 2.0 specification for high-speed data transfer.
This connector is part of the MUSB series by Samtec.
The connector has a straight orientation for easy installation.
The connector is manufactured in India.
It is suitable for embedded computing, industrial control, instrumentation, and consumer electronics.
