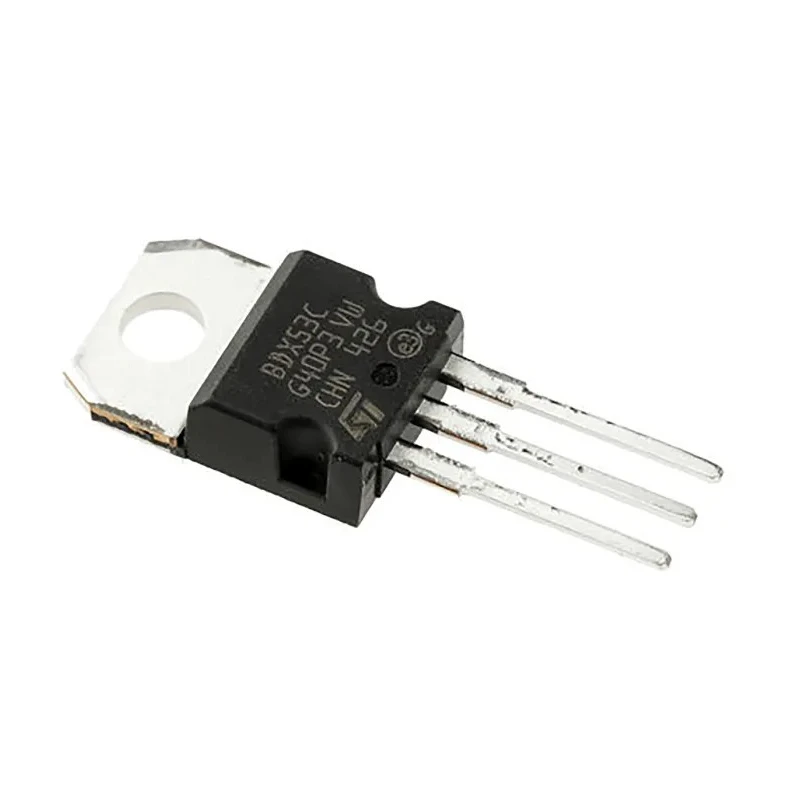

STMicroelectronics NPN Darlington Transistor, 8 A, 100 V, HFE 750, 3-Pin TO-220 Package BDX53C

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics NPN Darlington Transistor, 8 A, 100 V, HFE 750, 3-Pin TO-220 Package BDX53C

Name: STMicroelectronics NPN Darlington Transistor, 8 A, 100 V, HFE 750, 3-Pin TO-220 Package BDX53C
Brand: STMicroelectronics
SKU: 183923
Price: 0.6 USD
Availability: InStock



Category Darlington Transistor Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	9.15mm
Length	10.4mm
Model	BDX53C
Mount Type	Through Hole
Series	BDX53C
Maximum Operating Temperature	150°C
Package Type	TO-220
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Continuous Collector Current Ic	8A
Maximum Collector Emitter Voltage Vceo	100V
Number of Elements per Chip	1
Minimum DC Current Gain hFE	750
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Emitter Saturation Voltage VceSAT	2V
Maximum Collector Base Voltage VCBO	100V
Maximum Collector Cut-off Current	0.2mA
Maximum Power Dissipation Pd	60W
STMicroelectronics BDX53C NPN Darlington Transistor, 8 A 100 V HFE	750, 3-Pin TO-220Brand: STMicroelectronics

Key Features

Supports maximum continuous collector current of 8 amperes.
Maximum collector-emitter voltage rating of 100 volts.
Minimum DC current gain (hFE) of 750 ensures efficient amplification.
Housed in a durable 3-pin TO-220 through-hole package for reliable mounting.
Maximum power dissipation of 60 watts suitable for high power applications.
Operates across a temperature range from -65°C to 150°C.
Designed with NPN transistor polarity, supporting a maximum emitter-base voltage of 5 volts.
Collector-emitter saturation voltage capped at 2 volts for efficient switching.

Product Description

STMicroelectronics BDX53C is a powerful NPN Darlington Transistor designed for applications requiring high current and voltage capabilities. It supports a continuous collector current of up to 8 amperes and can withstand collector-emitter voltages up to 100 volts. The device features a high minimum DC current gain (hFE) of 750, making it suitable for amplification and switching tasks in various electronic circuits.

This transistor is packaged in a 3-pin TO-220 through-hole format, facilitating easy mounting on PCB boards. It has a maximum power dissipation rating of 60 watts, allowing it to handle significant power levels without damage. The BDX53C transistor operates reliably in extreme temperatures ranging from -65°C up to 150°C, ensuring durable performance in demanding industrial and commercial environments.

With a maximum emitter-base voltage of 5 volts and a collector-emitter saturation voltage of 2 volts, this component is optimized for efficient transistor switching with minimal power loss. Its compact physical dimensions (height 9.15 mm and length 10.4 mm) make it suitable for tight PCB layouts and constrained spaces.

The robust design and electrical characteristics of the STMicroelectronics BDX53C Darlington transistor make it ideal for power management, amplification, switching, and other applications across industrial, electronics manufacturing, power supply, and automotive sectors.

Supports a maximum continuous collector current of 8 amperes. Maximum collector-emitter voltage of 100 volts. High current gain ensures effective signal amplification. Reliable TO-220 package for easy through-hole mounting.

Rated for up to 60 watts of power dissipation. Wide operating temperature range from -65°C to 150°C. NPN polarity for conventional transistor operation. Compact dimensions suitable for various PCB designs. Explore more semiconductor products like this BDX53C Darlington Transistor at EnvMart, your industrial electronic components specialist.
