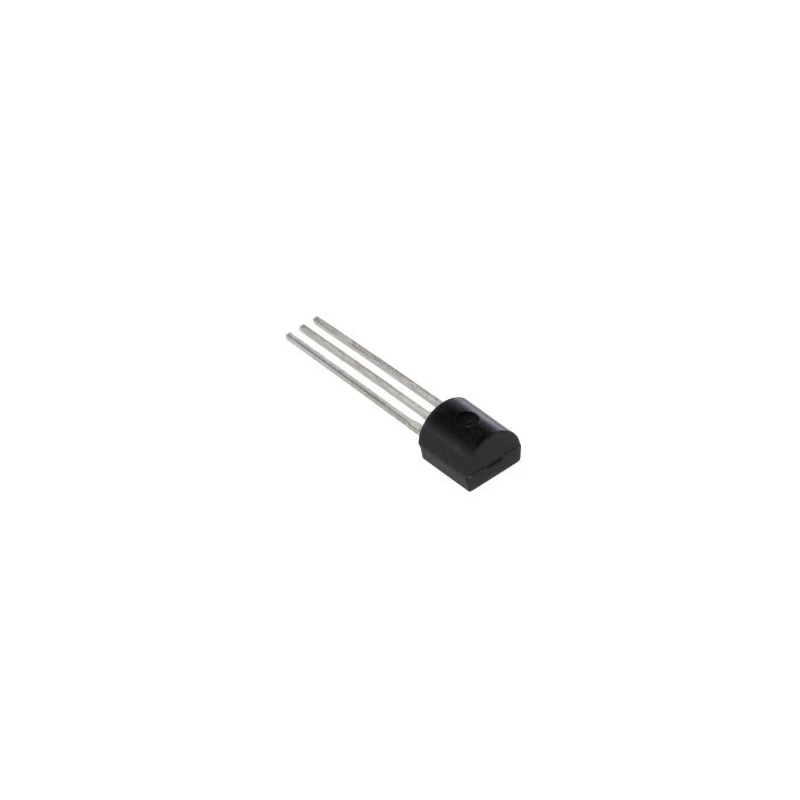

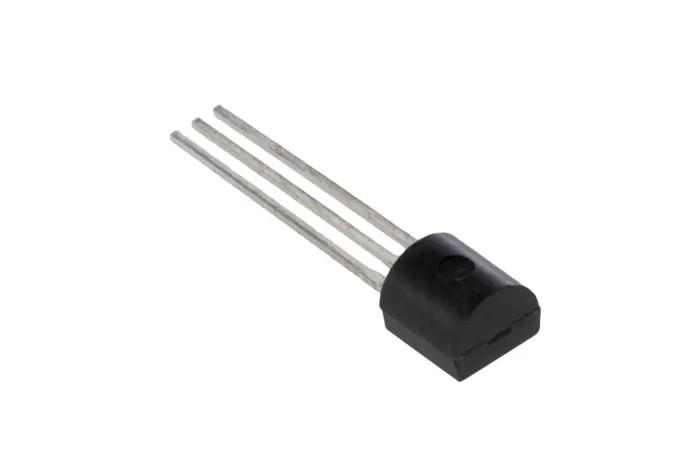

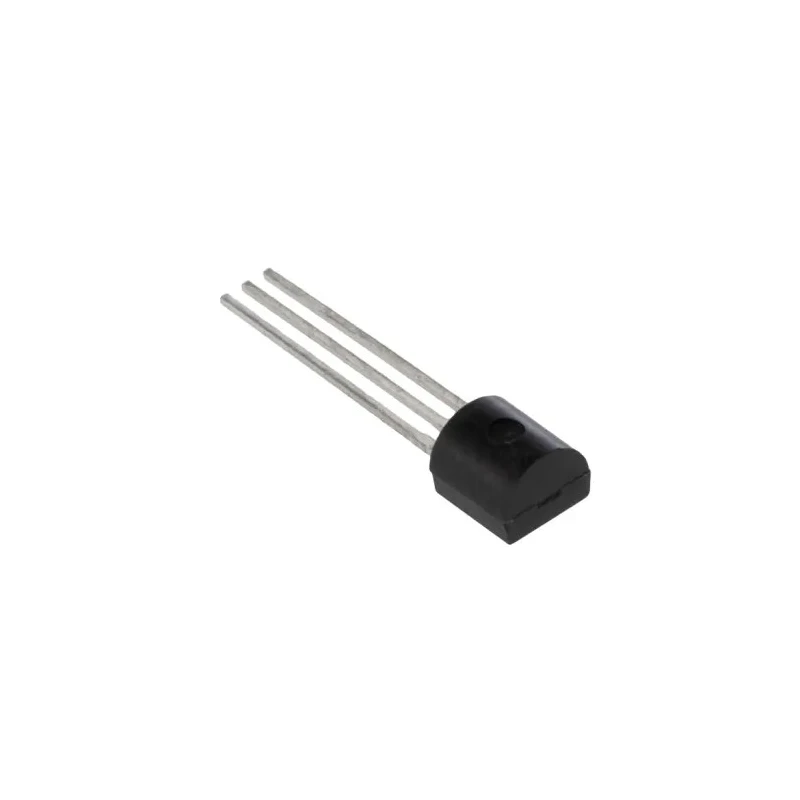

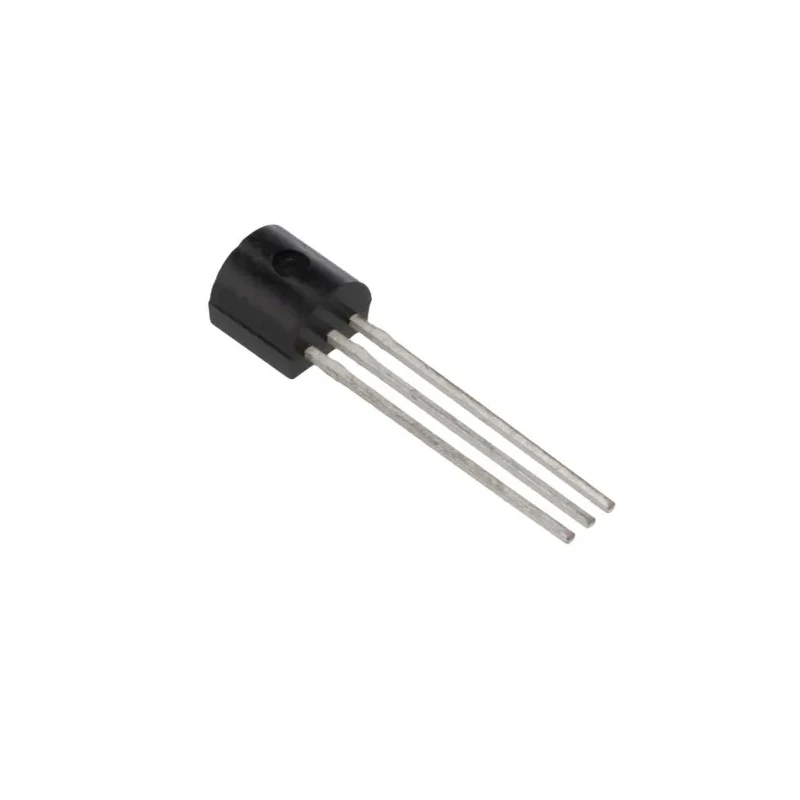

Microchip 5-Channel Low Dropout Voltage Regulator MCP1702-3302E/TO, 3.3V, 250mA, TO-92 3-Pin
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.62mm |
| Length | 4.71mm |
| Model | MCP1702 |
| Width | 3.62mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MCP1702 |
| Output Current | 250mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Load Regulation | 1 % |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Regulator Type | Low Dropout Voltage |
| Number of outputs | 5 |
| Maximum Input Voltage | 13.2V |
| Output Voltage | 3.3V |
| Quiescent Current | 2μA |
| Line Regulation | 0.1 %/V |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 2.7V |
| Pin Count | 3 |
Key Features
- Provides regulated 3.3V output for advanced electronic applications.
- Low dropout design ensures efficient voltage regulation even at low input voltages.
- Supports up to five independent outputs for versatile circuit designs.
- Maximum output current of 250mA suitable for low to moderate power requirements.
- Compact TO-92 3-pin form factor facilitates through-hole mounting.
- Positive polarity and fixed output type for straightforward integration.
- Wide input voltage range from 2.7V to 13.2V enables usage across various systems.
- Excellent line regulation at 0.1%/V and load regulation at 1% for consistent performance.
Product Description
Microchip MCP1702-3302E/TO is a 5-channel low dropout voltage regulator engineered to provide a fixed 3.3V output efficiently, with a maximum output current of 250mA. Its TO-92 package with 3 pins makes it ideal for through-hole mounting in diverse electronic design environments. The MCP1702 series is known for superior efficiency and reliable operation, making it an excellent choice for projects requiring clean, dependable power regulation.
This regulator supports up to five outputs, offering flexibility for multi-channel circuits. Its low dropout structure ensures minimal voltage loss between input and output, which is essential for battery-operated or low-voltage designs. The quiescent current of only 2μA ensures low standby power consumption, contributing to overall energy efficiency.
With a wide input voltage range from 2.7V to 13.2V, the MCP1702-3302E/TO fits a variety of industrial, commercial, and laboratory applications. The component is RoHS compliant, demonstrating adherence to environmental responsibility and safety standards. Its positive polarity and fixed output design facilitate seamless integration into power supply sections of circuit boards and embedded devices.
Key technical advantages include excellent line regulation at 0.1%/V and load regulation at 1%. This ensures stable voltage delivery regardless of fluctuations in supply or load, resulting in reliable performance in precision electronics, sensor interfaces, data acquisition systems, and portable instrumentation.
The TO-92 form factor and 4.62mm height, 4.71mm length, and 3.62mm width offer easy PCB placement and compatibility with standard sockets. Operating temperature range from -40°C to 125°C guarantees robust operation under varied temperature conditions. Its high current capability is well-suited for powering microcontrollers, peripheral modules, and miniature actuators.
The MCP1702-3302E/TO is widely used in industrial automation, laboratory instrumentation, manufacturing controls, and commercial electronics requiring precise voltage regulation. This advanced regulator meets the demands of modern electronics for reliability, space efficiency, and long service life.
Explore more industry-leading voltage regulators and Microchip solutions in the EnvMart 'Voltage Regulator IC' category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is fixed at 3.3V.
It can provide a maximum output current of 250mA.
The input voltage range for this unit is from 2.7V to 13.2V.
This model supports up to five independent outputs.
The dimensions are 4.62mm in height, 4.71mm in length, and 3.62mm in width.
It comes in a TO-92 package type, suitable for through-hole mounting.
The quiescent current is only 2μA, contributing to low standby power consumption.
It has excellent line regulation at 0.1% per volt.
The load regulation is specified at 1%.
The operating temperature range is from -40°C to 125°C.
Yes, this model is RoHS compliant, adhering to environmental responsibility standards.
It has a positive polarity design, which facilitates straightforward integration.
