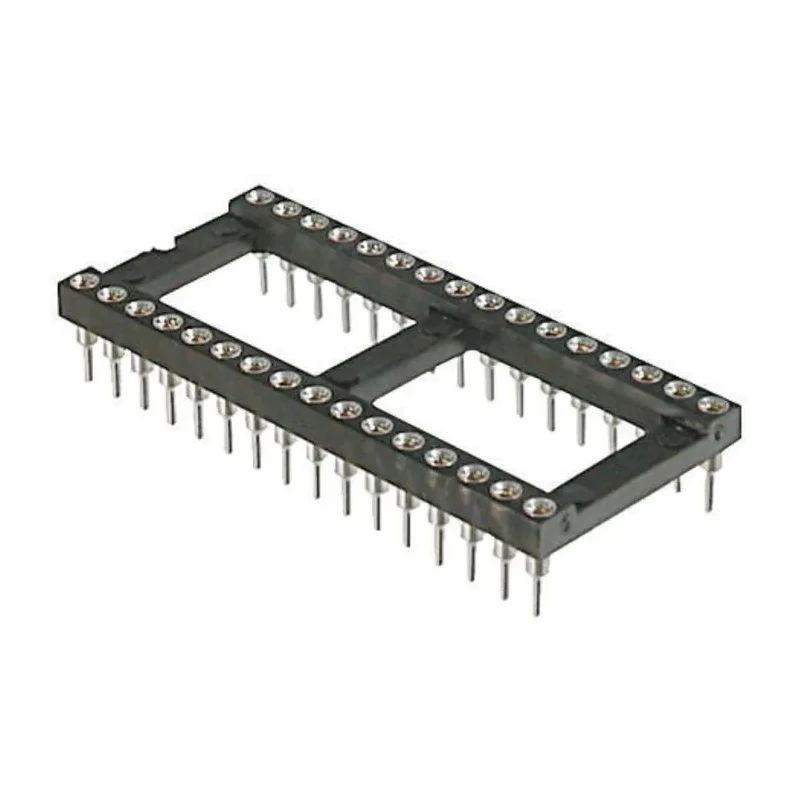

ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 24 HZL/7-TT

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 24 HZL/7-TT

Name: ASSMANN WSW 2.54 mm Pitch Vertical 24 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 24 HZL/7-TT
Brand: ASSMANN WSW
SKU: 208520
Price: 1.68 USD
Availability: InStock



Category DIL Socket Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	100V ac
Brand	ASSMANN WSW
Orientation	Vertical
Current	3A
Frame Type	Open Frame
Length	30.48mm
Model	AR 24 HZL/7-TT
Depth	3mm
Width	10.16mm
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze, Brass
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.54mm
Contact Plating	Tin, Gold
Number of Contacts	24
Pin Type	Turned
Row Width	7.62mm

Key Features

This socket features 24 turned pin contacts suitable for vertical mounting.
It has an open frame design with a black UL94V-0 PBT housing.
Contact materials are phosphor bronze and brass with tin and gold plating for durability and conductivity.
The socket supports solder termination and operates between -40°C and 105°C temperature range.
The product is designed for electronic component applications requiring reliable IC DIP socket interfacing.
Manufactured in China with a robust build quality for industrial and laboratory environments.

Product Description

ASSMANN WSW AR 24 HZL/7-TT is a precision vertical 24 way DIL socket featuring a 2.54 mm pitch and open frame construction. This through hole mount socket uses turned pin contacts to ensure stable, reliable connectivity for electronic components.

The housing material is polybutylene terephthalate (PBT) rated UL94V-0, providing excellent insulation and flame retardance for safety in various industrial and laboratory applications. Tin and gold plated phosphor bronze and brass pins deliver high conductivity and resistance to corrosion.

The socket supports a continuous current rating of 3A and withstands up to 100V AC, making it suitable for demanding electronic designs and circuits. Operating temperature range from -40°C to 105°C ensures performance in varied conditions.

With dimensions optimized for compact PCB mounting, including a length of 30.48 mm, width of 10.16 mm, and depth of 3 mm, this socket fits well on standard circuit designs requiring vertical orientation and solder termination.

The robust open frame design facilitates easy inspection and soldering while contributing to durability in assembly lines and manufacturing setups. This product is ideal for use in electronic component manufacturing, testing, and repair operations.

Applications include laboratory instrumentation, electronic prototyping, industrial control systems, and telecommunications equipment. Manufactured in China, ASSMANN WSW ensures high manufacturing and material quality standards consistent with industry requirements.
