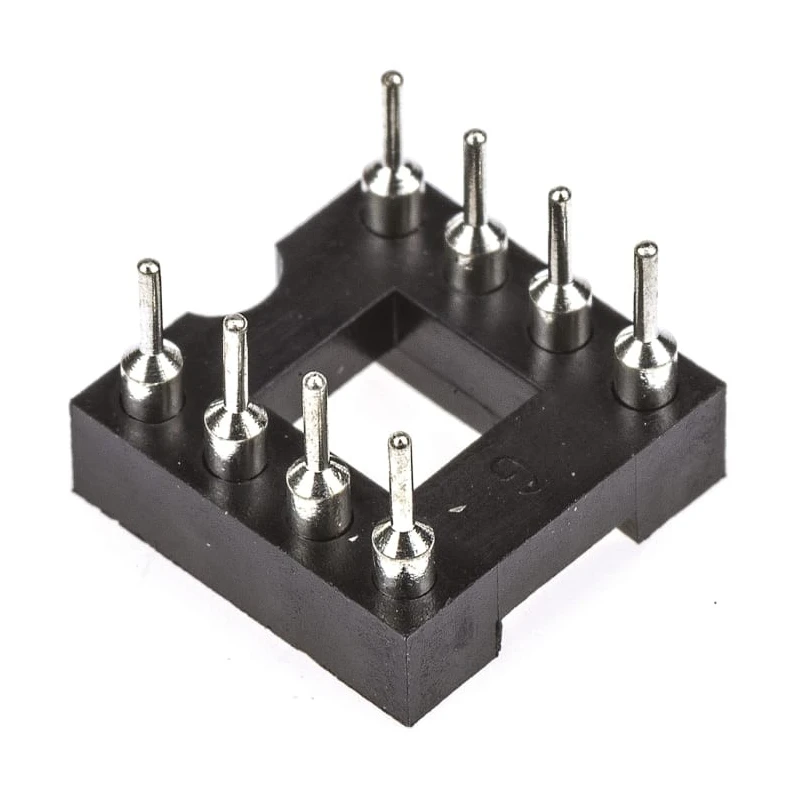

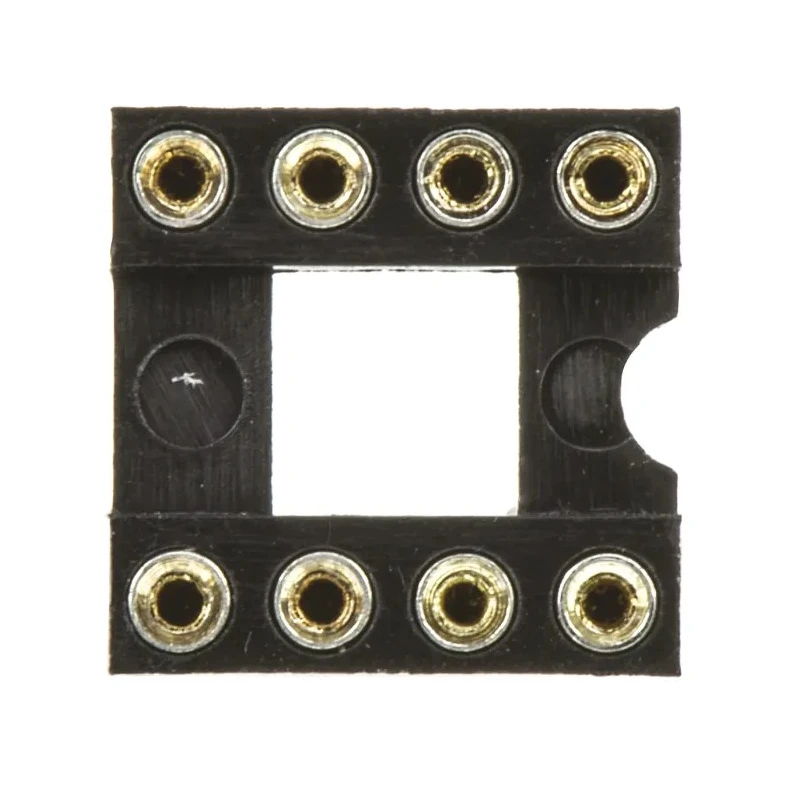

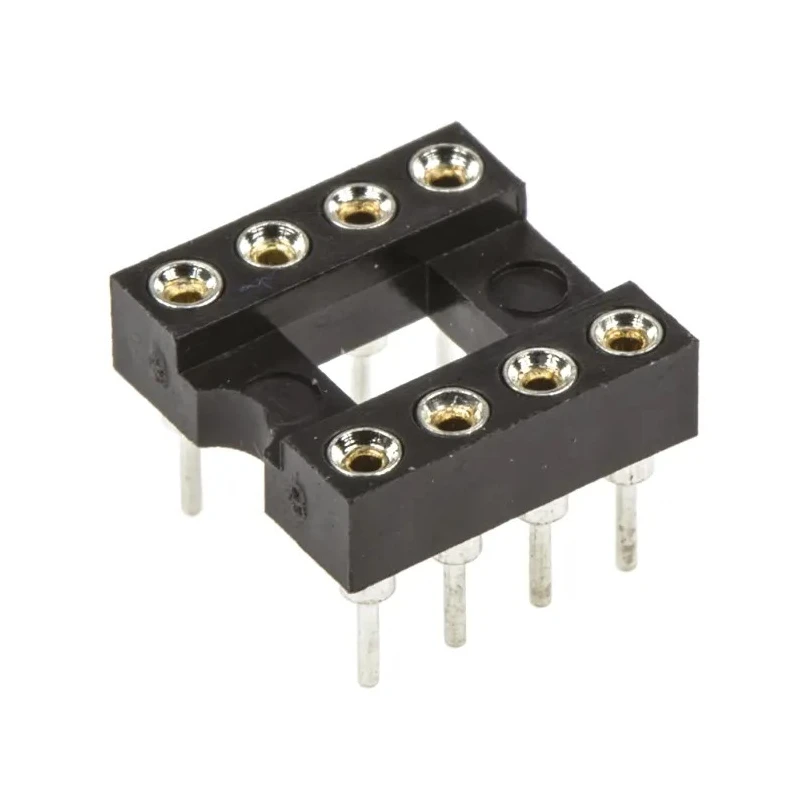

ASSMANN WSW 2.54 mm Pitch Vertical 8 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 08 HZL-TT

ASSMANN WSW AR 08 HZL-TT is a precision engineered 8 way Dual Inline (DIL) socket with a 2.54 mm pitch and vertical orientation designed for through hole mounting on printed circuit boards (PCBs). It is ideally used in electronics applications requiring reliable, low resistance connections for integrated circuits with a current rating of 3 amps and a voltage rating of 100 volts AC. The open frame design facilitates easy inspection and soldering of circuit components.

Constructed with high-quality phosphor bronze and brass contacts, each pin is turned and tin plated to enhance corrosion resistance and ensure long term durability under industrial conditions. The housing is molded from a black Polybutylene Terephthalate (PBT) thermoplastic that meets the UL94V-0 flammability standard, providing excellent electrical insulation and mechanical robustness. The socket maintains stability and performance within a wide operating temperature range from -40°C up to 105°C.

The contact layout includes 8 pins spaced at 2.54 mm pitch with a row width of 7.62 mm, and overall socket dimensions of 10.16 mm in length and width with a 3 mm depth, making it compatible with standard DIP IC packages and prototyping boards. Solder termination type allows for secure and efficient connection to PCB copper pads, optimizing manufacturing efficiency and mechanical strength of the mounted device.

This DIL socket is commonly utilized in industrial electronics assembly, laboratory instrument fabrication, automotive electronics, communication devices, and consumer electronic product development where frequent insertion and extraction of ICs is required without damaging the PCB or IC leads.

Features 8 contact points providing reliable electrical connections. Made with phosphor bronze and brass contact materials for excellent conductivity. Vertical orientation with open frame design suits versatile PCB mounting.

Mount type is through hole ensuring secure soldering and mechanical stability. Contacts are tin-plated for corrosion resistance and durability. Operates safely up to 100V AC with 3A current rating. Termination type is solder compatible with standard PCB assembly processes.

Operates within a temperature range of -40°C to 105°C for broad environmental tolerance. Compact dimensions with 10.16 mm length and width, depth 3 mm and 7.62 mm row width. Housing is manufactured from black Polybutylene Terephthalate (PBT) complying with UL94V-0 flammability standards.

This product supports electrical and industrial manufacturing uses, especially for PCB prototyping and assembly industries. Explore the complete range of DIL Sockets and electronic connectors with ASSMANN WSW products on EnvMart for enhanced industrial supply solutions.
