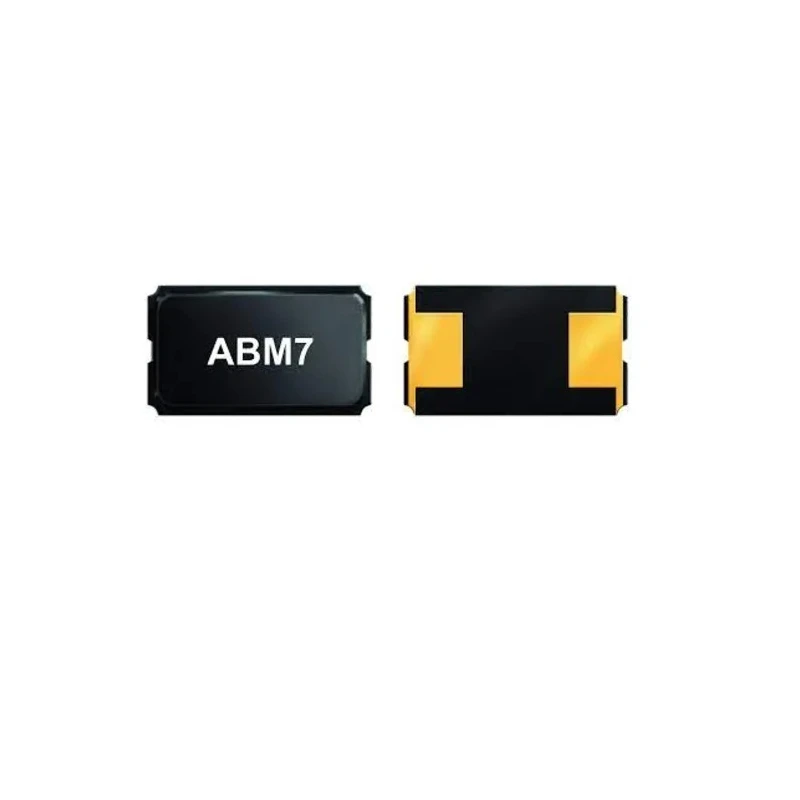

Abracon 19.6608 MHz ±50 ppm Crystal 2-Pin Surface Mount Ceramic Package ABM7-19.6608MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.4mm |
| Length | 6mm |
| Model | ABM7-19.6608MHZ-D2Y-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABM7 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 19.6608MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- Standard frequency of 19.6608 MHz ensures precise oscillation.
- Ceramic package provides superior reliability and heat resistance.
- Low profile with 1.4 mm height suitable for high-density PCB applications.
- Surface mount package type enables automated assembly with tape & reel packaging.
- Operating temperature range from -10°C to 60°C for industrial applications.
- Series resistance is 50Ω ensuring stable signal quality.
- Pin count of 2 pins compatible with various microprocessor circuits.
- RoHS compliant ensuring environmental safety.
Product Description
Abracon ABM7-19.6608MHZ-D2Y-T is a precision 19.6608 MHz surface mount crystal designed for stable and accurate frequency generation in electronic systems. Its ceramic surface mount package measures 6 mm by 3.5 mm with a low profile height of 1.4 mm, making it ideal for high-density PCB layouts in industrial, communications, and computing applications.
The crystal offers a frequency tolerance and stability of ±50 ppm, ensuring reliable performance over typical temperature ranges from -10°C to 60°C. Its series resistance of 50Ω contributes to signal quality and circuit stability. The device has 2 pins and is packaged in tape and reel for efficient automated assembly processes.
The ceramic package construction offers superior heat resistance and reliability, providing long-term operational stability even in demanding industrial environments. This RoHS-compliant crystal unit is part of the ABM7 series, which is known for its quality and suitability in communication equipment, modems, industrial controllers, and other electronic devices requiring precise timing signals.
Standard frequency of 19.6608 MHz ensures precise oscillation. Low height of 1.4 mm supports compact PCB design. Ceramic surface mount package ensures heat resistance and durability. Operating temperature range -10°C to 60°C covers industrial conditions.
Series resistance of 50Ω for stable signal generation. Two-pin configuration compatible with standard circuits. Tape & reel packaging facilitates automated assembly. RoHS compliant meeting environmental safety standards.
Small footprint with 6 mm length and 3.5 mm width optimizes space usage. Ideal for communication, computer, modem, and industrial applications.
This crystal unit supports a wide variety of electronic uses in industrial and commercial equipment by providing a reliable and precise timing source. Its compact size and robust construction make it suitable for high-density assemblies and environments requiring durability and stable performance.
Discover more related components and industrial electronic parts at EnvMart to support your design and manufacturing needs.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 19.6608 MHz, ensuring precise oscillation for electronic applications.
This model operates within a temperature range of -10°C to 60°C, suitable for industrial applications.
The ceramic package measures 6 mm in length, 3.5 mm in width, and has a height of 1.4 mm, making it suitable for high-density PCB layouts.
It has a pin count of 2, which is compatible with various microprocessor circuits.
The series resistance of this crystal unit is 50Ω, which contributes to stable signal quality.
It is packaged in tape and reel, facilitating efficient automated assembly processes.
Yes, this crystal unit is RoHS compliant, ensuring it meets environmental safety standards.
The load capacitance for this model is 18pF, which is typical for many electronic applications.
The package type is surface mount, which allows for compact designs and automated assembly.
This crystal unit is part of the ABM7 series, known for its quality in communication and industrial applications.
This model is suitable for communication equipment, modems, industrial controllers, and other electronic devices requiring precise timing signals.
The country of origin for this crystal unit is India.
