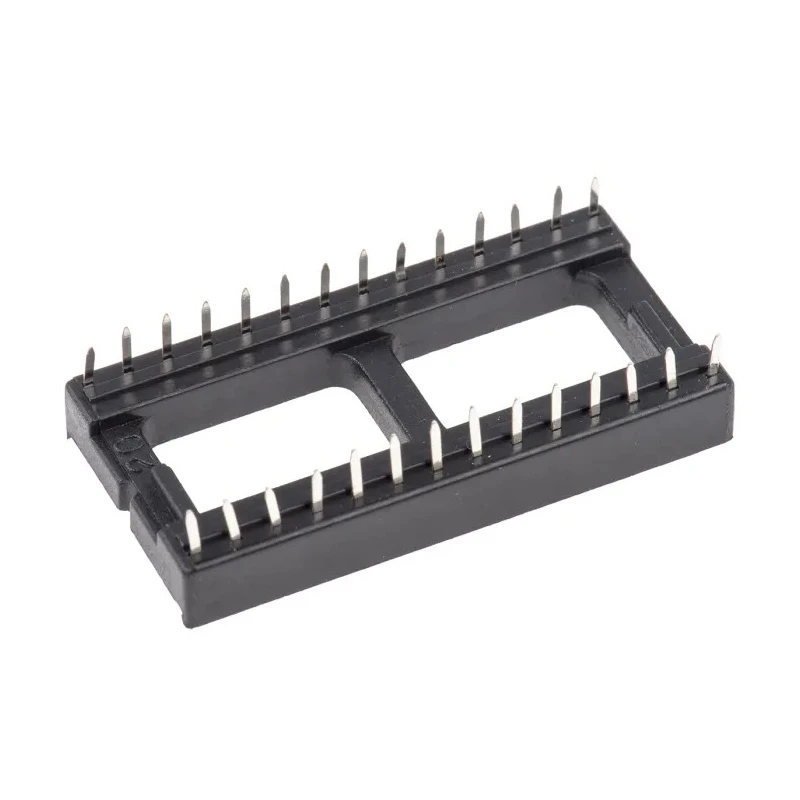

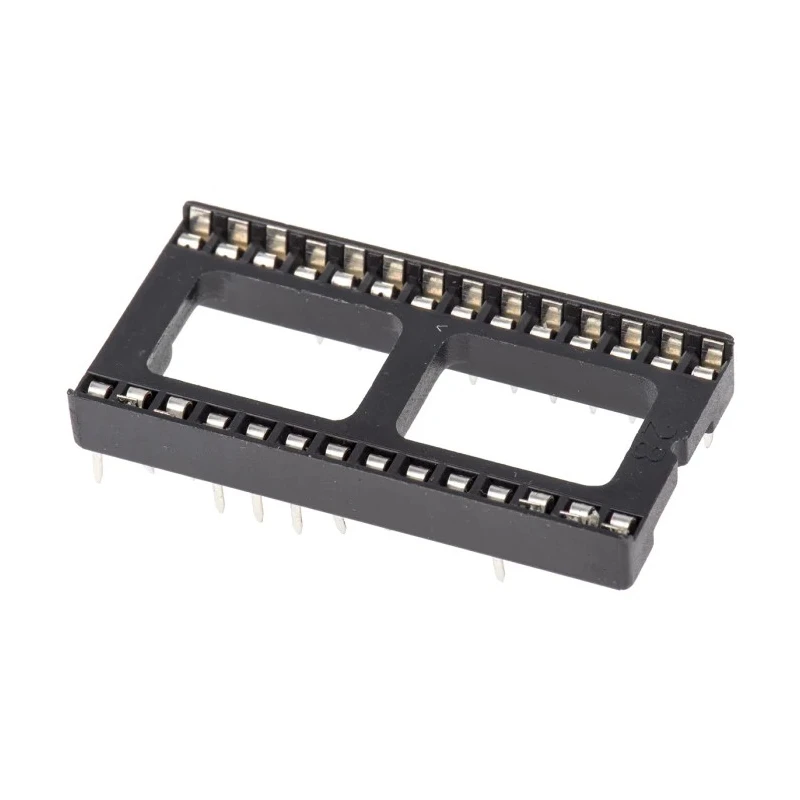

ASSMANN WSW 2.54 mm Pitch Vertical 28 Way Through Hole Stamped Pin Open Frame DIL Socket 1A A 28-LC-TT

ASSMANN WSW A 28-LC-TT is a vertical 28 way open frame DIL socket with a 2.54 mm pitch designed for through-hole mounting and stamped pin contacts rated at 1A current and 60V AC voltage.

This socket is constructed with a black UL94V-0 flame-retardant Polybutylene Terephthalate (PBT) housing that provides mechanical stability and high dielectric strength. The stamped contacts are made of phosphor bronze material and plated with tin to offer excellent conductivity and corrosion resistance.

The vertical orientation of this open frame socket is ideal for space-conscious PCB designs where component height and width are critical. The 2.54 mm pitch matches the industry standard, enabling easy insertion of compatible ICs in a DIP format.

With a row width of 15.24 mm, length of 35.56 mm, width 17.78 mm, and depth of 5.1 mm, the socket supports compact layout requirements. It operates reliably within a temperature range of -55°C to 85°C, suitable for a wide range of industrial, commercial, and laboratory electronic applications.

The termination type is solder, making it ideal for applications requiring strong, permanent PCB connections. Although it holds no specific certifications or approvals, this product is manufactured in Taiwan and is designed for use in electronics manufacturing, repair, and prototyping contexts.

The socket has a vertical orientation with an open frame design. Contacts are stamped and plated with tin for reliable connectivity. Mounted through-hole with precise 2.54 mm pitch suitable for standard PCB layouts. Applicable voltage is 60 V AC with 1 ampere current rating.

The housing is made of Polybutylene Terephthalate (PBT) with UL94V-0 rating for flame resistance. Contact material consists of phosphor bronze ensuring durability and conductivity. Operating temperature ranges from -55° C minimum to 85° C maximum.

Compact dimensions include a row width of 15.24 mm and length of 35.56 mm. Designed for solder termination ensuring secure PCB installation. Manufactured in Taiwan, Province Of China.

This ASSMANN WSW DIL socket is an essential component for electronic circuit boards in industrial automation, telecommunications, test equipment, and other electrical applications requiring stable DIP IC connection.
