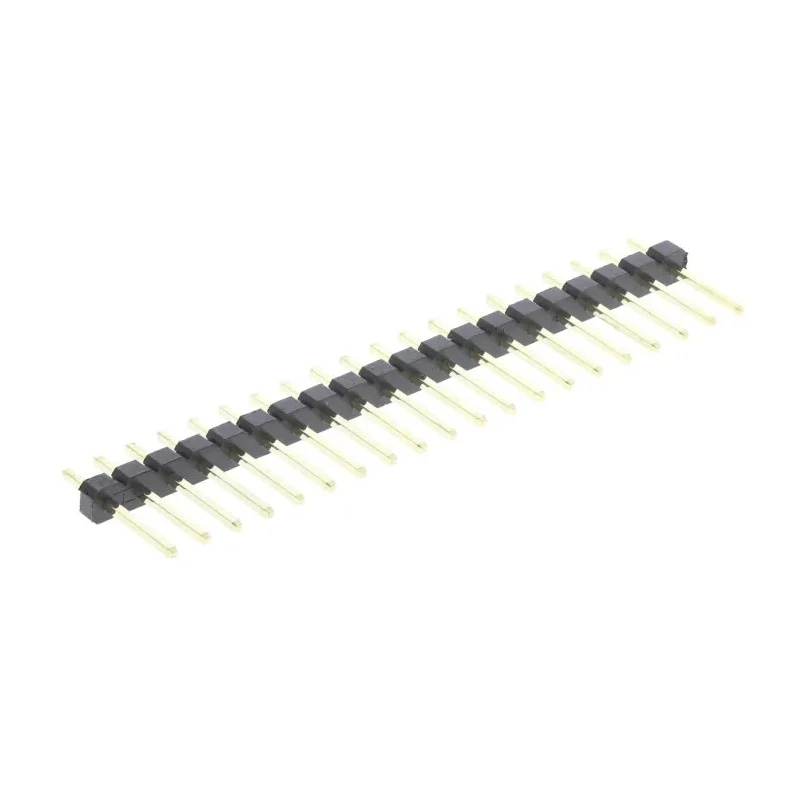

ASSMANN WSW AW Series Straight Through Hole Pin Header, 20 Contact, 2.54 mm Pitch, 1 Row, Unshrouded AW 109/20-T

ASSMANN WSW AW 109/20-T is a high-quality PCB pin header designed for board-to-board connector systems. Featuring 20 male contacts arranged in a single row with a 2.54 mm pitch, this through hole mounted connector offers dependable electrical performance in electronics assemblies.

Its brass contacts are gold plated to ensure optimal conductivity and resistance to corrosion, while the polybutylene terephthalate housing enhances mechanical stability and insulation. The unshrouded design facilitates easy insertion and removal in industrial and commercial applications.

With a current rating of 1.5A and voltage handling capacity up to 250V, the pin header is suitable for a wide range of electronics projects and manufacturing environments. The operating temperature range from -40°C to 105°C further adds to its versatility, accommodating diverse environmental conditions.

The termination method is solder, with a tail pin length of 3 mm enabling robust solder joints on PCBs. The contact mating length of 6.7 mm ensures secure and reliable connections.

Typical use cases include electronic component assembly, manufacturing automation, prototyping, and repair of printed circuit boards in industrial, laboratory, and commercial settings.

Supports a current rating of 1.5A for reliable performance. Constructed with brass contacts featuring gold plating for enhanced conductivity and durability. Housing made of Polybutylene Terephthalate provides robustness in applications.

Designed for through hole mounting, suitable for board-to-board connections. Operating temperature range from -40°C to 105°C ensures versatility in various environments. Contact gender is male with a mating pin length of 6.7 mm for secure connections.

Pitch and row pitch are both 2.54 mm, standard for PCBs. Termination type is solder, facilitating strong solder joints. Voltage rating of 250V matches typical PCB requirements. Unshrouded design allows easy access for inspections and maintenance.

Package contains one ASSMANN WSW AW Series 20-contact straight through hole pin header, model AW 109/20-T. Explore more PCB connector solutions and electronics components at EnvMart.
