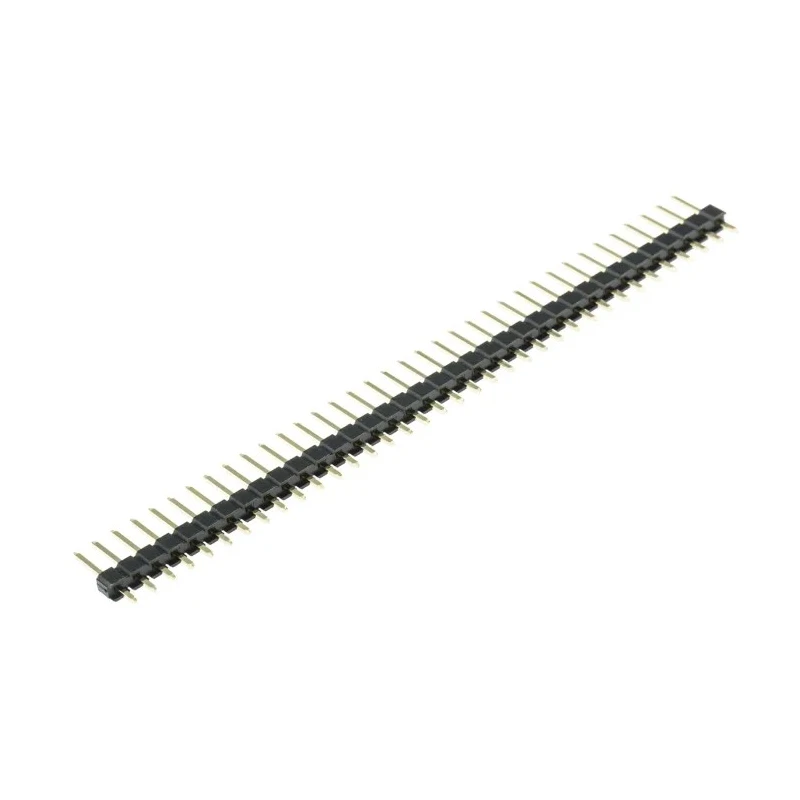

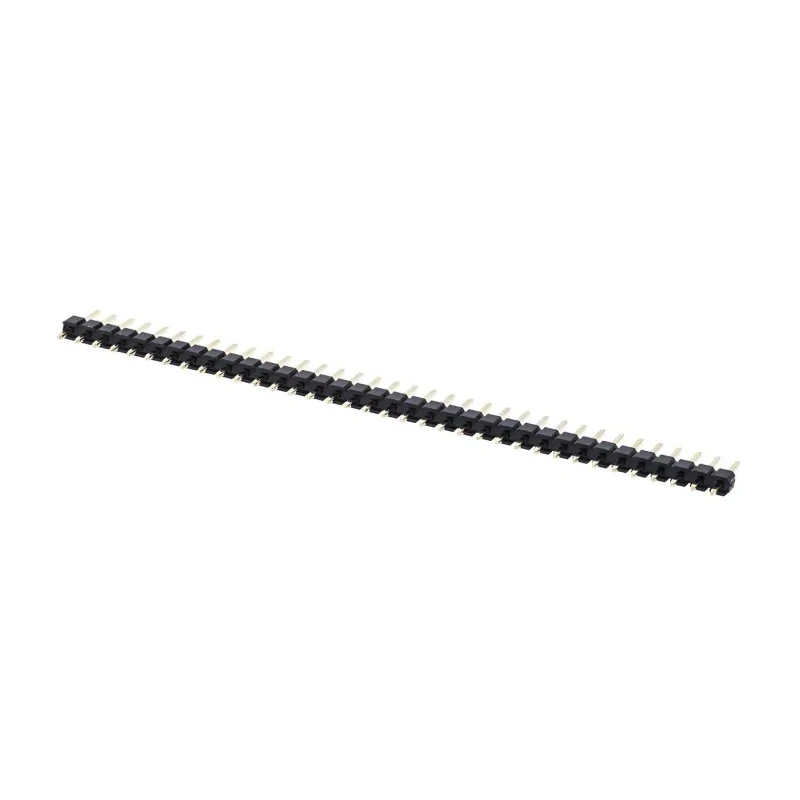

ASSMANN WSW AW140 Series Straight Through Hole Pin Header 36 Contacts 2.54 mm Pitch 1 Row Unshrouded AW140
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AW140 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AW140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.06mm |
Key Features
- The pin header supports a current rating of 3A for efficient signal transmission.
- Constructed with brass contacts plated in gold for superior conductivity and corrosion resistance.
- Housing material is polybutylene terephthalate providing thermal stability and durability.
- Features 3 mm tail pin length and 6.06 mm mating pin length for easy soldering and connection.
- Designed for through hole mounting with straight orientation and unshrouded contacts for versatility.
- Operating voltage up to 250V and temperature range from -40°C to 105°C for robust performance.
- Suitable for various PCB connector applications in industrial and electronic equipment.
Product Description
ASSMANN WSW AW140 Series Straight Through Hole Pin Header AW140 is a precise electronic component designed for robust board-to-board connections in electronics manufacturing. Featuring 36 male contacts spaced at a 2.54 mm pitch and arranged in a single row, this unshrouded connector is built for ease of assembly and reliable signal transmission.
The pins are made from high-quality brass and are plated with gold to ensure excellent conductivity and resistance against corrosion, extending the lifespan and reliability of the component in demanding conditions.
The housing is molded from polybutylene terephthalate, a thermally stable and durable material that withstands operating temperatures from -40°C to 105°C, suitable for harsh electronic environments. The termination type is solder compatible, with tail pin length of 3 mm facilitating secure attachment to printed circuit boards via through hole mounting.
This pin header is rated for a current of 3A and a voltage of up to 250V, making it suitable for medium power PCB applications. The contact design includes a mating pin length of 6.06 mm to ensure a firm mechanical and electrical connection with mating components.
With its straightforward, unshrouded design and straight contact orientation, the AW140 series pin header is ideal for use in industrial, manufacturing, and electronic assembly applications requiring dependable and standardized PCB connectors.
The pin header supports a current rating of 3A for efficient signal transmission. Made with brass contacts plated in gold for superior conductivity and corrosion resistance. Housing composed of polybutylene terephthalate ensuring durability and thermal stability.
Features a 3 mm tail pin length and 6.06 mm mating pin length for soldering ease. Designed for through hole mounting in a straight orientation with unshrouded contacts. Operating voltage up to 250V with temperature tolerance from -40°C to 105°C.
Ideal for reliable board-to-board PCB connections in industrial and electronic applications.
This product is manufactured in China and sold as new condition. It is categorized under PCB Pin Headers, connecting electronic components with precision and durability. Explore our extensive range of connectors and electronic components at EnvMart for professional-grade solutions.
