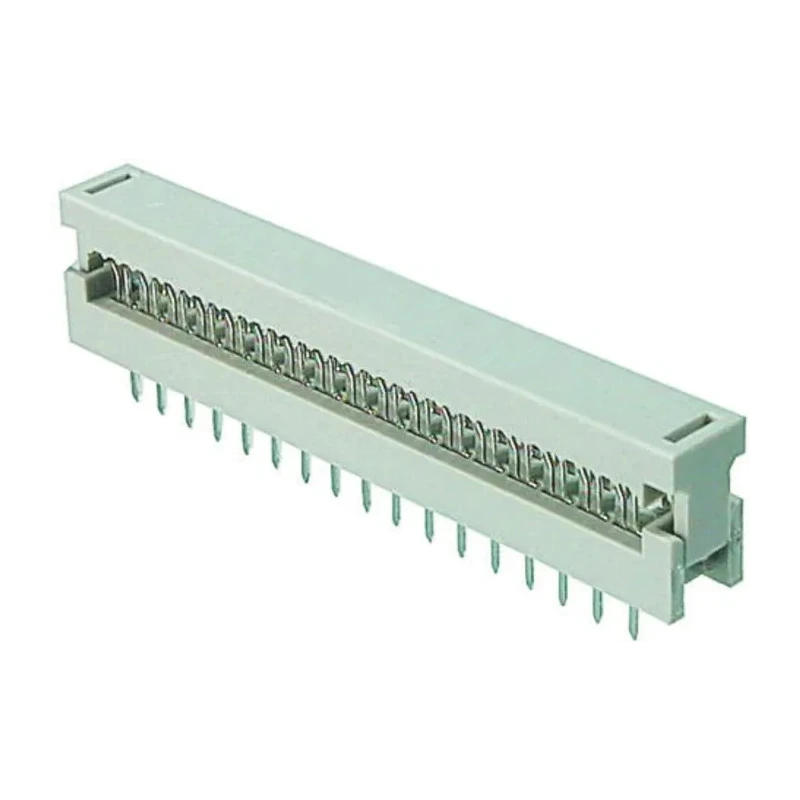

ASSMANN WSW 16-Way IDC Connector Male for Cable, 2 Row, 3A 250V AC AWLP 16/3,2-T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW 16-Way IDC Connector Male for Cable, 2 Row, 3A 250V AC AWLP 16/3,2-T

Name: ASSMANN WSW 16-Way IDC Connector Male for Cable, 2 Row, 3A 250V AC AWLP 16/3,2-T
Brand: ASSMANN WSW
SKU: 208334
Price: 0.8 USD
Availability: InStock



Category IDC Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V ac
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AWLP 16/3,2-T
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AWLP
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Nickel, Tin
Number of Contacts	16
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Unshrouded

Key Features

The connector supports 16 contacts arranged in 2 rows for reliable signal transmission.
Rated for 3A current and 250V AC voltage, suitable for various electronic applications.
Nickel and tin plating on brass contacts ensures enhanced electrical conductivity and corrosion resistance.
The housing is made from durable polybutylene terephthalate to withstand operating temperatures from -40°C up to 105°C.
Designed with a straight orientation and solder termination type for secure cable mounting.
This unshrouded male connector features a standard 2.54mm pitch between contacts.
Ideal for use in electronic components, power connectors, and PCB connection systems.
The connector complies with no specific formal standards or approvals but is built for industrial reliability.

Product Description

ASSMANN WSW AWLP 16/3,2-T 16-Way IDC Connector Male for Cable, 2 Row is a precision-engineered electrical connector designed for reliable cable-to-board connections. This IDC connector features 16 contacts in a 2-row configuration with a 2.54mm pitch, allowing efficient and compact wiring in electronic assemblies.

The contact material is brass with nickel and tin plating, enhancing conductivity and durability. The housing uses polybutylene terephthalate, offering excellent thermal stability from -40°C up to 105°C for demanding operating environments.

The connector supports a continuous current of 3A at 250V AC, making it suitable for a wide range of industrial, manufacturing, and electronic applications requiring secure and stable connections.

With a straight orientation and cable mount type, it simplifies installation by enabling solder termination of cables directly into the connector.

Though it does not carry specific formal approvals, its build quality and materials ensure reliable function in electronic control systems, power distribution interfaces, and PCB connections.

Made in China by ASSMANN WSW, model AWLP 16/3,2-T is a dependable male IDC connector that enhances cable interconnect performance. The connector supports 16 contacts arranged in 2 rows for reliable signal transmission. Rated for 3A current and 250V AC voltage, suitable for various electronic applications.

Nickel and tin plating on brass contacts ensures enhanced electrical conductivity and corrosion resistance. The housing is made from durable polybutylene terephthalate to withstand operating temperatures from -40°C up to 105°C.

Designed with a straight orientation and solder termination type for secure cable mounting. This unshrouded male connector features a standard 2.54mm pitch between contacts. Ideal for use in electronic components, power connectors, and PCB connection systems.
