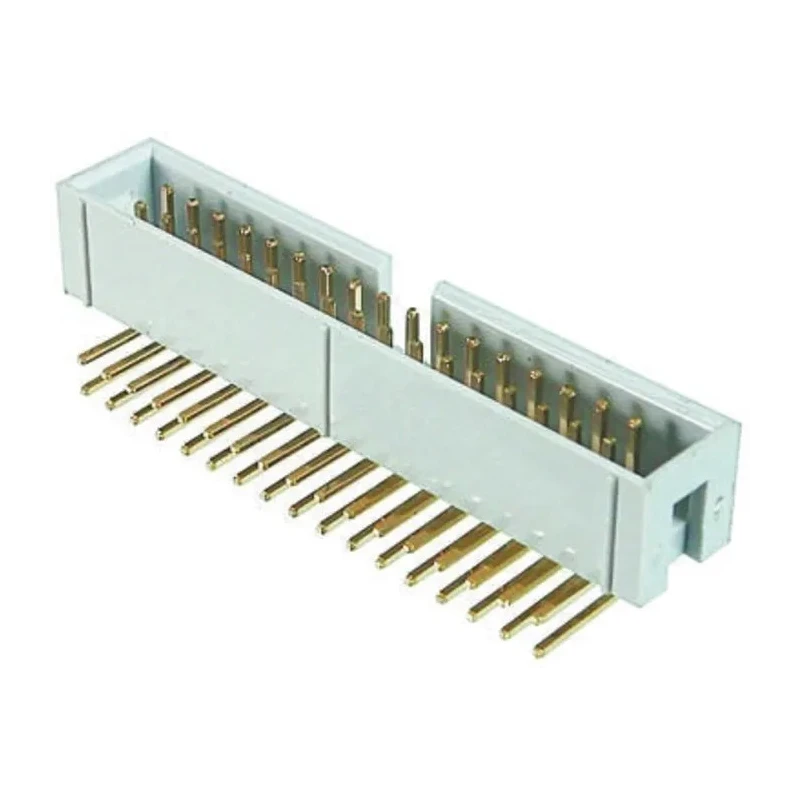

ASSMANN WSW Right Angle Through Hole PCB Header 40 Contacts 2.54 mm Pitch 2 Row Shrouded AWHW 40A-0202-T

ASSMANN WSW AWHW 40A-0202-T is a right angle through hole PCB header designed for high reliability in electronic assemblies. It features 40 male contacts arranged in 2 rows with a 2.54 mm pitch. The component uses a robust polybutylene terephthalate housing material and copper alloy contacts plated with gold to ensure excellent electrical conductivity and corrosion resistance.

This PCB header supports a current of 3A and voltage up to 250V, making it suitable for various industrial, commercial, and electronic manufacturing applications. The shrouded design enhances connection security and prevents accidental disconnections. Intended for wire-to-board connections, it terminates by soldering on PCBs and supports a temperature range from -40°C to 105°C for reliable operation in diverse environments.

The right angle orientation permits compact board layouts while maintaining accessibility. This component conforms to RoHS standards, ensuring it meets environmental and safety regulations.

The header features 2 rows of shrouded contacts ensuring secure connections. Constructed using polybutylene terephthalate housing for durability. Copper alloy contacts are gold plated for excellent conductivity and corrosion resistance.

Designed for solder termination with male contact gender. Supports up to 3A current and 250V voltage rating. Operates reliably in temperature range -40°C to 105°C. Right angle orientation supports compact PCB mounting. Meets RoHS standards ensuring environmental compliance.

This ASSMANN WSW PCB Header is widely used in electronics manufacturing, industrial machinery, automation equipment, and other sectors requiring reliable electrical board connections. It is a suitable choice for circuit board design, prototyping, and mass production environments.
