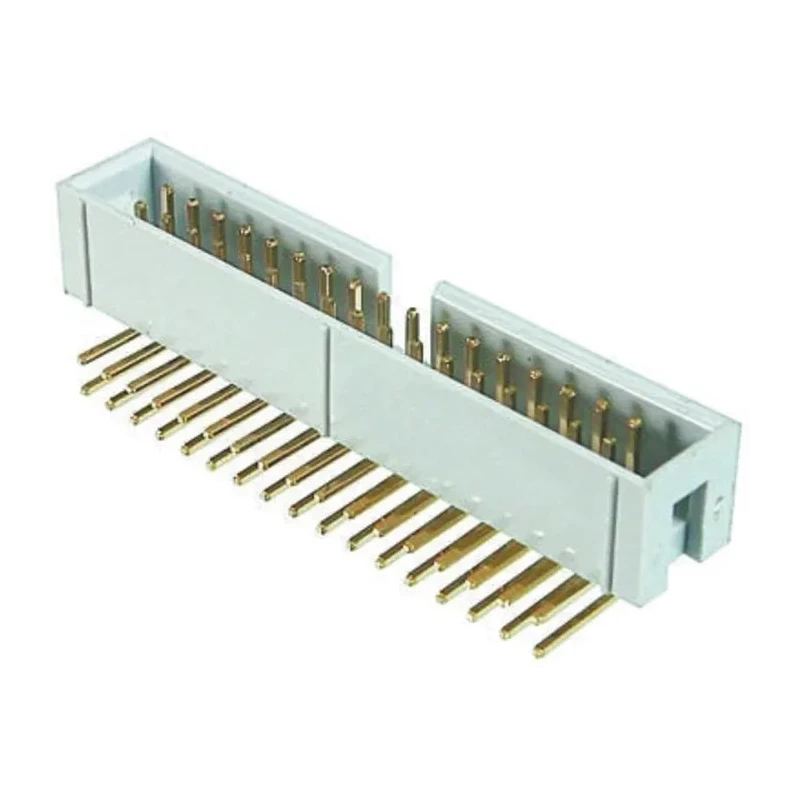

ASSMANN WSW AWHW Series Right Angle Through Hole PCB Header, 40 Contacts, 2.54 mm Pitch, 2 Row, Shrouded AWHW 40A-0202-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | AWHW 40A-0202-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | AWHW |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header has 40 gold-plated copper alloy contacts for excellent conductivity.
- It supports a current rating of 3A and voltage of 250V for robust performance.
- The right angle orientation allows for convenient board mounting and wiring.
- Constructed from durable polybutylene terephthalate housing material for thermal and mechanical stability.
- Designed for through hole mount and wire-to-board connector system.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Features a shrouded design to prevent misalignment and enhance durability.
- Termination type is solder with male contact gender suitable for secure solder connections.
Product Description
ASSMANN WSW AWHW 40A-0202-T is a high-quality right angle through hole PCB header designed for electronic applications requiring reliable board-to-board or wire-to-board connections. With 40 gold-plated copper alloy contacts arranged in 2 rows with a precise 2.54 mm pitch, this connector ensures low resistance and stable electrical performance.
It supports up to 3 amperes of current and voltage up to 250 volts, suitable for a wide range of industrial, electronic, and manufacturing use cases. The header is constructed with a polybutylene terephthalate housing, providing excellent mechanical strength and thermal resistance between -40°C and 105°C operating temperatures.
The right angle orientation and shrouded design facilitate easy mounting and robust mechanical connection, preventing damage and misalignment. Its solder termination and male contact gender allow secure soldering to printed circuit boards, optimizing signal integrity and durability.
This PCB header is ideal for industrial electronics assembly, instrumentation, automation control systems, and commercial electronics where durable and precise connectors are needed. It complies with RoHS standards, ensuring environmentally compliant manufacturing.
40 gold-plated copper alloy contacts for reliable conductivity. 3A current rating and 250V voltage support for robust electrical performance. Right angle, shrouded through hole mount design for mechanical stability. Polybutylene terephthalate housing offers thermal and mechanical durability.
Wide operating temperature range from -40°C to 105°C. Solder termination with male contact gender ensures secure board attachment. Suitable for industrial, laboratory, HVAC, manufacturing, and electronic assembly applications.
Explore more PCB Headers and connectors with ASSMANN WSW products on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A and a voltage rating of 250V, making it suitable for various electronic applications.
This PCB header features a pitch of 2.54 mm and has 40 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, which provides thermal and mechanical stability.
It utilizes a solder termination type, which ensures secure solder connections to printed circuit boards.
It operates reliably within a temperature range of -40°C to 105°C.
Yes, it complies with RoHS standards, ensuring environmentally compliant manufacturing.
This model features a right angle orientation, facilitating convenient board mounting and wiring.
It is designed for a wire-to-board connector system, suitable for various electronic assembly applications.
The contacts are made from gold-plated copper alloy, which ensures excellent conductivity.
The contacts are male, allowing for secure solder connections.
Yes, it has a shrouded design that helps prevent misalignment and enhances durability during use.
This model has 2 rows of contacts, providing a compact connection solution.
